Imagine that your demolition projects can be completed faster, while significantly reducing operating costs and achieving effective reuse of waste materials. The YG excavator crusher has completely changed the way you deal with concrete waste. You no longer need to worry about tedious secondary crushing and steel bar separation. YG excavator crushing tong can complete these tasks in one go, significantly shortening the construction period and saving a lot of labor and transportation costs. More importantly, it transforms your existing excavator into a multi-functional demolition and recycling center, thereby maximizing the return on your equipment investment. For contractors pursuing efficiency, cost-effectiveness, and sustainable development, the YG excavator crusher is undoubtedly the key to improving competitiveness. If you want to have a greater advantage to complete the project quickly, please contact us now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
Excavator Pulverizer Parameter
| Model | Unit | YG400 | YG600 | YG800 | YG1000 | YG1700 |
| Total length | mm | 1642 | 1895 | 2168 | 2218 | 3150 |
| Total width | mm | 1006 | 1275 | 1376 | 1598 | 2100 |
| Blade length | mm | 120 | 150 | 180 | 200 | 240 |
| Max Opening Height | mm | 587 | 718 | 890 | 1029 | 1400 |
| Upper Jaw Width | mm | 215 | 280 | 290 | 380 | 400 |
| Lower Jaw Width | mm | 458 | 586 | 588 | 720 | 812 |
| Max Shear Force | kn | 380 | 650 | 1650 | 2250 | 2503 |
| Working Pressure | Bar | 280 | 320 | 320 | 320 | 320 |
| Weight | kg | 670 | 1350 | 1750 | 2750 | 4709 |
| For Excavator Weight | ton | 6-9 | 10-15 | 18-26 | 26-30 | 50-80 |
Excavator Pulverizer Composition

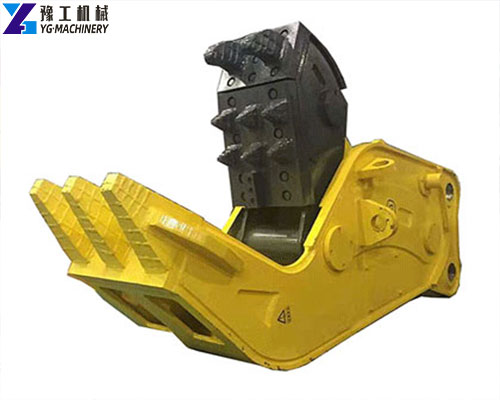

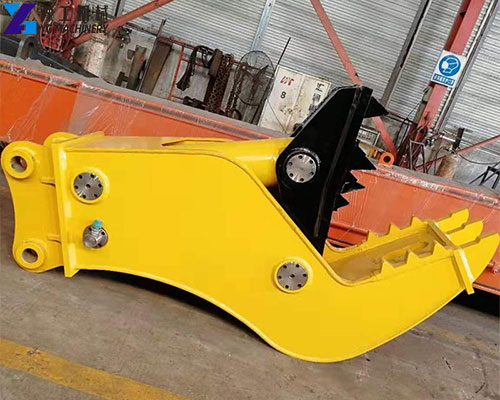

YG excavator pulverizer is a powerful attachment designed for excavators, which converts the power of the excavator into amazing crushing force. Its appearance design is sturdy and is usually cast from high-strength wear-resistant steel to withstand huge impacts and wear. The main structure includes:
- Pliers: This is the main part of the crusher, shaped like a huge pair of scissors or pliers, driven to open and close by a hydraulic cylinder. The jaws are usually designed with sharp shear teeth and crushing plates for shearing steel bars and crushing concrete.
- Hydraulic cylinder: As the driving core, high-pressure hydraulic oil enters the hydraulic cylinder through the hydraulic system of the excavator, generating a strong thrust or pulling force, driving the tongs to open and close, thereby generating huge crushing and shearing forces.
- Swivel motor (optional): Some models will integrate a 360-degree hydraulic swivel motor, allowing the operator to more flexibly adjust the angle of the crusher to meet the demolition needs in different directions.
- Connecting pin and mounting plate: Used to firmly connect the crusher to the end of the excavator’s bucket arm to ensure a firm and reliable connection during operation.
- Wear-resistant parts: The key parts of the jaws and crushing plates are made of special high-strength alloy steel or surfacing technology to resist the wear caused by long-term operation.
The design of the YG excavator pulverizer takes into account practicality and durability, ensuring stable and efficient operation in the harshest demolition environment. When an excavator is equipped with crushing tongs, it becomes multi-functional demolition and processing equipment.
Choosing YG Excavator Crusher Will Bring Benefits to Your Demolition and Recycling Projects
- Significantly improve demolition efficiency: It can quickly crush concrete and separate steel bars, greatly shorten the operation time, and thus improve the overall project progress.
- Reduced operating costs: Crushing and steel separation are completed in one go, reducing the need for multiple processes and additional equipment, saving labor, fuel, and transportation costs.
- Increase the recycling value of waste materials: Effective steel bar separation makes concrete waste purer and easier to recycle, thereby increasing the market value of recycled materials. This makes it an ideal concrete crusher.
- Higher safety: The operator is remotely controlled in the cab, away from the crushing area, avoiding the direct harm of splashes and noise, and greatly improving construction safety.
- Environmentally friendly: The noise and dust generated during the crushing process are relatively small, reducing the impact on the surrounding environment and meeting environmental protection requirements.
- Multifunctional equipment: Convert the existing excavator into an efficient demolition and recycling equipment with a high return on investment.
Case: YG Excavator Pulverizers Used in Sydney Port Terminal Renovation, Australia
- Customer Background: A large Australian harbor construction and maintenance company was responsible for upgrading and renovating the Sydney Port Terminal, including demolishing some old concrete structures.
- Product Used: YG Excavator Crushers YG800.
- Problem Solved: The terminal structure is strong and close to the water, so a crushing device that can work efficiently and stably is needed. At the same time, due to site restrictions, the equipment must be flexible to operate.
- Results: The powerful crushing force and durability of the YG Excavator Crushers were fully demonstrated in the port project. It easily copes with the crushing task of high-strength concrete and can operate stably even in humid and salt spray environments. It is particularly worth mentioning that when the excavator is equipped with the crusher, its operational flexibility and high efficiency enable the port renovation work to proceed quickly.
- Customer Comment: “YG’s excavator crusher is a great helper for our terminal renovation. It performs very well, is efficient and extremely reliable, and has no pressure even when facing the hardest concrete structures. We recommend it to all teams that need a powerful demolition tool.” – Mark Johnson, Operations Director
Excavator Pulverizer Price and Purchase Information
YG excavator pulverizer can not only significantly improve your project efficiency and reduce operating costs, but also increase the value of waste recycling and help you achieve sustainable development goals. The price of a YG excavator crushing tong varies depending on the model, specification, applicable excavator tonnage, and whether it includes functions such as 360-degree rotation. The main factors affecting the price include:
- Size and weight: Crushers suitable for large excavators are usually heavier, stronger, and more expensive.
- Functional configuration: whether it has advanced functions such as 360-degree rotation and quick-change joints will affect the price.
- Material and process: products with higher strength wear-resistant steel or special manufacturing processes will have a relatively higher cost.
As a factory-direct sales company, YG is committed to providing you with the most competitive prices and ensuring high-quality products and perfect after-sales service. We have a professional technical team that can provide customized solutions and detailed quotations according to your specific engineering needs. You are welcome to contact us for consultation at any time.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
