Automatic Sand Blasting Machine
The automatic sand blasting machine also included rotary table sandblasting machines, also called turntable sandblasting machines, gap-type automatic sandblasting machines, and continuous automatic sandblasting machines. Turntable automatic sandblasting machine is an efficient surface treatment process equipment. Its principle is mainly to use the impact of high-speed sand flow to clean and roughen the surface of the workpiece so that the surface of the workpiece can obtain a certain degree of cleanliness and roughness. It is a high-capacity, high-efficiency machine. Also, we have portable sand blasting machines, sandblasting rooms, sandblasting chambers, pass-through shot blasting machines, etc. Want to know more about machine details?【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

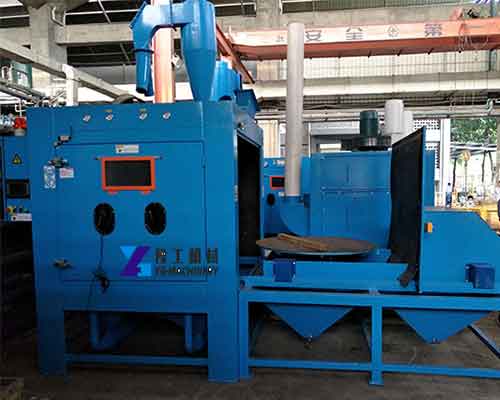

Turntable Automatic Sandblasting Machine Working Principle:
There are 8 small turntables on the big turntable. The big turntable is driven by a separate motor. The 8 small turntables are respectively driven by a single motor. The speed can be adjusted quickly. There are 12 guns, which are divided into two groups, one for each of the six guns. Clean 2 hot plates at the same time. After blasting, it automatically rotates to the blow-out area. After the blasting is completed, it automatically rotates out of the working chamber, and the blasting worker removes the processed heating plate. The spray gun group adopts a fixed rocking structure, which can adjust the spray distance, the swing speed, and the sand amount by 360 degrees. It can also open the number of sandblasting guns according to different workpiece selections. The large turntable adopts the proximity switch to control the positioning, and the positioning is accurate. At 90°, each station cleans up one workpiece and can work continuously for a long time.
Automatic Sandblasting Machine Features:
Can remove surface dirt, scratches, rust, and other debris, to achieve a matte state, the use of surface brightness is even.
Fully automated, single-person sandblasting operation, high production efficiency.
Sand can be reused, and comes with a sand recycling system.
Automatic dust removal system, fully sealed operation, and environmental protection meet national and international standards.

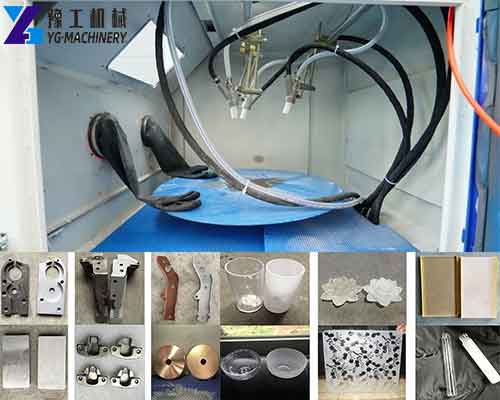

The turntable automatic sandblasting machine is suitable for mass production of sandblasting on the inner and outer surfaces of discs, cylinders, and square workpieces, such as handicrafts, glass lampshades, non-stick pans, flashlights, baking pans, stainless steel wash basins, communication equipment, and other workpieces.
