The automatic shot blasting machine consists of a mobile trolley ( remote control ), a machine, a shot blasting chamber, a storage chamber, a sand separator, a two-stage dust collector system, dust, a pneumatic device, and an electric control device. Buy this machine from the shot blasting machine manufacturer – YG Machinery. In addition, we also have pass-through shot blasting machines, sand blasting chambers, and sandblasting rooms, these can be used for de-rusting. Of course, we have other road construction machinery, road marking machines, road rollers, asphalt crack sealing machines, floor scarifiers, floor grinders, concrete curb and gutter machines, electric road sweepers, etc. Contact now!【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800

Application of Concrete Shot Blasting Machine:

The collecting and separating device of the road shot blasting equipment has a simple structure and a good separation effect, thereby ensuring good throwing quality. Increased the life of consumables. The road shot blasting machine expands the application of the shot blasting process from the surface treatment of the parts to various fields such as road maintenance and hull de-rusting. The structure of the floor shot blaster, reasonable selection of various parameters, the laboratory preliminary verification, the equipment can smoothly recover the projectile for circulation, the separation effect between the projectile and the magazine is better, the part that is thrown is uniform, and the throwing effect is good. The machine can meet the actual needs and is suitable for the cleaning of the machinery industry and roads and airport pavements.

Get a Free Quote

Specifications of Floor Shot Blaster:

Model YG-270(Single) YG550/600(Double) YG-850(Double)
Shot Blasting Wheel Diameter 200mm
Working width 270 mm 550/600 mm 800 mm
Walking speed 0.5~20 m/min 0.5~33 m/min
Concrete surface cleaning efficiency ≥180 m2/h ≥400 m2/h ≥600 m2/h
Steel plate surface cleaning efficiency 15-25 m2/h 75-100 m2/h 100-160 m2/h
Dust connection pipe diameter 120 mm



150 mm
Suggest the diameter of steel balls 1.2-1.5 mm 1.5-1.8 mm
Steel pill consumption 10 g/m2
Supporting dust collector Seven-core automatic backflush vacuum cleaner Eight-core automatic backflush vacuum cleaner
Shot wheel motor Power consumption 11 kW 11*2 kW 15*2 kW
Input Current ≤ 15 A ≤ 22*2 A ≤ 28*2 A
Walking motor Power consumption 0.5 kW 1.5 kW
Input Current 1 A 3 A
Size (mm) 1000*300*1100 1950*720/775*1400 1950*1020*1550
Weight 150 kg 570 kg 700kg
Power connection requirements 400V, 50Hz, 100A, CEE socket

Get a Free Quote

Good Price Floor Shot Blaster
Good Price Floor Shot Blaster

Concrete Shot Blasting Machine Working Principle
Concrete Shot Blasting Machine Working Principle

Precautions of Concrete Shot Blasting Machine:

  1. Pay attention to waterproofing. Because the machine adopts the principle of machinery, the power of this principle is not only some electronic equipment, but the most important one is the motor. Therefore, it is necessary to pay attention to waterproofing when it rains.
  2. Pay attention to lubrication. To make the equipment more smooth, it is recommended to apply lubricating oil to the mechanical connection of the equipment and the motor at intervals.
  3. Pay attention to maintenance. Any product needs maintenance. Just like a car, it needs regular inspection and maintenance. The road shot blasting machine is no exception. Regular maintenance of the road shot blasting machine can extend the life of the equipment.
  4. Pay attention to the appropriate. Because the amount of work on the road is generally large, many companies are working 24 hours a day, which leads to the machine keeping running, it is recommended to stop the equipment properly when the work is over.

9 Advantages of Portable Floor Shot Blaster:

  1. Operation and preparation are simple, clean up at any time, and evacuate at any time.
  2. Adopt frequency control to ensure the accurate realization of various functions.
  3. According to the different conditions of the road surface, the cleaning speed, the supply amount of the steel pill, the pulse backflushing period, the cleaning interval of the dust filter cartridge, etc. can be set, and the adjustment of the parameters can be adjusted to achieve the desired cleaning effect.
  4. The working width is wide and the efficiency is high.
  5. The whole construction process is dust-free and pollution-free, which is conducive to environmental protection and the health of construction workers.
  6. The pavement structure is not damaged during construction.
  7. The pulse automatically blows back the dust, which can achieve continuous operation.
  8. Steel shots are automatically circulated inside the equipment, and the consumption is very low.
  9. The structure of the whole machine is reasonable, the disassembly is quick, and it is convenient to repair and replace worn parts.

How Mobile Floor Shot Blaster Works:

Working Conditions:

  1. Working surface unevenness <20mm; No water and relatively dry; Slope <25º.
  2. Ambient temperature: -20℃~60℃. The steel plate surface temperature is greater than 3℃.
  3. Humidity:
  • The relative humidity of the steel surface when shot blasting is not more than 90%.
  • The relative humidity of concrete shot blasting is not more than 95%.

Get a Free Quote

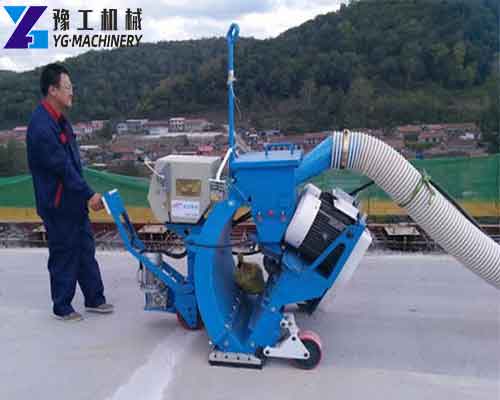

Application of YG Shot Blasting Machine
Application of YG Shot Blasting Machine

Automatic Shot Blasting Machine for Sale
Automatic Shot Blasting Machine for Sale

Shot Blasting Machine for Sale in YG Machinery Manufacturer:

The shot blasting machine of YG Machinery has always been the leading level in the industry. Among its peers, YG Machinery’s equipment has been committed to serving the best customers with the best technology. Our equipment is very efficient and can work with very little labor. This has reduced significant expenditures. In addition, we also have sandblasting rooms, through-type shot blasting machines, and portable sandblasting machines for rust removal. In addition, there are road marking machines, road rollers, asphalt crack filling machines, floor scarifier machines, floor grinders, curb and gutter machines, electric road sweepers, and so on. Don’t hesitate to get in touch with us.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
