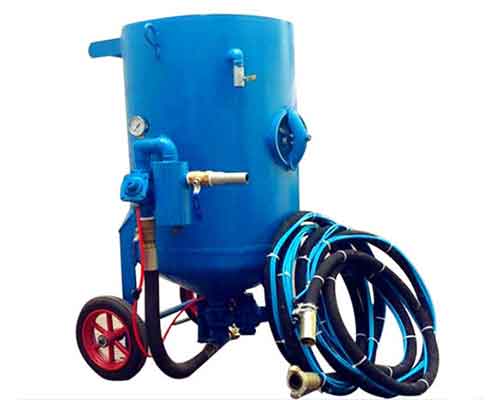

Buy sand blasting machine for sale, sandblasters for sale, auto sandblasting machines, industrial sandblasting machines, and portable sandblaster machines with high quality at a much lower price in YG Machinery now. The equipment can be both wet sandblasting machines and dry sandblasters. When you purchase, you need to tell us which model you need and we will equip you with the accessories for the model. Of course, the sandblasting machine for sale in our company is different in diameter, height, volume, and work efficiency. Refer to the major parameters table below to select the size you need now. Or if you have any questions, please feel free to consult us, we have been looking forward to serving you.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
Sand Blasting Machine Main Parameters:
Machine models | YG400 | YG500 | YG600 | YG700 | YG800 | YG900 | YG1000 |
Diameters(mm) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
Height(mm) | 1150 | 1150 | 1150 | 1250 | 1700 | 2000 | 2000 |
Volume(cubic meter) | 0.26 | 0.26 | 0.26 | 0.3 | 0.6 | 0.8 | 1 |
Pressure(Mpa) |
0.4-8 |
||||||
Air consumption(cubic meter per minute) |
3 |
What is Sand Blasting Machine?
A portable sandblasting machine is a kind of rust removal equipment that enables various kinds of abrasive materials to be sprayed onto the metal surface by air pressure. The blasting sand sprayed on the metal surface grind on the metal surface removes the impurities and oxide from the surface and increases the surface area which can improve the surface adhesion of the coating and the quality of the coating. The sandblasting material can be river sand, yellow sand, steel shot, and sand, cut pill, brown corundum, emery, and quartz.
How Sand Blasting Machine Works
The jet technology can be divided into three types according to the injection way, the press-in type, suction type, and centrifugal type.
Press-in dry sandblasting machine. It is driven by compressed air, and the working pressure established in the pressure tank by compressed air will push the abrasive material into the sanding pipe through the sanding valve and then injection through the nozzle to the processed surface to achieve the expected processing. Compressed air is both the power of supplying blasting sand and the acceleration power of the jet in this model.
The operation principles of the suction-type sandblaster are very similar to that of the press-in sandblasting machine. The difference is that the purpose of surface machining is mainly achieved by the negative pressure created by the high-speed motion of the airflow in the spray gun.
Features of Sand Blasting Machine for Sale in YG Machinery
- Simple operation. Ordinary workers can operate the machine after half an hour’s training, and an advanced automatic control system can prevent workers from operating by mistake.
- High production efficiency. A sandblasting machine can spray 5 to 30 square meters of metal surface per hour depending on its different sizes. The daily workload is equivalent to 50 to 80 skilled workers’ sandblasting workload.
- High sandblasting accuracy. It can remove very small and hidden flanges and isn’t subject to object shape restrictions. The qualification rate is high and the sandblasting quality is stable.
- Strong practicability. It can remove the edge of small rubber and plastic alloy products, brittle plastic products and magnesium alloy, zinc alloy, and aluminum alloy castings with complex structures and any shape.
- Suppose you use a sandblasting machine to remove rust. The surface won’t be damaged. At the same time, the product’s appearance will become more beautiful and the service life will be increased.
Sand Blasting Machine Parts
A sandblasting machine usually consists of a sandblast pipe, gun holder, sandblast gun, pressure gauge, air intake ball valve, air intake port, sand valve handle, observation port, quick joint, filter, etc… The pressure gauge is mainly used to control the pressure in the pipeline to ensure the strength of sandblasting. The larger the pressure value is, the higher the speed of jet flow and the efficiency of sandblasting. Adjusting the connection time of the sand valve and air outlet valve can control sanding and blowing time to ensure the effect of sandblasting.
Mobile Sand Blasting Machine Uses and Application
Sandblasting cleaning is a very widely used process in mechanical manufacturing. The parts that need forging, casting, heat treatment, and surface treatment should be cleaned by a sandblaster to remove the oxide, sand, old coating, molten salt heat, rust, etc.
Sandblasting technology is widely used in the fields of ships, bridges, water conservancy projects, mining machinery manufacturing, petroleum, chemical metallurgy, port construction, light industry, aircraft manufacturing, locomotives, and vehicles, instrumentation, precision manufacturing, and electronic industry. It is an ideal method to clean large areas of the metal surface before coating, which can enhance, polish, and sculpt non-coated characters.
Sand Blasting Machine Manufacturers – YG Machinery
As a sandblasting machine manufacturer with many years of production experience, we can provide our customers with the best machines and services. The sandblasting technology of our factory was introduced in Japan. Then our engineers designed a series of sandblasting machines combined with our national conditions and international standard. Compared with other similar equipment, the sandblaster for sale in our factory can increase the working efficiency by 30 percent, abrasive materials, and energy loss reduction by 20 percent. In addition, our machines are absolutely safe, reliable, simple in structure, and easy to operate, and maintain. You can also buy a floor shot blaster which is similar to sandblasting equipment but mainly used for road construction and some other popular machinery, such as mortar sprayers, water well drilling machines, wire saw machines, road roller machines, road marking machines, curb and gutter machines, sand blasting rooms, micro excavators, mini concrete pumps, auto brick making machines, electric sweeper machines, and so on. If you are interested in our machinery, please don’t hesitate to send us an email for more details right away. 【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
