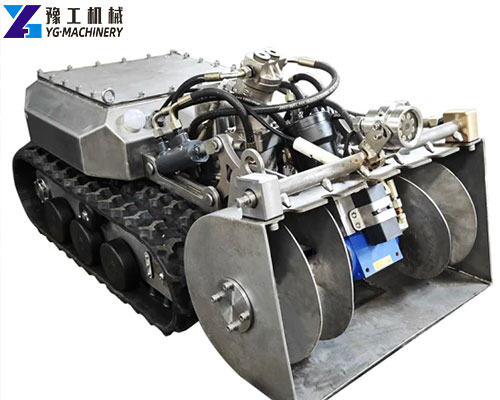

Dredging Robot

dredging robot
dredging robot

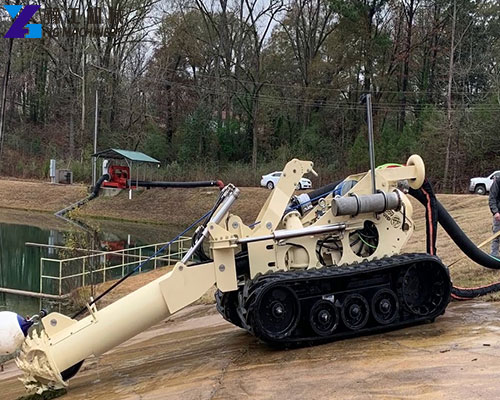

sand dredging machine
sand dredging machine

Underwater dredging is an important part of port maintenance, river management, reservoir restoration, and other projects. Traditional manual dredging methods are inefficient, costly, and have many safety hazards. To solve these problems, YG Company innovatively developed a dredging robot. This intelligent dredging robot has become an ideal choice for modern underwater dredging projects with its efficient, precise, and safe operation capabilities. If you want to know more details, contact us now!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

YG Hot-sale Dredging Robot Parameters:

Model YG-500 YG-600 YG-700 YG-800 YG-900 YG-1200
Robot dimensions 1500*500*650mm 1500*600*650mm 1600*700*650mm 1600*850*700mm 1650*960*750mm 1900*1200*750mm
Dredging width 500mm 600mm 700mm 800mm 900mm 1200mm
Track travel speed 3-15m/s 3-15m/s 3-15m/s 3-15m/s 3-15m/s 3-15m/s
Robot weight 320kg 350kg 380kg 400kg 420kg 500kg
Pump output diameter 3inch 3inch 4inch 4inch 4inch 4inch
Pump flow rate(cubic meters/ hour) 100 m³ 100m³ 200m³ 200m³ 200m³ 200m³
Hydraulic station dimensions(mm) 2200*1200*1700 2200*1200*1700 2200*1200*1700 2200*1200*1700 2200*1200*1700 2120*1240*1200
Main motor power 22kw 22kw 30kw 30kw 30kw 45kw
Hydraulic system pressure 0-16Mpa
Particle size 15mm 15mm 38mm 38mm 38mm 60mm
Reeling system speed 0-10r/min
Hydraulic hoses 50m (Standard configuration)
Control system Wireless remote control
Lighting system Underwater LED lights *2

Get a Free Quote

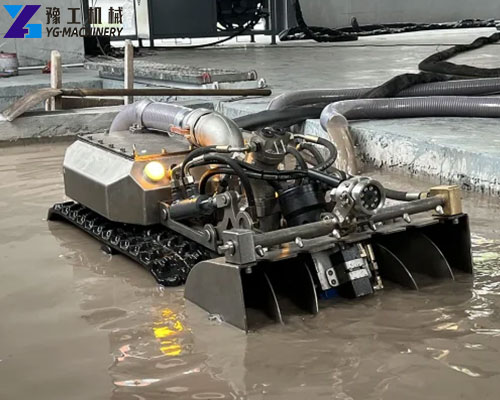

cutter suction dredger for sale
cutter suction dredger for sale

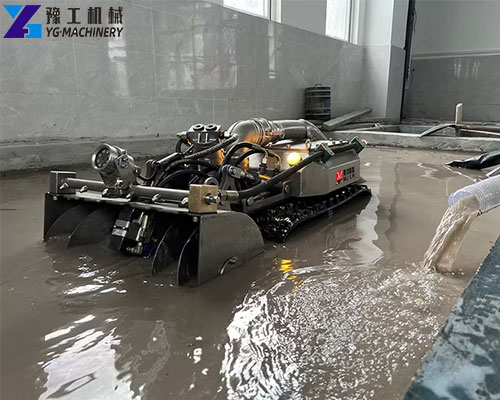

floating gold dredge for sale
floating gold dredge for sale

Dredging Robot Features & Specifications:

  1. Efficient dredging capability: Equipped with a high-power suction pump and a variety of optional dredging tools, the dredging robot can quickly and efficiently remove underwater silt, sediments, and various debris, greatly improving dredging efficiency.
  2. Precise operation control: Equipped with high-precision sensors and intelligent control systems, the dredging robot can achieve centimeter-level precise positioning and path planning to ensure the accuracy and coverage of dredging operations.
  3. All-round underwater mobility: Adopting a multi-thruster vector propulsion system, the dredging robot has flexible underwater movement capabilities, can move and turn in all directions in complex water environments, and adapt to various operational needs.
  4. Remote visual operation: Equipped with a high-definition underwater camera and a remote monitoring system, the operator can monitor the underwater operation screen in real-time and clearly from the shore, and perform remote and precise control to reduce the difficulty and risk of operation.
  5. Intelligent automatic operation: The dredging robot supports the preset program automatic operation mode, and can autonomously complete the dredging task according to the preset path and parameters, greatly reducing manual intervention and improving operation efficiency and automation level.
  6. Modular and fast deployment: The dredging robot adopts a modular design, and each component is easy to disassemble and assemble, which is convenient for transportation, maintenance, and rapid deployment, shortening the operation preparation time.
  7. High safety and reliability: The dredging robot is remotely operated and does not require personnel to work underwater, effectively avoiding the safety risks of diving operations. At the same time, the robot itself has multiple safety protection mechanisms to ensure the safety of equipment and operations.

Get a Free Quote

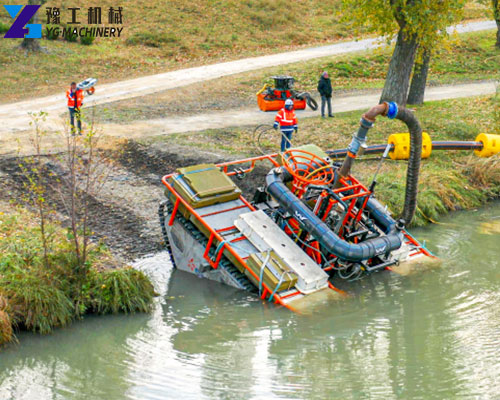

dredging equipment for sale
dredging equipment for sale

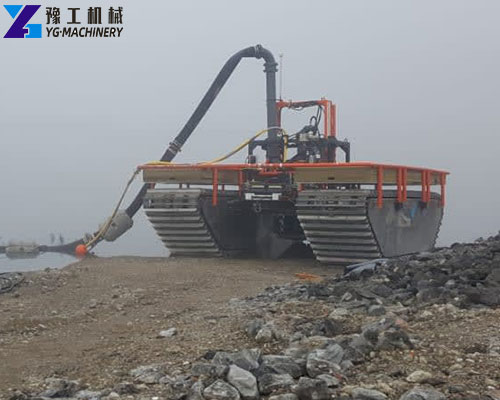

small dredge for sale
small dredge for sale

Main Application Areas of Dredging Robots:

  1. Port channel maintenance: ensures smooth waterway flow and improves port efficiency and safety. Advantages: narrow environment operation, precise dredging, and safe and efficient.
  2. Inland river management: improves water quality, restores ecology, and improves the urban water environment. Advantages: precise environmental protection, reduced damage, and improved water quality.
  3. Lake reservoir dredging: Restores reservoir capacity, prevents eutrophication, and ensures water resource utilization. Advantages: deep water and large-scale operation, efficient dredging, and improved water quality.
  4. Industrial and municipal sewage treatment: cleans up sedimentation tank sludge, improves treatment efficiency, and improves the working environment. Advantages: closed environment operation, efficient cleaning, and ensured worker safety.
  5. Water conservancy project construction and maintenance: underwater earthwork excavation, pipeline maintenance, and improved project efficiency and safety. Advantages: precise underwater operation, replacement of labor, and project safety.
  6. Emergency rescue and post-disaster reconstruction: post-disaster water cleaning, rapid dredging, and support for post-disaster reconstruction. Advantages: harsh environment operation, rapid deployment, and strong emergency response capabilities.

Dredging Robot Manufacturer – YG Machinery

YG’s dredging robots have been loved by many customers for their powerful suction, high-speed operation, precise maneuverability, and convenience of remote control. Whether it is maintaining waterways, expanding ports, or cleaning industrial ponds, our robots can complete the task perfectly. YG’s dredging robots, factory direct sales, and first-class after-sales service lay the foundation for customer trust. Don’t worry about the low efficiency of your project; contact us now for more information.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
