Hanger Type Shot Blasting Machine

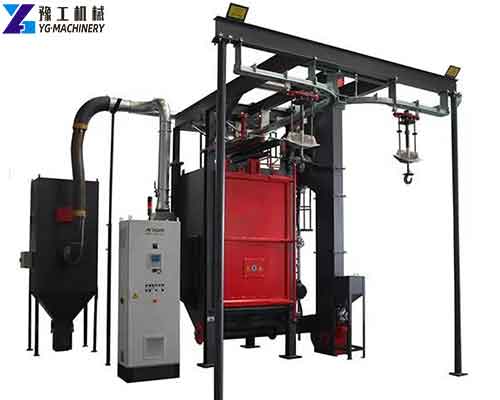

Hanger Type Shot Blasting Machine
Hanger Type Shot Blasting Machine

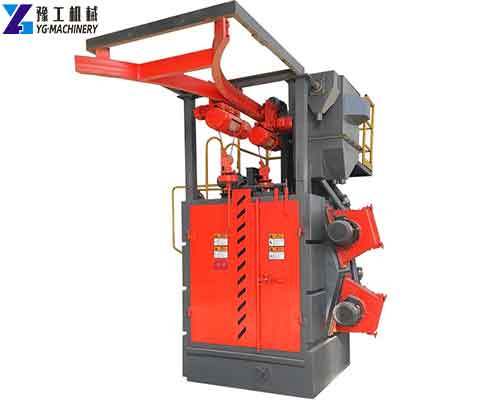

Spinner Hanger Blast Machine
Spinner Hanger Blast Machine

The hanger type shot blasting machine is a hook-type cleaning equipment, which consists of a shot-blasting chamber, a hoist, a separator, a screw conveyor, two shot-blasting machine assemblies, a projectile control system, a hook walking track, and a hook system. Rotation device, foundation, dust removal system, electrical control parts, etc. Use the shot blaster to throw the projectile to the surface of the workpiece, so that the surface of the workpiece reaches a certain roughness, making the workpiece beautiful, or changing the compressive stress of the workpiece to improve the service life. This machine is widely used in surface cleaning or strengthening treatment of medium and small castings and forgings in foundry, construction, chemical industry, electrical machinery, machine tools, and other industries. Want to know more? Contact us now!【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800

Get a Free Quote

Hanger Type Shot Blasting Machine Technical Parameter

Item YG376 YG376B YG378 YG3710 YG3720 YG3730 YG3750 YG37100
Maximum weight of cleaning(KG) 500 600 800 1000 2000 3000 5000 10000
Clean the workpiece size(mm) 600*1200 700*1200 1000*1600 1200*1800 1400*2200 1600*2300 1800*2500 3000*3000
Shot blasting amount (kg/min) 2*200 2*200 2*250 2*250 3*250 3*250 4*250 5*250
Lift (T/h) 24 24 30 30 45 45 60 75
Separator separation amount (T/h) 24 24 30 30 45 45 60 75
Power (KW) 22.5 23.5 39.65 47.5 56.2 65.45 85.45 97.65
Ventilation(m3/h) 4000 4000 5000 5000 9000 11000 14000 16000

Get a Free Quote

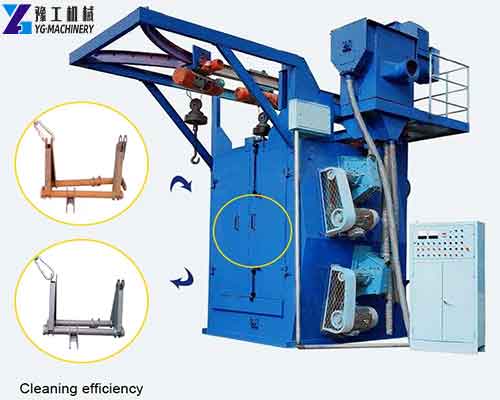

Shot Blasting Equipment
Shot Blasting Equipment

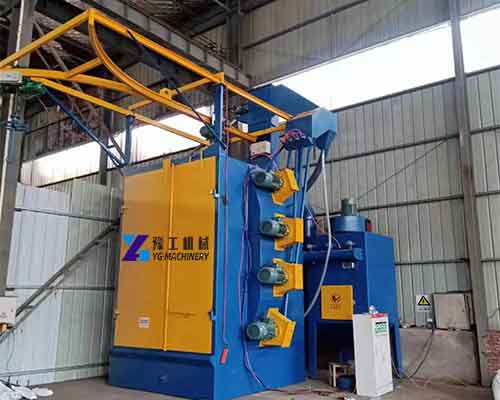

Shot Blasting Machine Manufacturer
Shot Blasting Machine Manufacturer

Work Program Automatic Shot Blasting Machine:

When the machine is working, when the preparatory work (dust removal system, hoist, screw conveyor, etc. running) is completed, the machine starts to work normally. First, the hook lowers to lift the workpiece, rises to a certain position, and then enters the shot blasting room along the track, and stops and starts to rotate when it reaches the predetermined position. At this time, close the door of the shot-blasting room, open the shot blaster, open the shot gate, and start to blast the workpiece. Repeat this process until the work is completed, and shut down in sequence.

Application of Hanger Type Shot Blasting Machine:

  1. Agriculture industry: Shot blasting: Tractor components, water pumps, farm implements, etc.
  2. Automobile industry: Shot blasting: Engine blocks, cylinder heads, brake drums, etc.
  3. Building & infrastructure industry: Shot blasting: Structural steel, bars, transmission & television towers, etc.
  4. Transportation industry: Shot blasting: Engine blocks, axle & crankshafts, diesel engine components, etc.
  5. Oil & gas industry: Surface preparation: Pipes coating with paper, cement, epoxy, polythene, coal tar, etc.
  6. Mining industry: Shot blasting: Bulldozers, dumpers, crushers, landfill equipment, etc.

Get a Free Quote

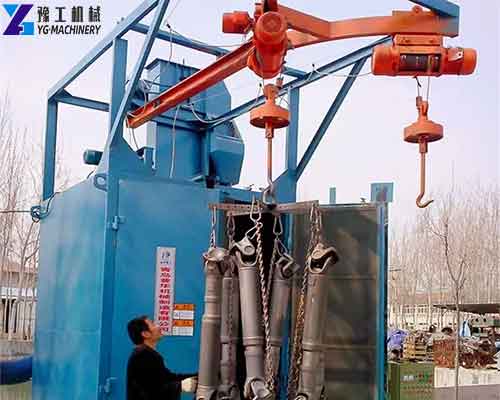

Portable Shot Blasting Machine
Portable Shot Blasting Machine

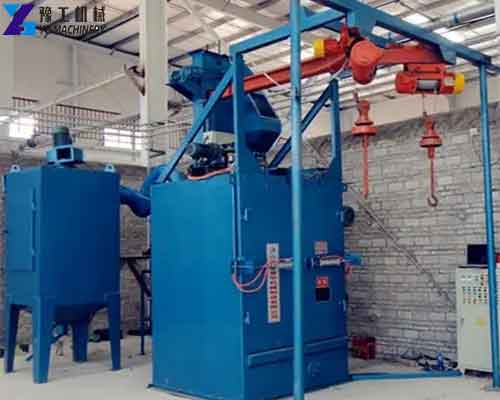

Shot Blaster for Sale
Shot Blaster for Sale

6 Features of Shot Blasting Machine:

  1. Large inner available cleaning space, compacted structure, and scientific design. Can be designed and manufactured according to the order.
  2. No special request for the workpiece structure. Can be used for different kinds of workpieces.
  3. Widely used in cleaning and strengthening Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal, and External Finishing.
  4. The pre-heating and drying part adopted various heating modes, such as electricity, fuel gas, fuel oil, and so on.
  5. Can be equipped as a part of a processing line.
  6. The complete set of equipment is controlled by PLC and is the large-size complete equipment of international advanced level.

Hanger Type Shot Blasting Machine Manufacturer – YG Machinery

Continuous hanger-type shot blasting machines automate production sequences and improve the work environment, resulting in an efficient and cost-effective blast cleaning process. Hanger shot blasting machines are the most flexible machine types. The production efficiency of this shot-blasting machine is quite high, and the flexibility span is quite large. It is an ideal cleaning and strengthening equipment, and it is easy to operate. You only need to load the workpiece to be processed on the machine, press the start button, and after a short time, that is, the entire cleaning process is completed, and all dust and residual pellets are removed. In addition, we also have sandblasting rooms, sandblasting chambers, pass-through shot blasting machines, floor shot blasters, shot blasting machines, portable sandblasting machines, automatic sandblasting machines, concrete curb machines, floor grinders, floor scarifiers, asphalt crack filler machines, electric road sweepers, etc. Contact us now!【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
