Diamond Wire Saw Machine

A diamond wire saw machine is a kind of cutting machine that is mainly aimed at cutting thick concrete and irregular concrete, such as the cutting of reinforced concrete beams, and columns. In addition, the construction of foundation concrete structures like bridges, floors, and stone processing is partially dismantled by the diamond wire saw machine. It can also be called a concrete wire saw machine, a diamond wire saw for concrete depending on its cutting material. According to the power, it can mainly be divided into electric wire saw and hydraulic concrete wire saw and also divided into concrete cutting rope saw and mining rope saw by the different cutting purposes and requirements. All the types of diamond wire saw machines for sale in YG Machinery with good quality and competitive prices will be your best choice. Contact us for a quotation now. We also have wire saw cutting machines, concrete wall saws, hydraulic rock splitters, pile breakers, high-frequency wall saws, hydraulic wall saws, electric wall saws, excavator hydraulic shearsfirewood splitter machines, hydraulic breaker machines, excavator drum cutters, excavator crusher buckets, etc. Contact us now!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

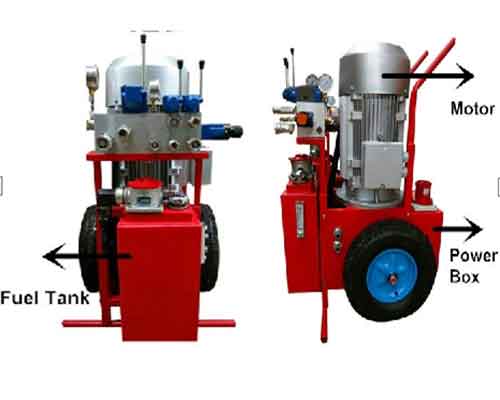

Yugong Machinery Hydraulic Wire Saw

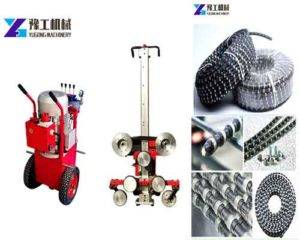

Hot Sale Wire Saw Machine Rope

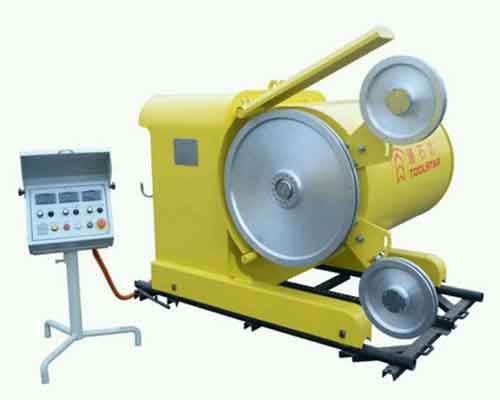

Stone Wire Saw for Sale

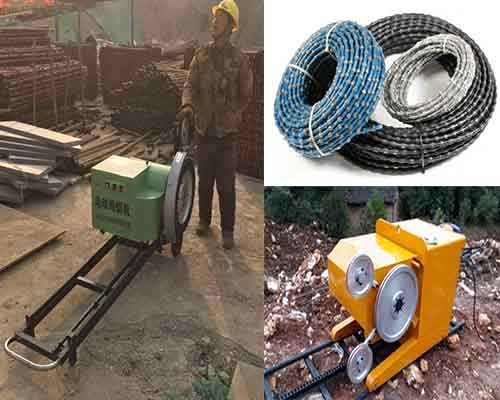

Electric Diamond Wire Saw Machine
Yugong Machinery Hydraulic Wire Saw Hot Sale Wire Saw Machine Rope Stone Wire Saw for Sale Electric Diamond Wire Saw Machine

Get a Free Quote

Hydraulic Diamond Wire Saw Machine

The hydraulic wire saw cutting machine is a new generation of automatic reinforced concrete cutting equipment for concrete by our company based on years of concrete experience and machine modeling design. It uses Australian motors and Italian hydraulic components and has the lightest weight in the same volume of machines. The equipment is mainly composed of a hydraulic rope saw set and hydraulic power station set, cooperating with a directional wheel, universal wheel, and wire rope at the same time to do the cutting operation. The hydraulic diamond wire saw machine for sale in our company has strong power that can make sure the cut is straight, neat, and has no need to trim. Meanwhile, it can also be used in the cutting of reinforced concrete, ceramics, and glass without vibration and the noise is low. If you want to cut the complex section, it’s also very suitable.

Yugong Machinery Hydraulic Wire Saw
Hydraulic Wire Saw for Sale

Hydraulic Wire Saw for Sale
Hydraulic Wire Saw for Sale

Get a Free Quote

The Major Parameter of Hydraulic Wire Saw Machine:

Wire Saw Wheel Parameters Hydraulic Pump Parameters
Wire Drive Mode hydraulic Motor Power 22/25kw
Motor Type HM-80, 2 Cylinders Voltage 220V/380V, 50Hz
Minimum Input Power 25HP/33HP Hydraulic Pump Type Gear Pump
Output Shaft Speed 350/940/1300r/min Main Drive Motor 40-100L/min
Maximum Wire Length 20m Working Pressure 15-20Mpa
Feeding Method Fully hydraulic Oil Tank Capacity 17L
Wire Saw Wheel Weight 64kg Weight 160kg
Motor Weight 14kg Size 700*700*1200mm
Size 1700*700*800mm

Get a Free Quote

Hot Sale Wire Saw Machine Rope
Wire Saw Machine Rope

Construction of Hydraulic Diamond Wire Saw
Construction of Hydraulic Diamond Wire Saw

Get a Free Quote

Electric Wire Saw for Sale

The electric wire saw machine is also a commonly used concrete cutting machine. Users can make appropriate choices conforming to their requirements. The saw head is relatively heavy. In some cases, it can be fixed by pressing the bottom angle directly without using expansion screws, which can greatly reduce the damage to concrete cutting. The hydraulic pump station of the hydraulic wire saw machines need to use cooling water to reduce the oil temperature. However, the electric equipment can work for a long time by adding a small amount of cooling water at the end of the rope. It can be operated with household electricity directly, eliminating the need for a hydraulic system, so it usually costs less. However, compared with the hydraulic wire saw, it also has some advantages. One is that it isn’t as flexible as hydraulic equipment when construction, especially on the construction surface of small places. The other is that it has less power than the hydraulic machine and the efficiency is a little slower. Then if you still don’t know which one is more suitable for you after reading the features of these two types, please kindly tell us your main application, and we will give you the right advice.

Electric Diamond Wire Saw Machine
Electric Wire Saw for Sale

Major Parameter
Wire Drive Mode: Electric
Voltage: 380V, 5Hz
Output Shaft Speed: 980r/min
Maximum Linear Velocity of Rope: 28m/s
Weight: 350kg
Maximum Wheel Size: 500mm

Get a Free Quote

Stone Wire Saw for Sale

The machine can also be called a mining stone wire saw-cutting machine. This kind of equipment produced by our factory is mainly divided into four series. Among them, Series B is a standard machine, with eight specifications. Series C is a kind of two-speed model, including five standards. Series E is called an economical model which contains four specifications and Series X is a small kind of machine that contains four models. Then I will give the major parameters of all the models and you can choose the one you need to refer to the parameters.

Diamond Wire Saw for Mining
Diamond Wire Saw for Mining

Stone Wire Saw for Sale
Stone Wire Saw for Sale

Model YG37B YG45B YG55B YG75B YG55C YG75C YG110C YG15E YG22E YG30E YG37E YG11X
Main Motor 37KW 45KW 55KW 75KW 55KW 75KW 110KW 15KW 22KW 30KW 37KW 11KW
Flywheel’s Diameter 0.75KW 0.75KW+0.37KW 0.37KW 0.75KW 0.75KW /
Guide Pulley’s Diameter Marble Φ800

Granite Φ600

Marble Φ900

Granite Φ800

Φ600 Marble Φ800

Granite Φ600

Φ5800
Wire Speed 2XΦ380 2XΦ300 2XΦ380 Φ300
Walking Speed 0-160m/h 0-30m/h
Rotation Angle 360 Electric 360 Hand Control
Max Wire Length(m) 60 80 100 120 80 100 120 20 30 50 60 10
Net Weight(kg) 1950 2030 2780 2980 2980 3120 3785 1050 1090 1440 1650 345

Get a Free Quote

The 6 Features of Mining Stone Wire Saw for Sale in YG Machinery:

  1. A variety of machine specifications can meet the needs of different users.
  2. With truly reliable automatic functions, one person can operate multiple machines.
  3. Adopt the constant tension control principle to ensure the best cutting condition.
  4. Use multiple dustproof and waterproof devices which makes the sealing performance good.
  5. Adopt the unique side door structure. It’s very convenient to maintain.
  6. The machines of Series C use the two-speed feed to double-track drive technology which can save the time of no-load walking and make the work feed smoother.

How to Choose the Suitable Diamond Wire Saw for Sale?

  1. Consider the material you want to cut, as well as the cutting environment. The electric wire saw and hydraulic rope saw machine will be suitable for the cutting of concrete and the stone wire saw machine for mining is usually used in the mining, cutting, and shaping of marble and granite.
  2. Choose according to the thickness of the concrete, the size of the steel bar, and the number of roots.
  3. Choose depending on your desired efficiency and the consumables.
  4. When you search on the Internet, you should find real manufacturers, such as YG Machinery Co., Ltd which can ensure quality and save your cost at the same time.

The Outstanding Advantages of Diamond Wire Saw Machine:

  1. Safe and Easy to Operate. The use of machines can reduce labor intensity, and improve cutting ability, and labor efficiency.
  2. The linear cutting makes the construction section more orderly.
  3. The improvement of working speed can shorten the construction period, further reduce labor costs, improve competitive advantages, and expand the scale of acceptable construction projects.
  4. The safety, reliability, and stability of hydraulic wire saw greatly reduce the loss cost of construction equipment.
