Portable Water Well Drilling Rigs for Sale

Portable water well drilling rigs for sale in Henan YG Machinery is a type of home water well drilling equipment, which can also be called folding water well drilling rigs. This kind of machine is usually used to drill wells for household use, field irrigation wells, construction pile driving, and some other small projects. Its drilling depth can be up to 200m with an opening hole diameter of up to 350mm. The portable water well drilling rigs include several types of power, such as electric water well drilling machines, diesel small water well drilling rigs, hydraulic core drilling rigs, and gasoline water drilling machines.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800

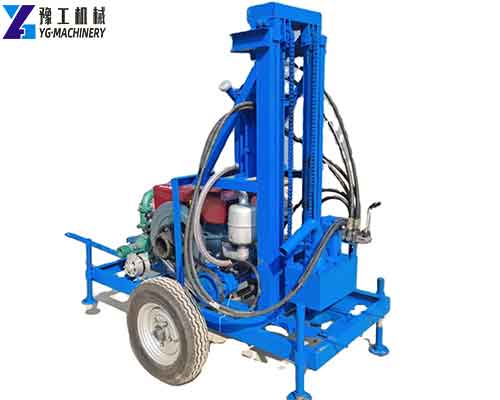

Portable Borehole Drilling Rig
Portable Borehole Drilling Rig

Technical Parameter:
Model YG-240-22P
Dimension 1450*1550*1970mm
Weight 200kg
Drill rod diameter 42mm
Drill rod length 1.5m/unit
Rod change method Full automatic screw thread
Max drilling depth 200m
Diesel engine power 22HP
Drilling hole diameter Within 280mm
Lifting height 2.5m
Lifting force 1000kg

Get a Free Quote

Two Phase Small Fold Water Well Drilling Rig
HY-180 Two-Phase Small Fold Water Well Drilling Rig

Technical Parameter:
Model HY-180
Opening Hole Diameter 80-200mm
Drilling Depth 80m-100m
Drill Pipe Diameter φ42mm
Drill Pipe Length 1.5m
Motor Power 1.5kw-2kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 500kg
Size 700mm*700mm*2500mm
Weight 120kg

Get a Free Quote

Gasoline Hydraulic Small Water Well Drilling Rigs
ZX-220 Gasoline Hydraulic Small Water Well Drilling Rigs

Technical Parameter:
Model ZX-220
Opening Hole Diameter 0-280mm
Drilling Depth 120m
Drill Pipe Diameter φ51mm
Drill Pipe Length 1.5m
Motor Power 4kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 800kg
Size 800mm*700mm*2500mm
Weight 200kg

Get a Free Quote

Two Phase High Power Electric Small Fold Water Well Drilling Machine
HY-240 Two-Phase High Power Electric Small Fold Water Well Drilling Machine

Technical Parameter:
Model HY-240E
Opening Hole Diameter 0-240mm
Drilling Depth 100m
Drill Pipe Diameter φ51mm
Drill Pipe Length 1.5m
Motor Power 4kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 500kg
Size 700mm*700mm*2500mm
Weight 200kg

Get a Free Quote

Diesel Hydraulic Water Drilling Machine
ZX-280 Diesel Hydraulic Water Drilling Machine

Technical Parameter:
Model ZX-280
Opening Hole Diameter 0-280mm
Drilling Depth 120m
Drill Pipe Diameter φ51mm
Drill Pipe Length 1.5m
Motor Power 4kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 800kg
Size 800mm*700mm*2500mm
Weight 200kg

Get a Free Quote

Three Phase Fold Water Well Drilling Rigs for Sale
HY-350 Three-Phase Fold Water Well Drilling Rigs for Sale

Technical Parameter:
Model HY-350
Opening Hole Diameter 350mm
Drilling Depth 100m
Drill Pipe Diameter φ51mm
Drill Pipe Length 1.5m
Motor Power 3kw
Pump Power 2.2kw
Voltage 380v
Lifting Force 1000kg
Size 800mm*800mm*2000mm
Weight 250kg

Get a Free Quote

Why Buy Portable Water Well Drilling Rigs for Sale in YG?

  1. Small volume, especially after folding. So it is very convenient to transport, carry and move.
  2. High working efficiency and fast drilling speed, which can drill 30 to 40 meters in an hour.
  3. Easy to operate. Workers can operate it according to the instructions without training.
  4. Three types of power, electric, diesel, and gasoline are available.
  5. Reliable manufacturer. We can guarantee the high quality of the drilling machine.
  6. Competitive price. With no third party, the price will be within your budget.

Portable Water Well Drilling Rigs for Sale in YG Machinery

The complete equipment of the series drilling machine includes the main engine and a series of auxiliary tools, such as forty meters of drill pipe, two alloy drill bits, a high-pressure pump, and five meters of high-pressure water pipe, as well as a certificate of qualification, and operation instruction. The portable water well drilling machine is more suitable for digging soil, limestone, and some other soft rock, and hard rock is not recommended. But you can find some other models for drilling hard rocks in our company. Of course, the best way to find the most suitable model is for you’d better tell us your most detailed requirements, like the depth, opening diameter, uses, geological conditions, the time limit for a project, and working efficiency, then our most professional sales manager will give you the best advice.

In addition, we also have trailer-mounted water well drilling rigs, tractor water well drilling rigs, DTH drilling machines, crawler DTH drilling rigs, horizontal directional drilling rigs, rotary drilling rigs, diamond core drilling machines, anchor drilling rigs, hydraulic pile drivers, portable air compressors, mud pumps, water detector machines, core drilling rig for mining, borehole drilling machines, full hydraulic core drilling rigs, etc.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
