Cold Paint Road Marking Machine

Cold paint road marking machine is a kind of normal temperature type of road marking machine, which is usually divided into high-pressure airless marking machines and low-pressure auxiliary type of road line painting machines according to its marking principle. Unlike the thermoplastic road marking machine, it doesn’t need hot melt kettle equipment, and only a cold paint marking machine can finish the work of the painting line. This kind of road striping machine is the type that has been used for the longest time and is widely used in the marking projects of straight lines, curved lines, zebra crossings, arrows, graphic signs on roads, highways, parking lots, factories, squares, airports, and some other places. There are several different types of cold paint road marking machines for sale in our factory, all the models are of high quality and we can guarantee to give you the most reasonable price. If you have any needs, please contact us now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

YG-8S Single-gun Cold Paint Road Marking Machine

YG-8S Cold Paint Road Marking Machine
YG-8S Cold Paint Road Marking Machine

Technical Parameter:
Model YG-8S
Motor power 5.5hp Honda gasoline engine
Plunger pump Electronic reversing
Number of spraying gun Single gun
Work mode Hydraulic
Pressure 8-12Mpa
Unloading flow 4.8L/min
Spray width 100-300mm
Spray thickness 0.2-0.4mm
Size 1600*800*1200mm
Weight 120kg

Get a Free Quote

YG-8S Single-gun Hand Push Road Marking Machine
YG-8S Single-gun Hand Push Road Marking Machine

Technical Parameter:
Model YG-8S
Motor power 5.5hp Honda gasoline engine
Plunger pump Electronic reversing
Number of spraying gun Single gun
Work mode Hydraulic
Pressure 8-12Mpa
Unloading flow 4.8L/min
Spray width 100-300mm
Spray thickness 0.2-0.4mm
Size 1600*800*1200mm
Weight 120kg

Get a Free Quote

YG-8D Double-gun Cold Paint Road Marking Machine for Sale

YG-8D Double-gun Cold Paint Road Marking Machine
YG-8D Double-gun Cold Paint Road Marking Machine

Technical Parameter:
Model YG-8D
Motor power 5.5hp Honda gasoline engine
Plunger pump Automatic Reciprocating Commutation
Number of spraying gun Double gun
Work mode Hydraulic
Pressure 8-12Mpa
Unloading flow 8L/min
Spray width 100-450mm
Spray thickness 0.2-0.4mm
Size 1600*800*1200mm
Weight 120kg

Get a Free Quote

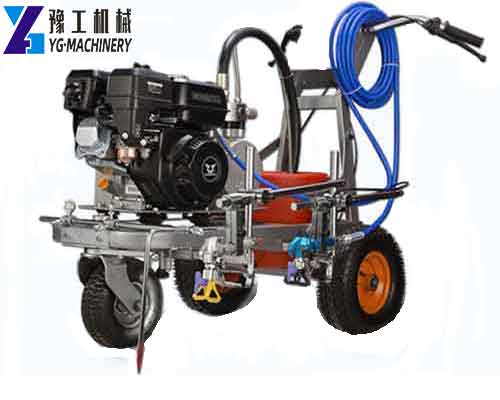

YG-8D Cold Paint Road Marking Machine with Double-gun
YG-8D Cold Paint Road Marking Machine with Double-gun

Technical Parameter:
Model YG-8D
Motor power 5.5hp Honda gasoline engine
Plunger pump Automatic Reciprocating Commutation
Number of spraying gun Double gun
Work mode Hydraulic
Pressure 8-12Mpa
Unloading flow 8L/min
Spray width 100-450mm
Spray thickness 0.2-0.4mm
Size 1600*800*1200mm
Weight 120kg

Get a Free Quote

Hand Push Cold Paint Road Marking Machine

The YG-8 hand-push cold paint marking machine manufactured by YG Machinery is a kind of high-pressure low-rate airless cold paint road marking equipment. Its working principle is mainly to use a gasoline engine to drive a single plunger pump to make the paint in the machine form high-pressure spraying. The guide rod of the spray gun frame is designed with adjustment lifting, which can make the spraying speed, and spraying width accurate and convenient, the performance is stable and the quality is excellent at the same time. In addition, the machine has the characteristics of the demarcation line thickness being uniform, the edge angle being even, the labor intensity being low, the construction being quick and convenient, etc…
The machine is powered by a 5.5hp Honda gasoline engine, the working mode is hydraulic drive and the spraying thickness is 0.2mm to 0.4mm. However, the hand-push cold paint road marking machine with a single gun and the double gun has different widths, and the plunger pump of the single-gun cold paint road marking machine uses electronic reversing, while the double-gun types adopt automatic reciprocating commutation. Please choose according to your needs and the technical parameters of the two models.

Component Details of Hand-Push-Cold-Paint Road Marking Machine
Component Details of Hand-Push-Cold-Paint Road Marking Machine

Get a Free Quote

Graco Road Marking Machine

With its advanced technology, continuous innovation, and reliable quality, the Graco road marking machine has always been in the front-of-the-line machine industry. In particular, the Graco line laser series marking machine adopts a unique professional airless road marking system. To meet the ever-changing needs of the road marking industry, the series marking machines are constantly improved, which has brought huge benefits to the special marking contractor time and time again. If you are planning to buy a Graco road marking machine, then you don’t need to have any hesitation, it will be your best choice.

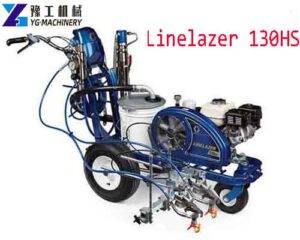

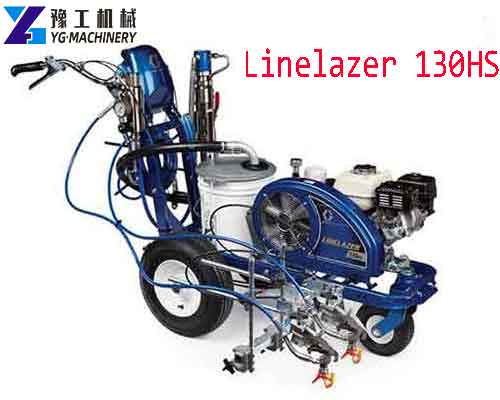

Graco Linelazer 130HS Road Marking Machine

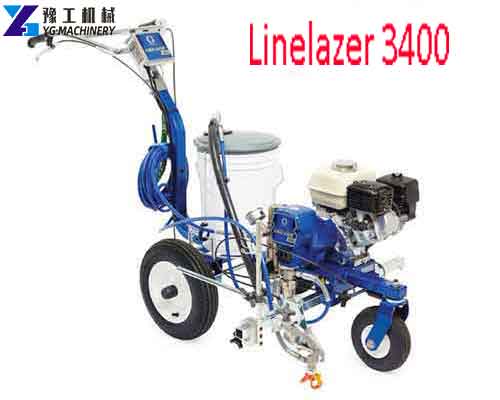

Graco Linelazer 3400 Road Marking Machine

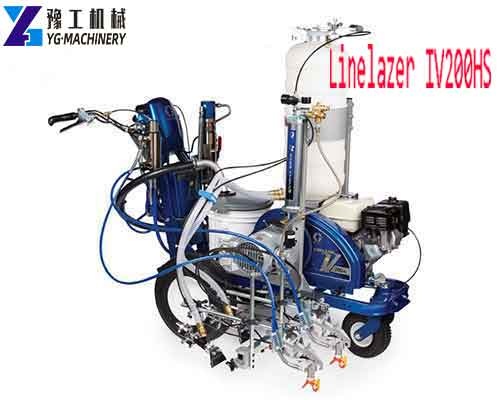

Graco Linelazer IV200HS Line Striper Machine

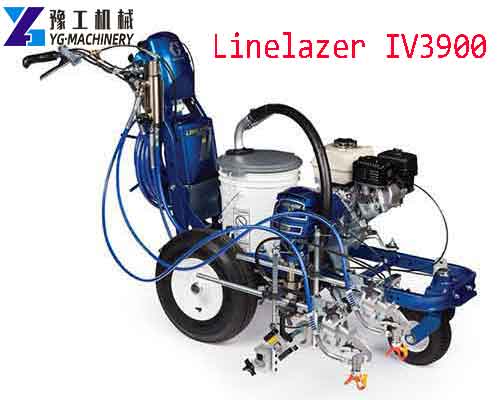

Graco Linelazer IV3900 Line Marking Machine

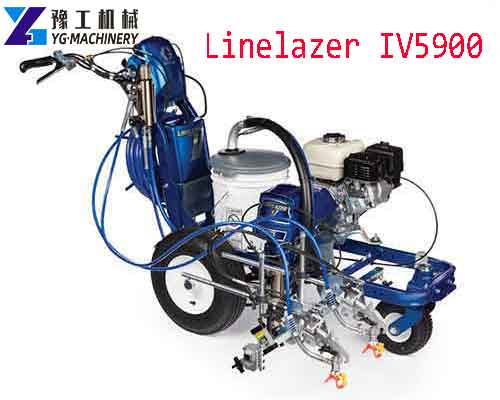

Graco Linelazer IV5900 Line Marking Machines for Sale

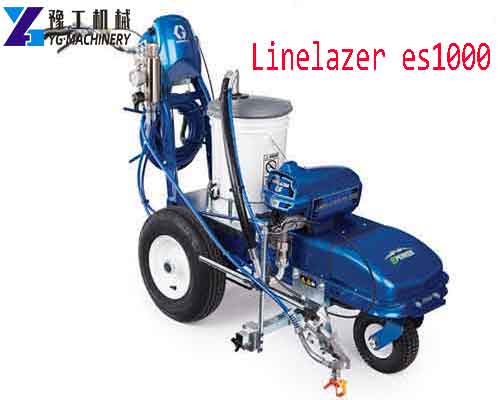

Graco Linelazer Road Line Marking Machine ES1000
Graco Linelazer 130HS Road Marking Machine Graco Linelazer 3400 Road Marking Machine Graco Linelazer IV200HS Line Striper Machine Graco Linelazer IV3900 Line Marking Machine Graco Linelazer IV5900 Line Marking Machines for Sale Graco Linelazer Road Line Marking Machine ES1000

Get a Free Quote

Cold Paint Road Marking Machine at a Cheap Price

The cheap cold paint road marking machine for sale in our company has a very simple structure and its price is definitely within your budget.

  • Pump. Adopt full oil intrusive lubrication, and hydraulic power which can reduce wear, and the service life can reach more than 40000 hours.
  • Filler plate. It is carefully designed and the cat is super wear-resistant. And it can be used freely whether in winter or summer. It also has the characteristics of acid and alkali resistance, good fatigue resistance, and is easy to replace.
  • Suction pipe network. The body of the machine is vertical, so the suction pipe is very easy to clean so that one person can move independently and
  • operate it easily. Stainless steel processing can resist corrosion, the inner wall won’t fall off, and no blockage. In addition, the suction screen solves the problem of a small inlet surface and easy clogging which can increase the inlet area.
  • Valve body. The inlet valve and outlet valve use the ball body porcelain beads which are super wear-resistant and have a service life of dozens of times longer than that of traditional steel balls.
  • The frame of the machine. The vertical design makes the structure compact, practical, easy to move, and removable. The frame can be easily wound with a 30-meter high-pressure hose, the overall equipment is easy to handle.
Cold Plastic Paint Marking Machine
Cold Plastic Paint Marking Machine

Get a Free Quote

Cheap Cold Paint Road Marking Machine
Cheap Cold Paint Road Marking Machine

Get a Free Quote

Technical Parameter:

Model Single nozzle Double nozzles
Engine power 4.3hp 7hp
Discharge 6L/min 8L/min
Max output 25mpa 30mpa
nozzle 517(<15cm) 517(<15cm)
High-pressure tube strength 35mpa 35mpa
High-pressure tube length diameter 6x10m diameter 6x10m
Net weight 72kg 130kg
Max working width 20cm 45cm
Application of Hand Push Cold Paint Road Marking Machine
Application of Hand Push Cold Paint Road Marking Machine

Get a Free Quote

Cold Paint Road Marking Machine Manufacturer
Cold Paint Road Marking Machine Manufacturer

Package of Cold Marking Machines
Package of Cold Marking Machines

The Outstanding Features of Graco Line Laser:

  1. Maneuverable control device. The commonly used control device is mounted on the handle, so the operator can easily adjust the operation of the marking system without stopping the work.
  2. More natural and comfortable handle design. Streamline handles which are easy to control and can the hands feel comfortable, reduce the operators’ fatigue.
  3. Convoluted front wheel. The design can make it easy to implement to line the parking lot up to the shoulder of the road and high difficulty curve. Meanwhile, the tapering lock design provides a reliable guarantee for the long-term operation of the machine.
  4. New electronic pressure control. This design makes the system more accurate, fewer errors can improve the quality of the marking line.
  5. Advanced shock absorption system, which can eliminate engine vibration and elevate the marking to a new level.
  6. Chromex pump rod. Pump roads with special long-life treatment can adapt to the most demanding requirements of the material. It is four times harder than ordinary chromium.
  7. Graco Line Driver. The boosted equipment can improve construction efficiency and reduce fatigue at the same time.
  8. Honda power plant. The performance of the Honda engine is reliable, and the technology is advanced and easy to start, which makes it the preferred brand.

Cold Paint Road Marking Machine Price – YG Machinery Manufacturer

At present, YG Machinery’s cold spray scribing machine and thermoplastic road marking machine are very popular and are suitable for different types of engineering projects. Simple operation, easy maintenance, and high work efficiency. As a professional manufacturer, YG Machinery has a sales team of 500 people, professional technicians, and an after-sales team, so there are no worries. We also have a large production workshop with advanced technology. Of course, the price is also very competitive, I believe you will want to cooperate with us for a long time. In addition, we have a series of road equipment, floor shot blasters, road roller machines, asphalt crack filler machines, floor grinders, floor scarifiers, concrete curb machines, trowel machines, electric road sweepers, concrete scrabblers, snow-making machines, etc. If you want to know more about machines, contact us now, and we will give you a quote and advice.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
