HDD Rig for Sale in the USA

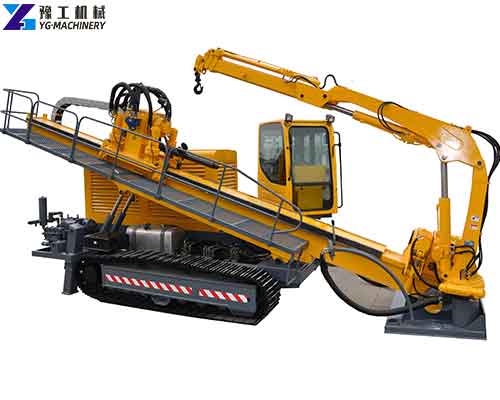

Horizontal Drilling Rig
Horizontal Drilling Rig

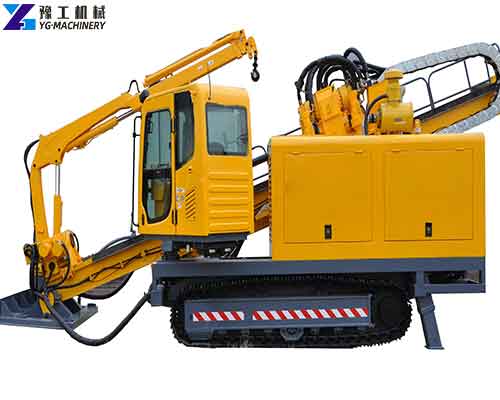

HDD Rig
HDD Rig

In the ever-evolving world of underground construction, Horizontal Directional Drilling (HDD) has emerged as a groundbreaking technique. To cater to the growing demand for efficient and reliable HDD equipment in the United States, our company introduces our state-of-the-art HDD drilling rig for sale. At present, our customers from the United States have placed three orders. When they contacted our business manager for the first time, he said that he wanted to confirm a test order first. When it is confirmed that the machine is working well, a batch order will be placed. Of course, after two months, the customer placed two more orders, each ordering 6 units. This is also due to the good quality of our machines and the support of the company’s after-sales team. If you also want to invest in a horizontal directional drilling rig, please contact us.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800

Get a Free Quote

HDD Rig Parameter:

Model YG-160A YG-180 YG-280 YG-320 YG-320A
Engine rated power 100KW 97KW 160KW 140KW/160KW 160KW
Push and pull Cylinder Motor Motor Cylinder Motor
Maximum drag/feed force 160/100KN 180/180KN 280/280KN 320/320KN 320/320KN
The maximum torque of the powerhead 5000N.n 6000N.n 10000N.n 12000N.n 12000N.n
Powerhead speed 0-180r/min 0-140r/min 0-120r/min 0-140r/min 0-140r/min
Moving speed of powerhead 30m/min 20m/min 20m/min 20m/min 20m/min
Maximum reaming hole diameter Φ600mm Φ600mm Φ750mm Φ800mm Φ800mm
Drill rod length (single) 3m 3m 3m 3m 3m
Drill pipe diameter Φ60mm Φ60mm Φ73mm Φ73mm Φ73mm
Drill pipe diameter 10-23° 10-22° 10-23° 10-20° 10-20°
Maximum mudflow 160L/min 250L/min 320L/min 320L/min 320L/min
Maximum mud pressure 100bar 80bar 80bar 80bar 80bar
Overall quality 6700kg 8500kg 12500kg 11500kg 11200kg
Dimension(length*width*height) 5700*1820*2400

mm



6400*2270*2340

mm



7100*2260*2450

mm



7100*2250*2450

mm



7662*2162*2450

mm

Get a Free Quote

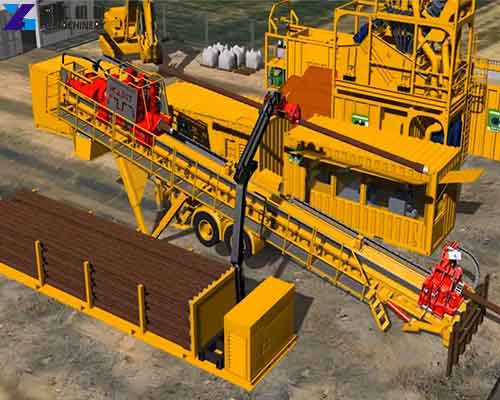

Horizontal Directional Drilling Rig
Horizontal Directional Drilling Rig

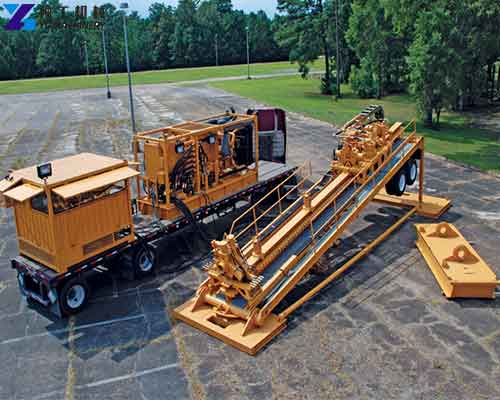

Horizontal Directional Drilling Equipment
Horizontal Directional Drilling Equipment

What Are the Advantages of YG’s Horizontal Directional Drilling Rig?

  1. Meeting market needs: With the exponential growth of infrastructure projects across the USA, there arises a pressing requirement for advanced HDD technology. Our HDD drilling rig aims to address these needs. It provides accurate drilling in challenging terrains while ensuring minimal environmental impact.
  2. Innovative features: Our HDD drilling rig boasts a plethora of innovative features that set it apart from competitors. Its superior hydraulic system enables precise control of drilling angles and depths, resulting in efficient and accurate operations. The rig’s robust structure ensures stability, even in the toughest soil conditions, allowing for uninterrupted drilling performance.
  3. Enhanced safety measures: Safety is a top priority in any construction project. Our HDD drilling rig incorporates advanced safety features, such as an emergency stop button and an automated shutdown system, to ensure the well-being of operators. The rig’s enclosed cabin also provides a comfortable and secure working environment, protecting operators from external elements.
  4. Seamless user experience: We understand the importance of user-friendly equipment. Our HDD drilling rig incorporates an intuitive control panel and a user-friendly interface. With easily adjustable settings and real-time data monitoring, operators can handle the rig efficiently and maximize productivity. Moreover, comprehensive training and aftersales support ensure a seamless user experience.
  5. Comprehensive testing and certification: Before introducing our HDD drilling rig to the American market, rigorous testing and certification processes were conducted to ensure compliance with industry standards and regulations.

Get a Free Quote

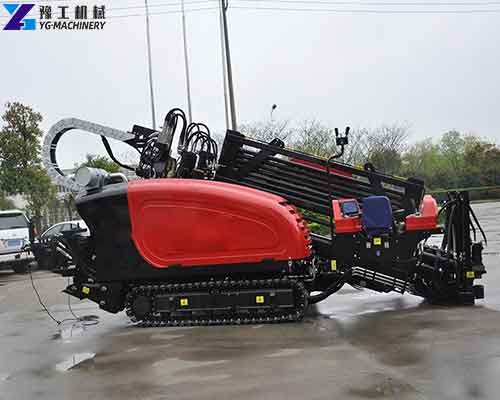

Horizontal Directional Drilling Machine for Sale
Horizontal Directional Drilling Machine for Sale

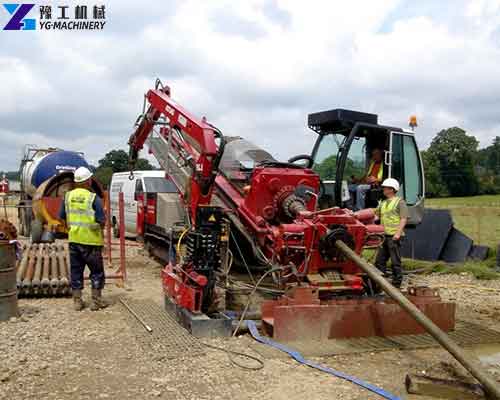

Directional Boring Rig
Directional Boring Rig

HDD Rig for Sale – Best Price in YG Machinery

Our HDD drilling rig’s successful entry into the American market showcases its unparalleled performance and reliability. With its innovative features, enhanced safety measures, and seamless user experience, our product has become a trusted choice for contractors and drilling professionals. As we continue to push boundaries and improve our technology, we remain committed to delivering cutting-edge solutions that revolutionize the HDD industry and contribute to infrastructure development across the USA. In addition, we also have core drilling rigs for mining, crawler-mounted water well-drilling rigs, trailer water well-drilling rigs, tractor drilling rigs, anchor drilling rigs, hydraulic pile drivers, rotary drilling rigs, DTH drilling rigs, full hydraulic core drilling rigs, etc. Contact us for more details!【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
