Underground Water Detector Machine Price

Water Detector Machine
Water Detector Machine

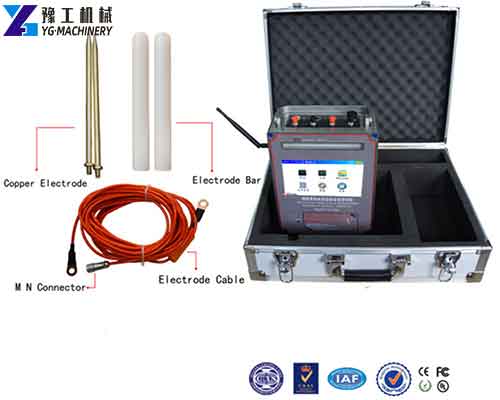

Underground Water Detector Machine
Underground Water Detector Machine

The underground water detector machine is also called the geophysical water-finding instrument. It is an auxiliary tool for outdoor well drilling to find water. It is a water-finding instrument that automatically draws curves and geological structure profiles. The water-finding instrument (water detection instrument) can understand the geological structure through the automatically generated curves and profiles, and analyze specific information such as aquifers, faults, and caves. This instrument is used in different terrains such as plains, hills, mountains, plateaus, and basins. Analyze the change of geological structure, and determine the well location, water residence, and depth of water-bearing residence. Want to know the underground water detector machine price? Of course, YG Machinery also produces various water well drilling rigs, please contact us.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Underground Water Detector Machine Parameter:

Model YG-150 YG-300 YG-500 YG-1000 YG-1500 YG-20000
Optional depth 150m 150m
300m
150m
300m
500m
500m
800m
1000m
500m
1000m
1500m
500m
1000m
1500m
2000m
3200m
Maximum number of channels 18 channels 18 channels 18 channels 18 channels 18 channels 18 channels
Minimum resolution 0.001mv 0.001mv 0.001mv 0.001mv 0.001mv 0.001mv
Point selection 1~18 points optional 1~18 points optional 1~18 points optional 1~18 points optional 1~18 points optional 1~18 points optional
controller 32-bit high-speed CPU 32-bit high-speed CPU 32-bit high-speed CPU 32-bit high-speed CPU 32-bit high-speed CPU 32-bit high-speed CPU
Working temperature -20℃~50℃ -20℃~50℃ -20℃~50℃ -20℃~50℃ -20℃~50℃ -20℃~50℃
Power 9w 9w 9w 9w 9w 9w
Display screen touch screen touch screen touch screen touch screen touch screen touch screen
Standby time 8h 8h 8h 8h 8h 8h
motor rod 22 sticks per standard 22 sticks per standard  22 sticks per standard  22 sticks per standard  22 sticks per standard  22 sticks per standard

Get a Free Quote

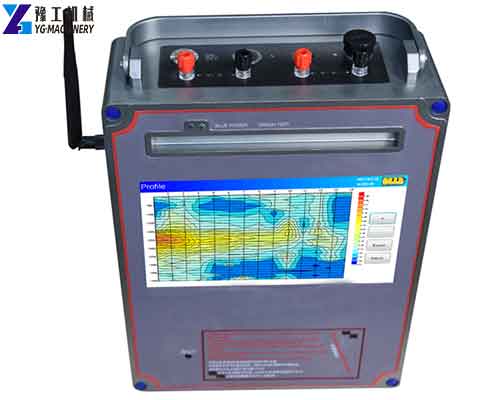

Underground Water Leak Detector
Underground Water Leak Detector

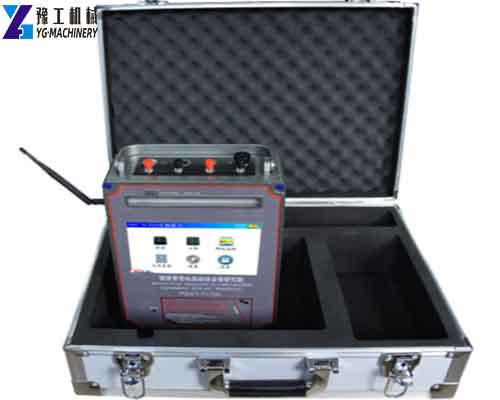

Mapping Water Detector
Mapping Water Detector

Working Principle of YG Water Detector Machine:

The working principle of the water finding instrument is to use the magnetotelluric field as the field source, based on the conductivity difference of different underground geological structures, and to study the geological structure and changes by measuring the change law of the field components of different frequencies to find the geological structure changes of groundwater resources scientifically. The situation is displayed in real-time via graphs. The site can understand the geological structure through the automatically generated curves and profiles, and analyze specific information such as aquifers, faults, and caves. The instrument is used in different terrains such as plains, hills, mountains, plateaus, and basins to analyze changes in geological structures and determine well positions, water habitats, and water-bearing depths.

The Advantage of the YG300 Water Detector Machine Price:

  1. Be suitable for plain, hill, mountain land, highland, basin all kinds of geologic structure applications;
  2. Automatic mapping in the instrument, getting drilling position and depth results at the site.
  3. Professional user group offers 24-hour after-sale service.
  4. The average accuracy of more than 90% from the user’s feedback.
  5. Four languages including English/Spanish/French/Arabic are optional.
  6. It is widely used for drinking water, and agricultural irrigation water detection.
  7. Non-professionals can learn the operation way in 5 minutes.
  8. Only 1-2 people can operate.
  9. Two years warranty.

Get a Free Quote

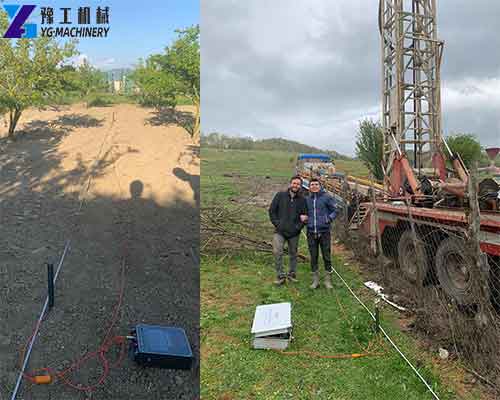

Automatic Mapping Water Locator
Automatic Mapping Water Locator

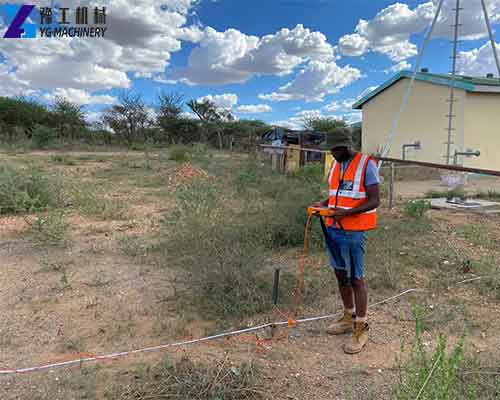

Water Detector Machine for Sale
Water Detector Machine for Sale

FAQ and Answers for Underground Water Detector Machine:

Q: Do I need to connect to the Internet using the water meter?

A: It does not need to be connected to the Internet during use. After the measurement is completed, the host of the water finder can directly draw curves and profiles.

Q: Is it difficult to find a water meter to operate?

A: The operation of the water meter is very simple, and only 1-2 people can operate it.

Q: How many meters can the water finder detect?

A: We have a variety of models of water meters for customers to choose from, including depths of 150 meters, 300 meters, 500 meters, 900 meters, 1200 meters, 1500 meters, and 3200 meters.

Q: How accurate is the water meter?

A: A water finder is an auxiliary tool. Any water finder requires a human operator. A large part of the accuracy of the water finder depends on the person who operates the water finder and his experience. According to statistics from our customers, the average accuracy rate is more than 85%, and the accuracy rate of a special understanding of local geology can reach more than 95%.

Q: How long can the battery of the water meter be used?

A: The battery can be used for 6 to 8 hours on a full charge.

Underground Water Detector Machine Price – YG Machinery

The YG Series is the 8th-generation multi-channel prospecting instrument newly developed by our institute based on the natural electric field frequency selection method principle. This equipment helps customers find water sources as soon as possible and can be used with our drilling rigs to reduce customers’ time for site selection. YG has various drilling rigs, trailer water well drilling rigs, tractor water well drilling rigs, crawler water well drilling rigs, crawler DTH drilling rigs, horizontal directional drilling rigs, rotary drilling rigs, anchor drilling rigs, hydraulic core drilling rigs, small water well drilling rigs, diamond core drilling rigs, borehole drilling machines, core drilling rig for mining, full hydraulic core drilling rigs, etc. Contact us if you want to know more about the underground water detector machine price details.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
