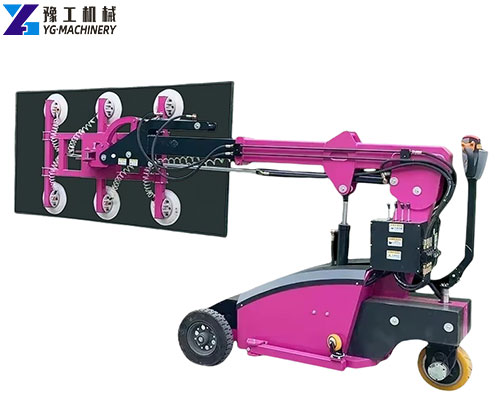

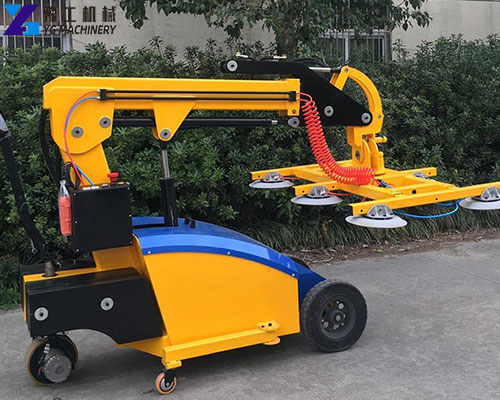

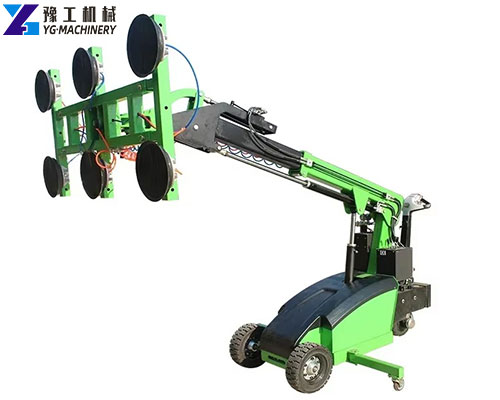

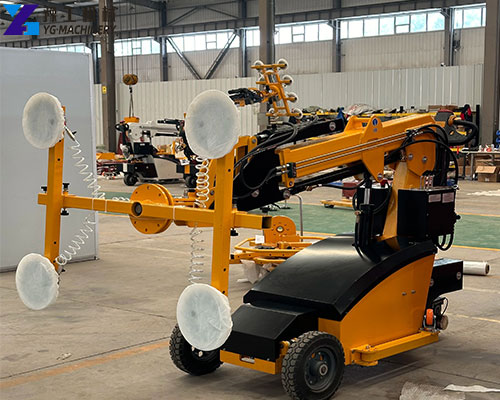

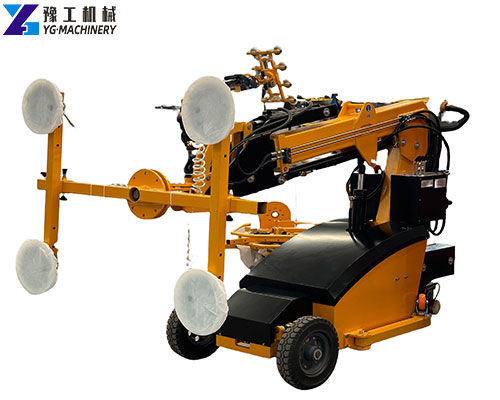

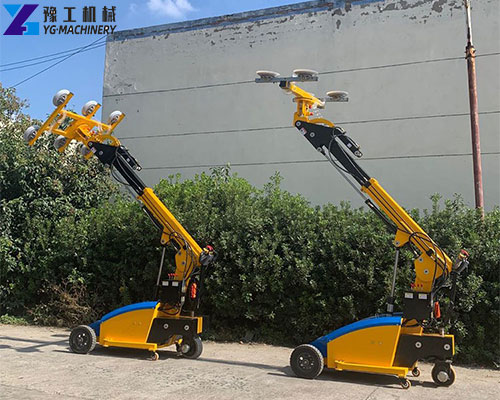

In the installation of glass for building curtain walls, commercial complexes, and homes, glazing robots are key equipment for improving installation efficiency and safety. Traditional manual installation of large-scale glass is not only time-consuming and labor-intensive, but also carries the risk of falling from height. YG’s glazing robots, however, feature a modular design. Constructed from high-strength aluminum alloy, they are lightweight yet robust. Their corrosion-resistant surface treatment makes them suitable for humid and rainy outdoor environments. The height of the robot is adjustable, facilitating installation at varying heights. The robotic arm rotates 360° for flexible adjustment of the glass position. The mobile chassis features universal casters with brakes, ensuring smooth movement even on soft surfaces or scaffolding. The control system features a touchscreen interface and supports multiple languages, including English, Thai, and Spanish, for easy operation. Contact us now for more details!!!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

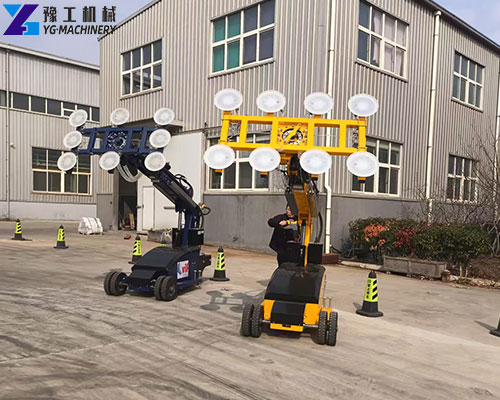

Glazing Robots for Sale in YG Machinery Parameter
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 | |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) | |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm | |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs | |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm | |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | |||||
| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. |
||||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered, optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). |
|||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | |||||
YG Smart Glazing Robot Features
- High Load Capacity: Different models offer load capacities ranging from 200kg to 800kg, allowing installation of glass from 1㎡ residential glass to 8㎡ curtain wall glasses. The SmartLift Glazing Robot has a maximum load capacity of 500kg, making it suitable for common commercial building curtain wall glass sizes.
- Precise Positioning and Installation: Equipped with a laser positioning device, the robot achieves positioning accuracy of ±2mm, with an operating error of ≤1mm. This allows precise insertion of glass into the installation slot, eliminating manual installation errors and reducing rework.
- Flexible Movement and Control: The universal wheel mobile chassis and wireless remote control allow operators to remotely control the device within a range of 50 meters, eliminating the need for close proximity to high-altitude work areas and enhancing safety. The robot arm can be adjusted at multiple angles, including lift, rotation, and tilt, to accommodate complex installation scenarios.
- Fast Vacuuming: The oil-free vacuum pump, coupled with an intelligent pressure monitoring system, automatically maintains vacuum pressure after attaching the glass. If pressure drops, an alarm is immediately activated, and the backup suction device is activated to prevent the glass from falling.
- Lightweight and portable design: Some models fold down to 40% smaller, weighing only 300kg, making them transportable by elevator or small truck. This meets the portability requirements of portable glazing machines and is suitable for moving between floors or across multiple construction sites.
- Weatherproof: With an IP54 rating, the device operates in temperatures ranging from -10°C to 45°C, even in light rain, and is suitable for hot, dry, and humid climates.
Case Studies of YG Glass Assembly Robots Used by Thai and French Customers
Case 1: A curtain wall engineering company in Bangkok, Thailand, was tasked with installing 800 12mm-thick, 6㎡ insulating glass panels for a 40-story commercial building in 2023. Previously, the company used manual installation, with teams of two installing only 10 panels per day and experiencing glass-falling accidents. To improve efficiency and safety, they purchased five YG glass vacuum lifting equipment with a 500kg load capacity.
With each robot operated by one person, they can install 30 panels per day. The five robots completed the entire installation project in just 16 days, 24 days ahead of schedule. There were no safety incidents in the whole process, and the glass integrity rate was 100%. The company’s project manager stated, “YG’s smartlift glazing robot has completely changed our construction methods. It not only significantly improves efficiency but also eliminates the safety hazards associated with manual overhead work. The equipment operates reliably even in Thailand’s scorching temperatures. The local after-sales team is very responsive, and any issues are resolved within two days. They’re incredibly reliable!”
Case 2: A home renovation company in Paris, France, primarily provides glass installation services for high-end villas. Previously, installing floor-to-ceiling windows larger than 3 square meters required four people, which was prone to damage due to collisions. In 2024, they purchased two YG lightweight glazing robots (with a load capacity of 300 kg). These robots can operate indoors and meet the portability requirements of portable glazing machines.
With these robots, a single person can now complete large-scale home glass installations, increasing the glass integrity rate from 80% to 99% and reducing installation time from 2 hours per window to 30 minutes per window. The company manager commented, “Customers used to complain about slow glass installation and scratches. After using YG’s glazing robots, these problems have been solved. The equipment is easy to operate, and our workers learned it in just half a day. Now, customer orders have increased by 30% compared to before. This equipment has been a huge help!”

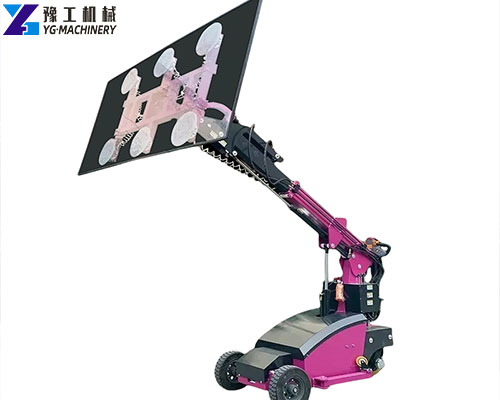

Glazing Robots for Sale – YG Machinery Manufacturer
For construction companies and renovation teams installing glass, glazing robots have long been a valuable tool. Previously, whether installing large glass panels for high-rise curtain walls or floor-to-ceiling windows in private villas, multiple workers had to lift them. This was tiring, slow, and potentially dangerous, and damaged glass was a waste of money. But YG’s glazing robots are different: they automatically grasp the glass and precisely deliver it to the desired location, easily operated by a single person using a remote control. Whether in a high-rise shopping mall in Bangkok, Thailand, or a residential complex in Malaysia, their use has significantly increased installation times, with no injuries and minimal damage. Furthermore, YG has taken into account the needs of different locations. For example, in Southeast Asia, with its frequent rain and hot weather, the equipment features sun protection and waterproofing, making it easy for local workers to use and ensuring quick repairs if any problems arise. For teams struggling with glass installation, YG’s glazing robots are not just any machine; they are truly valuable tools that can save time, reduce costs, and ensure safety. They are a surefire choice. If you want to know which model is suitable for your work, or want to know the price, just consult YG directly, and we will help you find the most suitable solution.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
