Self Loading Concrete Mixer Truck
self concrete mixer truck
self loader concrete mixer
Imagine your construction site is located in a remote rural area, on a rugged mountain road, or in a congested urban corner. Whenever you need concrete, you have to order it in advance from a distant commercial mixing plant, then anxiously wait for the mixer truck to traverse the long distance, enduring high freight costs and unpredictable delivery times. If there’s traffic congestion or bad weather, the concrete might already be hardening and unusable before it even reaches the site, compromising quality and delaying the project. For small, scattered, or geographically isolated projects, this traditional supply method is a nightmare.

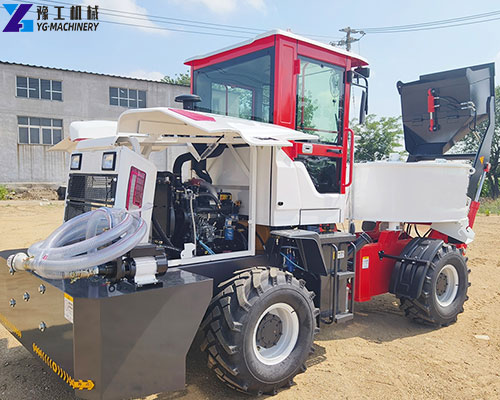

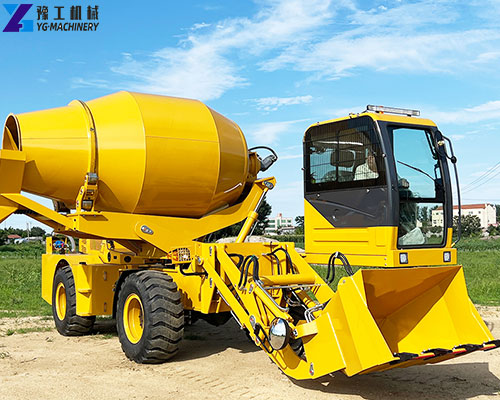

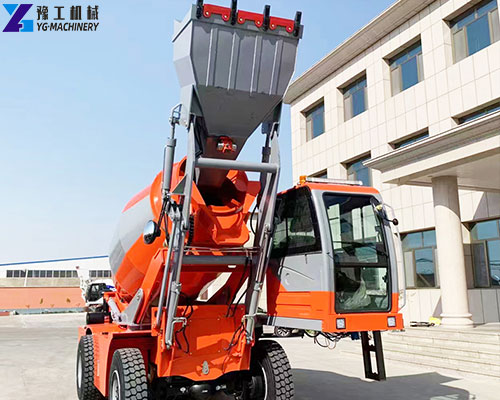

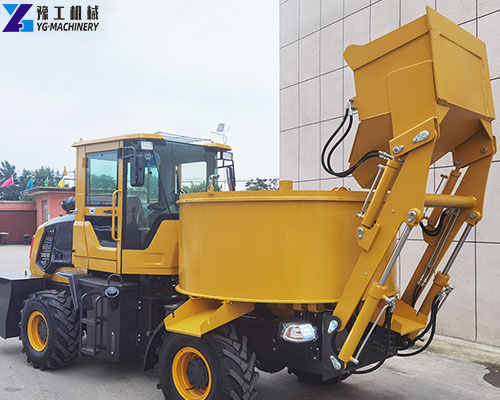

Is there a way to produce concrete on your own site, whenever you need it? The answer is the YG self-loading concrete mixer truck. It’s not just an ordinary truck; it’s a magical “Transformer,” combining the functions of a loader, mixer, transport vehicle, and precision weighing platform into one vehicle. It can shovel sand and gravel, weigh and proportion the mix itself, mix the concrete, and transport it all by itself. With it, your construction site has a mobile concrete plant ready to go at any time. This self-loading concrete mixer truck completely solves all your worries about high shipping costs, long waiting times, and poor quality. Contact YG now for a free quote about the machine.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
The Working Principle and Process of the YG Self-Loading Concrete Mixer Truck
Loading raw materials. The operator drives the equipment to the sand and gravel or cement stockpile, lowers the front bucket, and drives forward to load raw materials (sand, gravel, or cement). The loading amount is controlled by the weighing sensor on the bucket. Then, the bucket is raised to the feed inlet of the mixing tank, and the bucket is tilted to pour the raw materials into the mixing tank.
Adding water. Water is added to the mixing tank via a button in the cab (the water volume can be automatically controlled according to the preset ratio or adjusted manually) to ensure the raw materials are at the appropriate moisture level.
Mixing concrete. The mixing system is started, and the mixing tank rotates at a speed of 15-20 revolutions per minute. The spiral blades inside the tank will tumble and mix the raw materials. Generally, mixing takes 3-5 minutes (depending on the amount of raw materials) to form uniform concrete (the mixing status can be observed through the display screen in the cab).
Transporting concrete. After mixing is complete, the operator drives the equipment to the construction site. During the journey, the mixing tank speed can be reduced to 5-8 rpm for slow mixing to prevent the concrete from initially setting.
Unloading. Upon arrival at the construction site, the vehicle position is adjusted, and the unloading chute is extended to the pouring point. The mixing tank is then reversed (8-12 rpm). The concrete will flow out through the unloading chute under the propulsion of the spiral blades. The operator can control the unloading speed to avoid spillage. After unloading, the mixing tank and unloading chute are rinsed with clean water to prevent residual concrete from hardening.
Case Studies and Reviews of YG Self-Loading Concrete Mixer Trucks Used by Customers in the Philippines and Tanzania
Case Study 1: Rural Road Reconstruction Project in the Philippines
Client Background: A small construction contractor in the Philippines specializing in the repair of roads and bridges in remote areas of Luzon Island.
Problem Solved: The lack of commercial concrete plants in the area resulted in long transportation distances, causing concrete to begin setting before reaching the site, making quality difficult to guarantee.
Results: The client stockpiled raw materials at the construction site and used the self-loading concrete mixer truck for on-site loading, mixing, and pouring. Concrete quality was consistent, with virtually zero on-site waste. Project delivery time was reduced by 30% compared to the estimate.
Client Testimonial: “Purchasing this self-loading concrete mixer was the wisest decision we ever made. Its versatility allows our small company to undertake large projects and completely solves our nightmare of working in remote areas! The price of this self-loading concrete mixer is incredibly competitive.”
Case Study 2: Wind Power Foundation Project in Tanzania, Africa
Client Background: An international engineering company responsible for the foundation construction of a wind farm in the mountainous region of Tanzania.
Problem Solved: Wind farm foundations are scattered, and the construction sites have complex and steep roads, making it difficult for heavy concrete transport trucks to pass. At the same time, the requirements for the strength and mix proportions of the foundation concrete are extremely high.
Results: Thanks to its powerful 4WD off-road capabilities, the machine successfully transported concrete to each of the scattered foundation points. Its integrated pumping function (similar to a concrete mixer pump machine) directly pumps concrete to the piles and foundation pits at higher elevations, eliminating the need for additional equipment and ensuring both foundation quality and construction speed.
Customer Testimonial: “YG’s self-mixing concrete truck performs exceptionally well. It not only loads and mixes but also pumps, completing all the work in one machine. This is unmatched by other equipment on the complex terrain of Africa.”
Collaborative Application Scenarios of Self Loader Concrete Mixer and Concrete Mixer Pump Machine
Self-Loading Concrete Mixer: It loads its own sand and gravel, mixes it itself, and transports it. It’s responsible for quickly and accurately “producing” fresh concrete on remote or confined construction sites.
Concrete Mixer Pump Machine: It mixes itself (or receives material from a mixer truck) and can quickly and efficiently “transport” the concrete to higher or farther locations via long pipelines.
This combination is best suited for:
Remote mountain/rural road construction: Self-loading truck produces on-site, pump truck delivers to the pouring point.
High-rise buildings or tunnels: A self-loading truck supplies material, pump truck pumps the concrete up or into the site.
Urban construction sites with limited space: Flexible production, precise pumping, no reliance on external mixing plants.
Core advantages: High efficiency, low cost, high quality, and high mobility.
For any construction boss, the biggest concern when investing in large-scale equipment is that it might be impractical or break down, causing significant delays and losses. YG Group prioritized durability, reliability, and after-sales service when designing this self-loading concrete mixer truck. The hydraulic system and mixing drum materials used in this truck underwent rigorous selection and testing to ensure they can withstand various harsh construction site environments, performing stable high-intensity operations in both scorching summers and muddy rainy seasons.
YG understands that the value of a machine lies not only in its price but also in the continuous value it creates for its customers. Therefore, YG provides comprehensive services: First, professional, hands-on operation training ensures your driver can quickly and skillfully master the entire process from loading and precise proportioning to unloading, allowing even beginners to mix qualified concrete. Second, YG has established an efficient spare parts supply and technical support system. If the machine encounters any minor issues during operation, YG’s technicians will respond quickly, providing remote guidance or on-site service to ensure minimal downtime. This self-loading concrete mixer truck represents YG’s long-term commitment to its customers, guaranteeing excellent value for your investment.
Now, don’t hesitate any longer; contact YG’s sales team immediately. Simply tell them the exact location of your construction site and the daily volume of concrete needed, and YG’s experts will provide detailed calculations to see how much labor and transportation costs you can save by purchasing this self-loading concrete mixer truck compared to traditional methods. Act now!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
