Hydraulic Pile Breaker with 12 Modules Sold to the Philippines

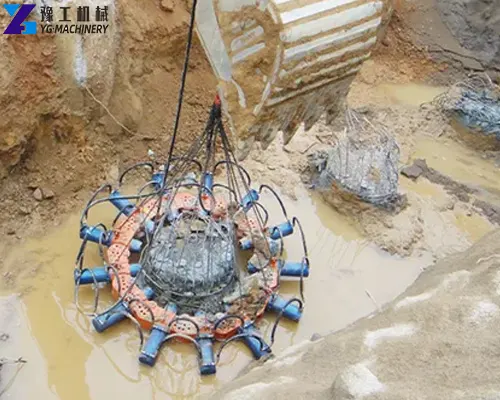

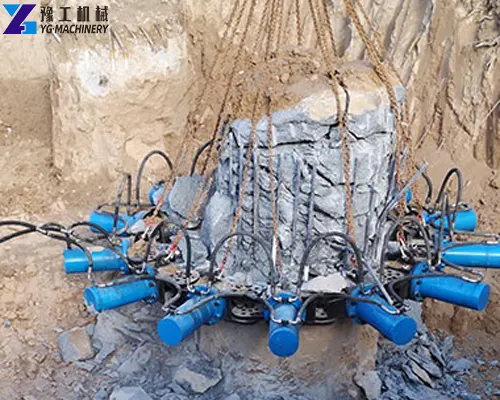

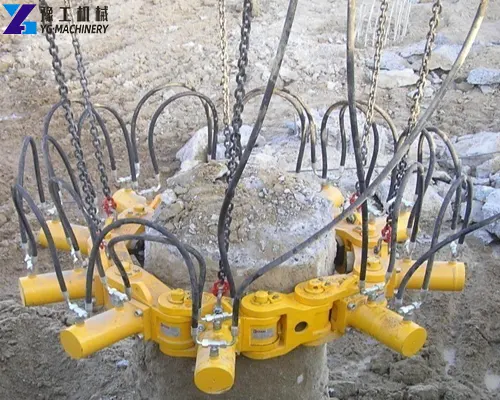

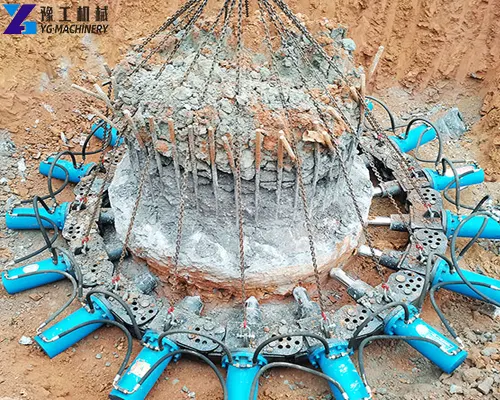

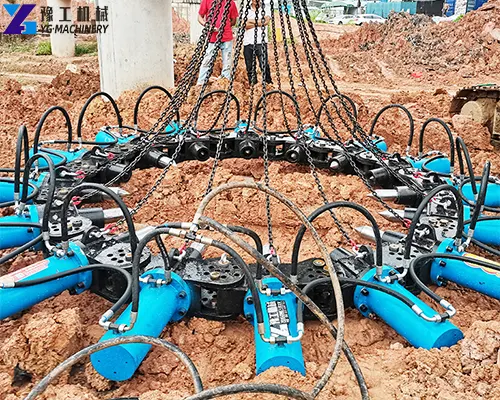

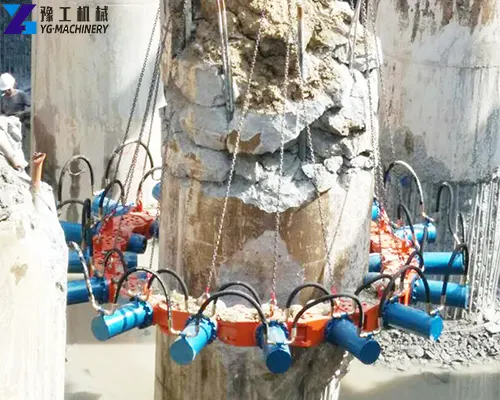

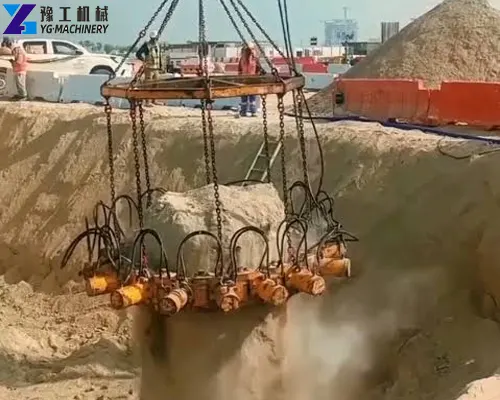

Foundation contractors in the Philippines face a common challenge: removing concrete pile heads quickly, cleanly, and without damaging the reinforcing steel. Manual jackhammering is slow, labor-intensive, and often results in uneven breaks that compromise pile integrity. The hydraulic pile breaker with 12 modules offers a proven solution. This excavator attachment uses hydraulic pressure to crack concrete around the pile head, leaving the rebar intact and producing a clean break at the cut-off level. The 12-module configuration is specifically matched with piles ranging from 1,300 mm to 1,500 mm in diameter and is designed for use with a 35-ton excavator.

Whether your project is in Metro Manila, Cebu, Davao, or elsewhere in the Philippines, YG Machinery can provide the right configuration for your foundation work. Send your pile diameter and excavator model to YG Machinery for a configuration check.

Get a Quote for 12-Module Configuration

Check YG Hydraulic Pile Breaker Technical Parameters

Module Number	PCS	4	8	9	10	11	12	13	14	15	16	17	18
Combination of the total weight	KG	1600	2640	2970	3300	3630	3960	4290	4620	4950	5280	5610	5940
Pile diameter range	mm	400-600	600-800	800-1000	1000-1150	1150-1300	1300-1500	1500-1650	1650-1800	1800-1970	1970-2200	2200-2360	2360-2500
Hydraulic excavator	T	20T-30T			30T-40T				Hydraulic system/pump station
Max.Thrust		300KN		Max. Cylinder required		20L/min		Machinery Tonnage		≥20T		Location pin Φ35
Max. Cylinder Trip		300mm		Chisel diameter		110mm		Single module weight		335KG
Max. Cylinder Pressure		300MPa		Max. Hoist Capacity		≤500mm		Single module size		1015865340mm

Contact Engineer for Module Selection

Philippine Sales Case: Why Contractors Need a Hydraulic Pile Breaker

YG Machinery has supplied hydraulic pile breakers to customers in the Philippines. The following highway project data demonstrates the performance of the same 12-module configuration.

The Philippines, with its rapidly growing infrastructure sector, presents significant opportunities for contractors who can deliver on schedule. Foundation work is often on the critical path of any construction timeline. For a recent 240-pile highway project—240 cast-in-place concrete piles ranging from 1,300 mm to 1,500 mm in diameter—the contractor initially relied on manual jackhammers. The productivity was limited to approximately 2 piles per day, which translates to an estimated 120 days to complete the pile-breaking work for the entire project.

The contractor was facing potential delays and penalty costs. They needed a solution that could accelerate the schedule without compromising quality. The YG 12-module hydraulic pile breaker was brought in and mounted on a 35-ton excavator.

“We were facing 2 months of delays and $300,000 in fines. The YG pile breaker saved us. Eight piles per day. No rebar damage. No noise complaints. Paid for itself in 3 weeks.”

How Did the 12-Module Pile Breaker Perform on a Verified Highway Project?

Before: Manual Jackhammer Method

Manual crews completed approximately 2 piles per day. At that rate, 240 piles would take an estimated 120 working days—four months of continuous pile-breaking labor. Each pile head required several hours of jackhammer work. Noise from the site was a project concern because a village was located nearby. There was also an ongoing risk that hand tools could nick or bend the rebar, creating rework delays.

After: 12-Module Hydraulic Pile Breaker

The contractor switched to a YG 12-module hydraulic pile breaker mounted on a 35-ton excavator. On the first day of operation, the machine completed 8 piles. Each pile head took approximately 30 minutes. At 8 piles per day, 240 piles would take an estimated 30 working days—roughly one-quarter of the manual duration.

The case reported no rebar damage and no noise complaints from the nearby village. The contractor reported that the equipment paid for itself in 3 weeks and finished the highway work on time, avoiding projected delays and penalties.

Disclaimer: These figures come from a specific highway project and are not a guaranteed result for every job site. Productivity depends on pile diameter, concrete strength, reinforcement arrangement, excavator performance, operator skill, site access, and working conditions.

Bridge Pile Breaking Case Study – Read More

Why Choose the 12-Module Configuration?

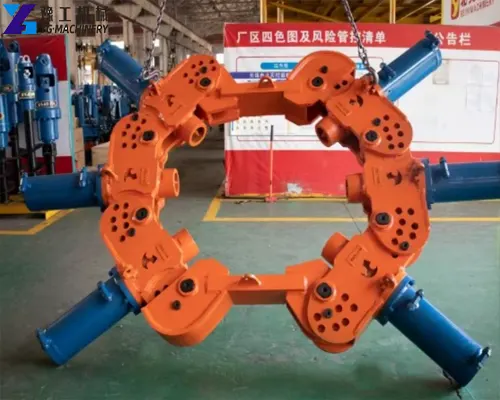

The number of modules on a hydraulic pile breaker is selected according to the pile diameter and the required working coverage around the circumference. Each module contains a hydraulic cylinder and chisel. More modules mean more contact points around the pile, which is necessary for larger-diameter concrete piles.

The verified 12-module configuration is matched with 1,300–1,500 mm piles. It is the appropriate choice for contractors working with large-diameter cast-in-place piles commonly found on highway bridges, port foundations, and heavy building structures.

The complete YG product family covers pile diameters from 400 mm to 2,500 mm through different module combinations. Available module quantities include 4, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, and 18 modules. This range means:

A 4-module or 8-module unit may suit small-diameter piles in the 400–800 mm range.
A 10-module or 11-module unit may suit medium-diameter piles around 900–1,200 mm.
The 12-module unit is verified for 1,300–1,500 mm piles.
13 to 18 modules are available for piles above 1,500 mm, subject to engineering confirmation.

The 12-module model should not be described as suitable for every pile size. The final configuration should be confirmed according to pile diameter, concrete strength, reinforcement layout, excavator capacity, and site conditions. YG engineers can recommend the correct module count after reviewing project details.

What Should Philippine Buyers Consider Before Ordering?

A hydraulic pile breaker is a significant capital purchase. Philippine contractors and equipment distributors should address the following practical questions before requesting a quotation.

1. Can the Machine Be Supplied to the Philippines?

YG Machinery has supplied hydraulic pile breakers to customers in the Philippines. Shipping arrangements, delivery port, and lead time should be confirmed with YG at the quotation stage.

2. What Pile Information Should the Buyer Provide?

The buyer should gather the following project details:

Pile diameter — Determines the number of modules required.
Pile type — Cast-in-place, precast, bored, or driven.
Number of piles — Affects the economic justification for purchase versus rental.
Concrete strength — Higher-strength concrete may require more breaking force.
Required pile-head breaking height — Affects the number of breaking cycles per pile.

3. What Excavator Information Is Needed?

The excavator is the carrier machine, so its specifications directly affect compatibility:

Excavator brand and model
Operating weight (the 12-module unit is recommended for a 35-ton excavator)
Hydraulic flow rate (the supplied data states a minimum of 20 L/min)
Hydraulic pressure
Auxiliary hydraulic circuit availability
Lifting capacity at working radius

4. How Is the 12-Module Configuration Selected?

YG engineers select the module count based primarily on pile diameter. The 12-module configuration is verified for 1,300–1,500 mm piles. If your piles fall outside this range, YG may recommend a different module count from the available 4–18 module range.

5. What Affects the Final Quotation?

The final price depends on the module count, customization requirements, mounting bracket for the specific excavator model, spare parts package, shipping destination, and any additional technical support services. Please confirm these items with YG Machinery before placing an order.

6. How Should Shipping and Port Delivery Be Confirmed?

The buyer should specify the preferred Philippine delivery port (e.g., Manila, Cebu, Davao, Subic) and confirm shipping terms, customs responsibility, and freight arrangements with YG. Do not assume shipping time or cost until YG provides a confirmed quotation.

7. What Technical Support Should Be Requested Before Shipment?

Request installation guidance, operator manual, maintenance schedule, spare parts list, and video or remote technical support. Confirm whether on-site commissioning is available and what language support is provided.

8. Inquiry Checklist

Before contacting YG, prepare the following information:

Pile diameter
Pile type
Number of piles
Concrete strength
Required pile-head breaking height
Excavator brand and model
Excavator operating weight
Excavator hydraulic flow
Excavator hydraulic pressure
Project location in the Philippines
Expected purchase date
Required delivery port

Find Your Application – High-Speed Rail, Bridge, Building

Frequently Asked Questions: Regarding YG’s Sale of the 12-Module Hydraulic Pile Breaker

Q1. What is a hydraulic pile breaker with 12 modules?

A1: A hydraulic pile breaker is an excavator attachment that uses hydraulic pressure to break concrete pile heads cleanly. The 12-module configuration is specifically matched with piles from 1,300 mm to 1,500 mm in diameter and is designed for use with a 35-ton excavator.

Q2. What pile diameter can the 12-module model handle?

A2: According to verified data, the 12-module configuration handles piles ranging from 1,300 mm to 1,500 mm in diameter. For larger or smaller piles, different module configurations are available, covering 400–2,500 mm in total with the full YG product family.

Q3. What excavator is recommended for the 12-module configuration?

A3: The recommended excavator size for the 12-module configuration is a 35-ton excavator, according to the verified case and product data.

Q4. Can YG Machinery supply the hydraulic pile breaker to the Philippines?

A4: Yes. YG Machinery has supplied equipment to customers in the Philippines and has a presence in over 50 countries worldwide.

Q5. How many piles can the machine break per day?

A5: In a verified case, the 12-module hydraulic pile breaker completed 8 piles on the first day of operation. Productivity is project-dependent and varies based on pile diameter, concrete strength, excavation equipment, operator skill, and site conditions.

Q6. Can the machine break concrete without damaging rebar?

A6: No rebar damage was reported in the verified case. This is one of the key advantages of the hydraulic pile breaker design.

Q7. What information is needed to request a quotation?

A7: YG Machinery requires: pile diameter, pile type, pile quantity, excavator model, hydraulic flow, hydraulic pressure, project location, and preferred delivery port.
