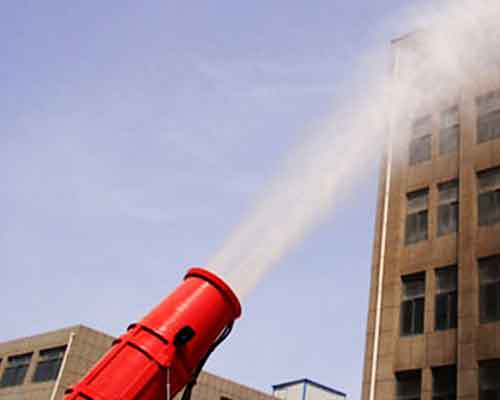

Fog cannon, which can also be called dust control fog cannon, water fog cannon, spray cannon, or fog cannon sprayer is a professional dust removal equipment. The fog cannon dust suppression is used to manage mining dust, which has a good effect on construction site dust and fog management. A large amount of dust pollution will occur during road construction, mining, transportation, storage, and some other construction activities. It is necessary to use a dust control fog cannon to solve the dust problems during construction. There are so many kinds of fog cannons for sale in YG Machinery, you can choose the suitable model based on the horizontal range you want to achieve. Check the parameter below and send us an inquiry to get a quotation quickly.
In addition, the fog cannon machine of YG Machinery can also be disinfected. We also have other disinfection machines, such as an intelligent disinfection door, disinfection tunnel, smart UV robot, automatic trolley/luggage sterilization machine, wet wipes machine, handheld spray gun, etc. At the same time, you can also click the link to jump to the corresponding page.【Whatsapp/Wechat/Phone/Skype】+86 136 1385 6800
Different Models of Fog Cannon Dust Suppression
Technical Parameter of Fog Cannon Machine:
|Electric||380V/50HZ,3 phase||380V/50HZ,3 phase||380V/50HZ,3 phase||380V/50HZ,3 phase|
|Cylinder material||Q235 Carbon steel||Q235 Carbon steel||Q235 Carbon steel||Q235 Carbon steel|
|Recycled water pipe||1400mm||1400mm||1400mm||1400mm|
|The machine size||1170*940*1700mm||1170*940*1800mm||1650*1200*2200mm||1700*1200*2200mm|
Uses of Fog Cannon Machine:
The Working Principle of Fog Cannon:
According to the theory of liquid atomization and air-jet, the water fog cannon uses a high-pressure pump to pressurize the liquid first, atomizes the water through a micro-atomizing nozzle, and then uses the high air volume and high wind pressure of the high-pressure jet fan to send the atomized water mist to a longer distance. So that the water mist can reach a larger area while covering a greater distance. During this process, the dust particles are in full contact with the water mist particles to become wet, and the wet dust particles will continue to absorb other dust particles and gradually condense into pellets. Then the dust particles will sink due to their gravity, which can reduce the amount of dust floating in the air.
The Composition of Fog Cannon Sprayer
- Water pump. It is the heart of the fog cannon, which can transport water from the tank to the nozzle, and then the water is atomized by high-pressure water flow. We mainly use the three-bar plunger pump with the advantages of simple structure, and easy maintenance.
- Blower. The function of the blower is to produce high-velocity airflow. When the blower impeller rotates, the high-speed airflow spurts out from the outlet, and the small fog droplets formed by the atomization of the nozzle are blown to the required area. The fog cannon suppression adopts the centrifugal blower with convenient driving, high wind pressure, high wind speed, and strong airflow penetration, which can not only ensure the spray range but also improve the atomization effect.
- Steering and positioning device. One is installed at the connection between the blower and the outlet pipe so that the outlet direction of the outlet pipe can be rotated 360°in the horizontal plane to adapt to the change of the working wind direction. The other is installed in the outlet pipe, which can adjust the elevation angle of the outlet to suit the needs of different spray heights.
- Spray nozzle. The effect of dust removal is closely related to the diameter of spray particles and the nozzle directly determines the diameter of the spray particles.
- Remotely controlled device. It can control the machine to start, and rotate remotely, which makes it more convenient and safe.
Seven Features of Fog Cannon for Sale in YG Machinery
- Long-range, wide-coverage, high efficiency, can achieve precision spray.
- The sprayed mist is fine and when it comes into contact with the dust, it forms a moist mist, which can suppress the dust quickly.
- Flexible supporting power, which can be equipped with electricity or be matched with a diesel generator power supply.
- The machine can be fixed and installed on the concrete platform or can be equipped with the supporting diesel generator set and installed on the transport vehicle.
- The operation is flexible. It can be controlled by remote control or manual control. The horizontal rotation and spray angle can be adjusted according to the construction needs.
- Compared with other dust suppression spraying equipment, the water consumption of water fog cannon can be reduced by 70%-80%, and the coverage area of water mist is much larger than that of other equipment.
- Various models can be chosen, the range can be selected according to the requirements.
Fog Cannon Price – YG Machinery Manufacturer
Depending on the range, the fog cannon for sale in YG Machinery is divided into several models with different prices. In addition, according to the mode of operation, the price of manual, semi-automatic, and fully automatic models are also different. However, as a professional manufacturer, all of our machines are sold directly, without a third party. We also have a handheld spray gun, disinfection door, disinfection tunnel, UV light robot, automatic trolley sterilization machine, glove making machine, face mask making machine, balloon making machine, condom making machine, disposable cup making machine, lunch box making machine, tissue making machine, paper bag making machine, etc. We can guarantee that the fog cannon price in our company is reasonable and competitive. Feel free to contact us for a quotation now, we will reply to you as soon as we can.【Whatsapp/Wechat/Phone/Skype】+86 136 1385 6800
