Rock Splitter

Hydraulic Rock Splitter for Sale
Hydraulic Rock Splitter for Sale

Hydraulic Rock Splitter Electric and Diesel Motor
Hydraulic Rock Splitter Electric and Diesel Motor

Hydraulic rock splitter is a popular type of rock splitter which is also called stone splitter and concrete splitter sometimes. The machine is widely used in rock splitting and partial reconstruction and demolition of reinforced concrete foundations because of its huge splitting force. It is also applicable to the demolition and reconstruction of the ground and walls which require strict control of impact and vibration. Of course, depending on the project you want to use it for, you will need to buy equipment of different specifications. The hydraulic rock splitter for sale in YG Machinery that can meet customers’ various needs will be your best choice.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Rock Splitter Machine
Rock Splitter Machine

Electric Rock Splitter Machine
Electric Rock Splitter Machine

Get a Free Quote

The Wedges with Length of 250mm, 350mm, and 450mm

Features and Wedges for Splitting Rocks
Features and Wedges for Splitting Rocks

Wedges of Hydraulic Rock Splitter
Wedges of Hydraulic Rock Splitter

The Technological Parameters of Hydraulic Rock Splitter:

Model YG-250 YG-350 YG-450
Wedge Length(mm) 250mm 350mm 450mm
Piston Stroke(mm) 90/220mm 90/220mm 90/220mm
Drilling Depth(mm) >500mm >700mm >900mm
Punching Diameter(mm) 42mm 46mm 46mm
Crack Width(mm) 10-20mm 10-20mm 10-20mm
Cleavage Time(s) 10-15/s 10-15/s 10-15/s
Splitting Force(T) 500t 800t 800t
Weight(kg) 240kg 250kg 260kg

Get a Free Quote

Hydraulic Rock Splitting Machine with Electric Motor And Diesel Motor:

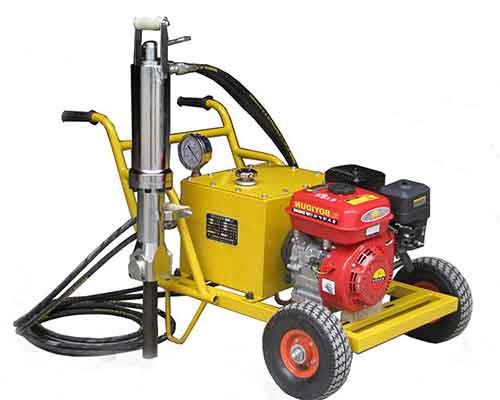

Hydraulic Rock Splitting Machine with Diesel Motor
Hydraulic Rock Splitting Machine with Diesel Motor

Hydraulic Rock Splitter with Electric Motor
Hydraulic Rock Splitter with Electric Motor

Get a Free Quote

The Working Principle of Hydraulic Rock Splitter:

The machine is designed according to the principle of wedge block that in the narrowest orifices outward can release great splitting force. A hydraulic rock splitter consists of a pump station and splitter. Operators only need to drill a hole of the specific diameter and depth on the rock, a concrete block that needs splitting. Then insert the wedge block set of the hydraulic rock splitter into the hole, which usually consists of an intermediate wedge and two reverse wedges. When the device is running, the high-pressure oil output from the pump station drives the oil cylinder which can produce huge thrust. The intermediate wedge moves forward between two reverse wedges through the action of hydraulic pressure, releasing great energy from the inside out, and splitting the rock in the predetermined direction within a short time.

Working Principle of Hydraulic Rock Splitter
Working Principle of Hydraulic Rock Splitter

Get a Free Quote

The Applications of Hydraulic Rock Splitter:

  1. Quarrying and mining industries, such as the mining, division, and removal of large pieces of waste rock.
  2. Engineering construction. The excavation of the tunnel, subway tunnel, artificial river, rock ditch, and other excavation projects.
  3. Demolition engineering, such as the demolition of concrete and reinforced concrete, demolition of old buildings, piers, and so on.
  4. Chemical industry, smelting production, and overhaul engineering.
  5. Various rescue and relief work, such as earthquake, mining, and some other clearance work, and traffic accident rescue work.
Application of Hydraulic Rock Splitter
Application of Hydraulic Rock Splitter

Get a Free Quote

The Advantages of Hydraulic Rock Splitter for Sale in YG Machinery:

  1. Very safe. The machine always works in a statically controlled environment, so it won’t create some hazards like other kinds of impact demolition and drilling equipment.
  2. Small size and lightweight. It can be used indoors or on a narrow site, as well as in underwater operations.
  3. The huge splitting force can be up to 800 tons.
  4. High efficiency. It can finish splitting in a very short time and can work continuously without interruption.
  5. Low operating and maintenance costs. It doesn’t require isolation or time-consuming and costly safety measures.
  6. The operation is simple and easy to learn, has convenient maintenance, and long service life.
  7. Environment-friendly and low noise. It won’t produce shock, noise, and dust when working which can work in densely populated areas and indoors without interference.
  8. High accuracy. The equipment can determine the direction of the split, the shape, and the size of the part that needs to be removed in advance.

Precautions for Using Hydraulic Rock Splitter:

  1. The drilling hole must be perpendicular to the parting surface and the depth is greater than 500mm. Otherwise, it will lead to the deformation of the intermediate wedge block and make the whole splitter machine disabled.
  2. Don’t insert the splitter head by shaking the hydraulic cylinder from side to side and don’t press the cylinder during splitting. Otherwise, it will lead to the deformation of the piston rod and cylinder sealing parts, resulting in hydraulic oil leakage.
  3. Try to handle the splitter gently and slowly when placing and taking out it and carrying it through the front and rear handles.
  4. Please, ensure that the seal holes are clean when replacing the seals on the hydraulic pump to prevent residue from affecting the sealing effect.
  5. Please don’t place the hydraulic cylinder upright before the operation, put it on the ground horizontally. Workers must stand in the hydraulic cylinder’s left and right far position to prevent the piston rod from flying out and hurting people.
  6. Check, whether the fastens on the pump, are loose before using it. If you find it loose, please tighten it in time.

How to Use the Machine Correctly?

  1. Connection. Connect the splitter to the oil port of the pump station which can be connected arbitrarily. But operators need to remember the pump station reversing valve and splitter open and close position.
  2. Switch the machine. Put the reversing handle in the middle position after the pipeline is connected, and then turn on the machine. The motor can be started several times to empty the air in the pipe if it is used for the first time or won’t be used for a long time. Turn off the motor when not in use to avoid overheating of oil due to idle agitation.
  3. Reversing. Rotate the reversing handle to one side, the middle wedge will be extended outward and the outer wedge will be opened. The reversing handle is placed in the middle position, and the canter wedge stops moving. Then rotate the reversing handle to the other side, the middle wedge is retracted and the outer wedge is closed. When the splitting is finished, place the reversing handle in the middle position.
  4. Drill the hole. First, choose the drill bits with a suitable size. Put the drill bits perpendicular to the splitting surface for drilling the hole. It’s better to use benchmarking to measure the drilling depth if the drilling depth is greater than 500mm. Adjust the drilling hole spacing appropriately according to the steel density when the split is concrete. The hole spacing can be appropriately adjusted depending on the hardness of the stone when the split is tone material.
  5. Extended service life. Extend the intermediate wedge out before use and apply special grease to the stressed surface and inner groove of the outer wedge. Apply grease on the surface of the outer wedge block when it has been used five to ten times, which can help reduce friction, increase actual splitting force, and extend the service life.
  6. The splitter should be inserted into the drill slowly until all the splitter is inserted.
  7. Only when the intermediate wedge is completely retracted, it can be removed vertically.

Rock Splitter Manufacturer – YG Machinery

Henan YG Machinery – is a top professional machinery manufacturer in China. Except for the hydraulic rock splitter for sale in our company, customers can also find some similar machines, such as wire saw machines, concrete wall saws, pile breaker machineshigh-frequency wall saws, excavator drill&splitting machinesfirewood splitter machines, hydraulic breaker machines, excavator drum cutters, excavator rock sawsmobile crushers, and excavator hydraulic shears, excavator rock splitters, for different uses. No matter what kind of machine you plan to purchase. Please feel free to send us an email and tell us your requirements at any time. We will provide you with the best service. The most important is that our machines are always of good quality and at competitive prices. And I’m sure we can maintain good cooperation.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
