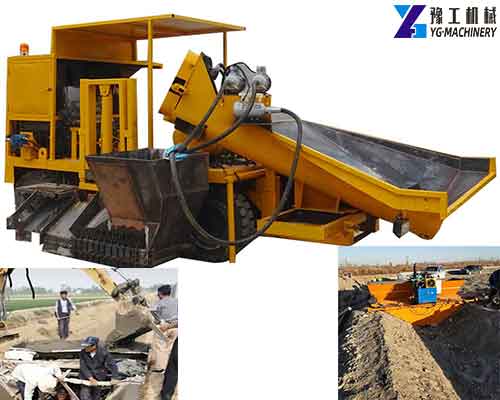

A fully automatic trencher machine is a one-time pouring of concrete. The shape and specification are customized according to the drawings. The shape is trapezoidal, rectangular, and U-shaped gutter. It can be produced automatically after feeding. Want to know the trencher machine price? Contact us now!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
Trencher Machine Parameter:
|Start mode||Electric start|
|Engine model||diesel engine|
|Walking mode||One in and two out|
|Ditching size/Width and depth||10-100,15-90,20-80, 25-60,30-50,40-40,|
|Walking device||Rubber wheel and track|
|Ditching speed||200 meters an hour|
|Drill tooth material||Alloy, manganese steel|

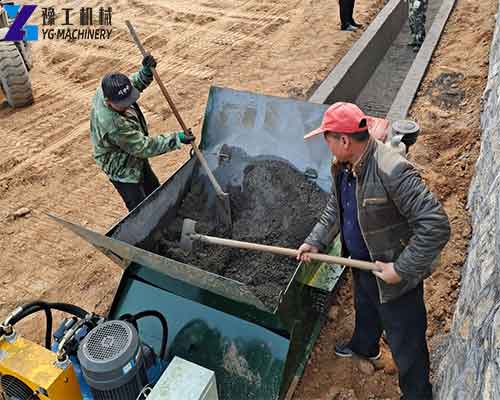

The Working Principle of Trenching Forming Machine:
First, start the electric vibrator to prepare for the blanking. When the concrete enters the propeller through the feeding hopper of the machine, start the hydraulic pump station and the oil cylinder to start the telescopic movement, and the propeller pushes the concrete into the U-shaped cavity formed by the channel forming mold. At this time, the forming mold acts as an inner mold tire, and the formed concrete is adsorbed on the wall of the channel repaired by the mechanical blade, and the top of the channel is also extruded and formed at the same time. At the same time, the vibration of the electric vibrator and the push of the hydraulic cylinder are used to generate extrusion and compact force, so that the guide rollers on both sides of the front of the machine body move linearly in the rails placed on both sides of the channel, so as to realize the function of automatic walking.
Concrete Ditch Forming Equipment Features:
- Cast-in-place, no template.
- One-time molding, high efficiency.
- High density, not bad for 20 years.
- Concrete self-control can control the quality of the project.
- Save money and improve efficiency.
- According to the configuration of different customized models, provide access to drawings.

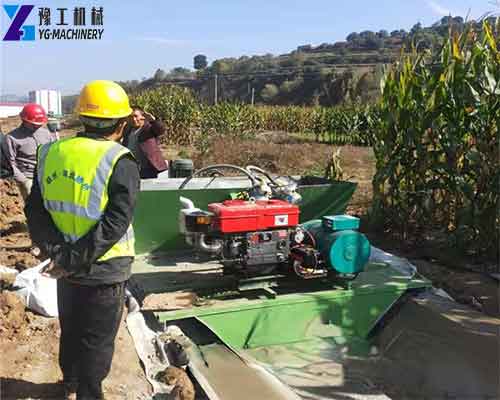

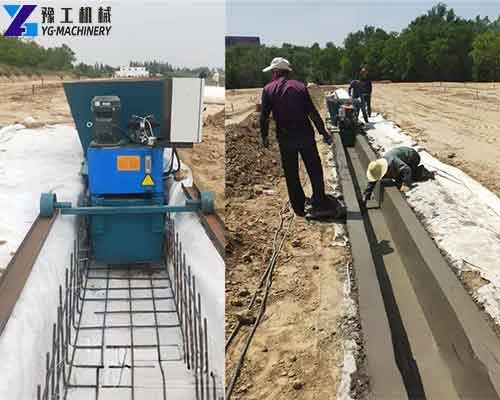

The Application Range of the Ditch Slip Form Machine:
Due to the simple and durable equipment, the cast-in-situ drainage and irrigation ditch slip form machine is widely used in farmland reconstruction, water conservancy projects, highway ditch drainage, high-speed railway ditch drainage, urban municipal drainage, aquaculture canals, etc. Lining construction of various channel concrete.
Nowadays, the transformation of agricultural canals is very common, and various regions are competing to participate in the development of water conservancy. In addition, there are various roadside ditches and drainage ditches. Channel canal forming machine, cast-in-place canal machine, ladder canal lining machine, etc. Different models have different construction methods, some are prefabricated water tank components, some are cast-in-place canals, some are template canals, etc., but They all have a common water channel standard, that is, the anti-seepage ability must pass the test to ensure that the life of the hard channel can reach 20 years without damage.

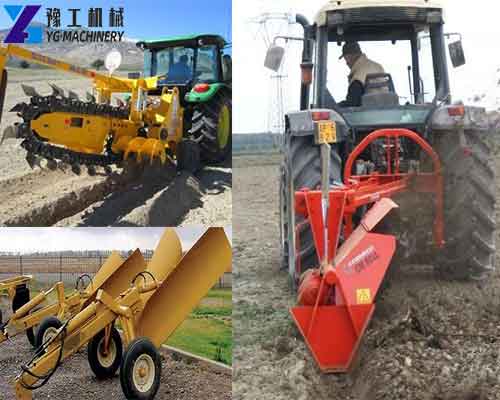

Other Attached Trencher Machine:
YG’s trenching machines can not only be used for various shapes of canals, but also can be installed with various attachments for more purposes, are more convenient to use, and can improve work efficiency. For example chain trencher machine, etc. These products are highly recognized and recognized for their seamless finish, high performance, robustness, and durability.

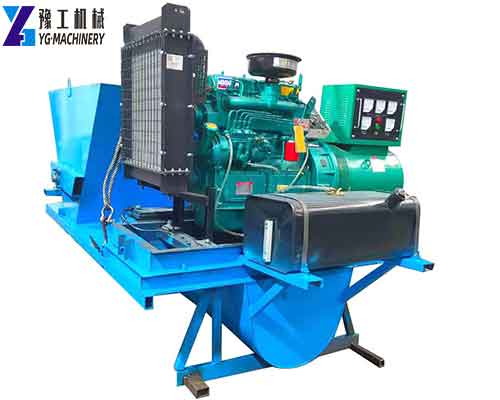

Trencher Machine Price – YG Machinery Manufacturer
One-time forming channel equipment can bring farmland canal construction industrialization, automation, completeness, and integration, improve the current farmland reconstruction irrigation canal work, and make the farmland water conservancy a unified appearance to show the new generation of canal irrigation technology capabilities.
The trenching machine of YG Machinery does not require too much manpower and is easy to operate and highly efficient. It has been exported to many countries in the world, such as the Philippines, Pakistan, Vietnam, Malaysia, Botswana, Tanzania, etc., with good feedback. Our trencher machine price is reasonable because they are the source manufacturers, so you don’t have to worry about excessive additional costs.
Besides, we have other hot-selling machines, such as curb machines, curb and gutter machines, micro excavators, mini concrete pumps, auto brick-making machines, road roller machines, asphalt crack filler machines, floor grinder machines, mortar spraying machines, fog cannons, shotcrete machines, sand blasting machines, GRC machines, etc. Contact now!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
