Hydraulic Pile Driver

Pile Driver for Sale
Pile Driver for Sale

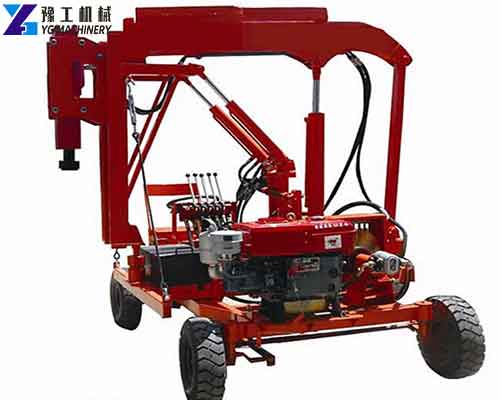

Hydraulic Pile Driver
Hydraulic Pile Driver

The hydraulic pile driver is a piece of equipment used to drive piles into the soil. Piles provide foundation support for buildings or other structures. The excavator piling machine is installed on various types of excavators with a tonnage of 20-65. It is suitable for driving 6-18m steel sheet piles, Larsen piles, U-shaped steel, I-beam, steel pipe piles; 4-9m photovoltaic cement piles, cement Square stakes, wooden stakes, etc. It is especially suitable for medium and short pile projects such as municipal projects, bridges, cofferdams, building foundations, etc., as well as projects such as river embankment, railway foundation pit support, elevated foundation pit support, or bridge pier foundation pit support. Want to know more details? Contact us now!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Hydraulic Pile Driver Technical Parameter:

Model YGL300R YGL400R YGL500R YGL600R YGL390H
Operating weight(KG) 7500 7600 7700 7800 7410
Engine Yuchai Yuchai Yuchai Yuchai Yuchai
Engine Model YCD4J23G/4BTA3.9-C100 YCD4J23G/4BTA3.9-C101 YCD4J23G/4BTA3.9-C102 YCD4J23G/4BTA3.9-C103 YCD4J22G
Power(KW) 82 82 82 82 85
Emission standard National II National II National II National II National II
Hydraulic pump brand Domestic Domestic Domestic Domestic Domestic
Distributor brand Domestic Domestic Domestic Domestic Domestic
Slewing motor brand Domestic Domestic Domestic Domestic Domestic
Walking motor brand Domestic Domestic Domestic Domestic Domestic
Dimension(L*W*H) 4800x1980x2900mm 5800x1980x2900 6800x1980x2900 7800x1980x2900 4500*2260*2970
Driving mode Hydraulic motor Hydraulic motor Hydraulic motor Hydraulic motor Hydraulic motor
Hammerhead model 100 100 100 100 Hydraulic hammerhead
Optional Accessories The remote control can be installed
A level can be installed
A diameter less than 180mm can be equipped with dust collection

Get a Free Quote

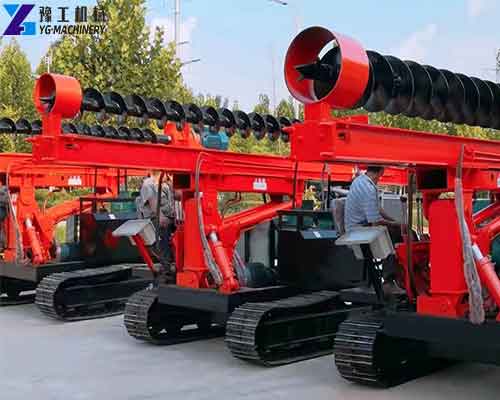

Hydraulic Pile Hammer
Hydraulic Pile Hammer

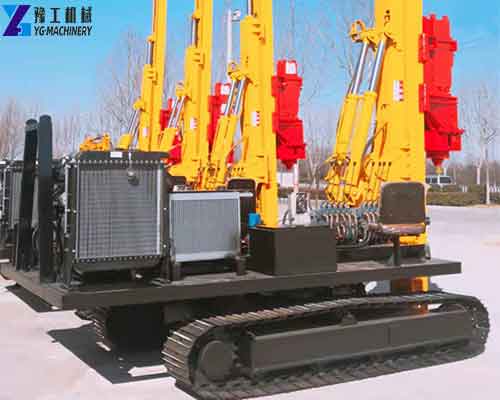

Vibratory Pile Driver
Vibratory Pile Driver

How do Vibratory Pile Drivers Work?

Vibratory pile drivers machines also known as vibro drivers and vibratory hammers work on the idea of reducing the resistance of the ground with vibration and by changing the formation of the ground. The vibratory pile driver machine transfers vertical vibrations to the pile via the hydraulic clamp. This, in turn, transfers vibration to the ground which reduces the friction between the pile and the ground allowing the pile to be driven or extracted with less force. The pile is driven into the ground by a combination of the vibrator’s weight and the centrifugal force it produces.

12 Featurers of Screw Vibratory Pile Driver:

  1. Save time and cost.
  2. Light and user-friendly.
  3. 90-degree tilting of tilting type.
  4. High-quality electrical harness.
  5. Suitable for underwater operation.
  6. Faster soil driving and extraction.
  7. 360-degree rotation for easy operation.
  8. Has environmentally-friendly technology.
  9. Small and easy to transport and maintain.
  10. For various types of soil and pile types of work.
  11. Lower noise level than other vibration equipment.
  12. Can be used depending on both the crane and the excavator.

Get a Free Quote

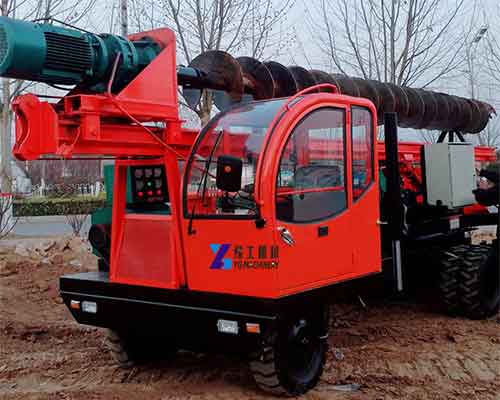

Small Pile Driver
Small Pile Driver

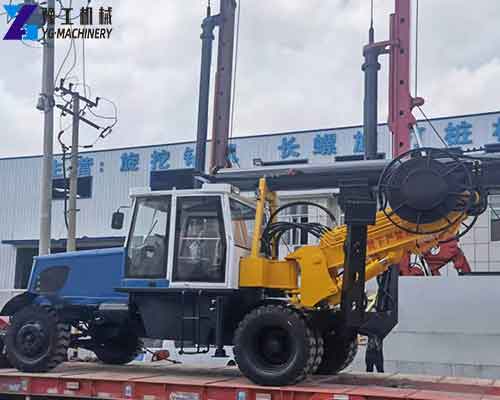

Vibratory Pile Driver for Excavator
Vibratory Pile Driver for Excavator

Hydraulic Pile Driver Manufacturer – YG Machinery

The hydraulic rotary press pile driver is a multifunctional pile driving machine for solar pile projects, with 360 degrees of freedom to rotate, and a multi-angle pile function. The machine with diesel a powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi-angle pile, high precision, durable, time-saving, labor-saving, and, especially for engineering construction in the field. In addition, we also have rotary drilling rigs, anchor drilling rigs, crawler DTH drilling rigs, horizontal drilling rigs, hydraulic drilling rigs, trailer water well drilling rigs, tractor water well drilling rigs, crawler water well drilling rigs, small water well drilling rigs, down the hole drilling rigs, diamond core drilling rigs, water detector machines, portable air compressors, mud pumps, full hydraulic core drilling rigs, core drilling rig for mining, full hydraulic core drilling rigs, etc. Contact us to know more!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
