Outdoor infrastructure construction, emergency rescue, and large-scale outdoor events commonly face pain points such as insufficient nighttime lighting, cumbersome wiring, and slow relocation across multiple locations. Traditional temporary lighting fixtures have limited coverage, require external power, and are completely unusable in remote areas without electricity. Portable light tower generators, also known in the industry as mobile lighting vehicles, lifting lighting towers, diesel generator-lighting integrated units, or emergency lighting towers, are mobile lighting devices that integrate a generator set, lifting mast, LED light sets, and a towing chassis. Their core function is to provide large-area, high-brightness lighting for outdoor scenarios without external power, replacing the traditional combination of fixed light poles and external generators, offering greater flexibility and faster deployment. It is the mainstream lighting solution for outdoor nighttime operations.

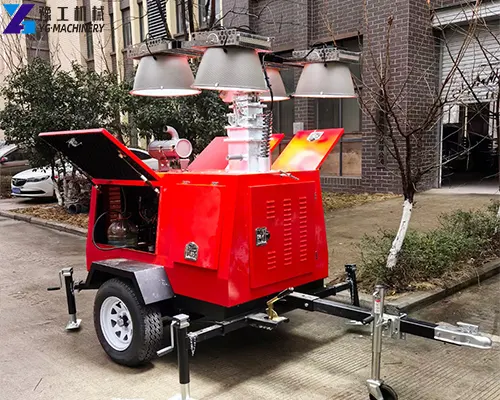

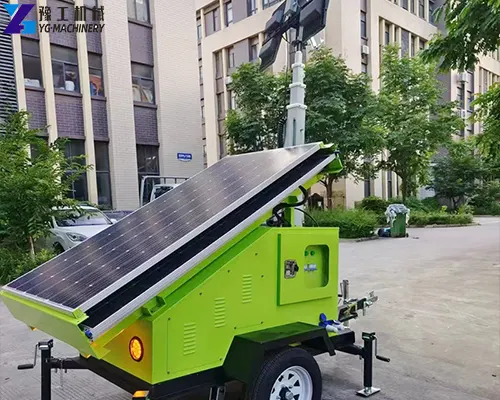

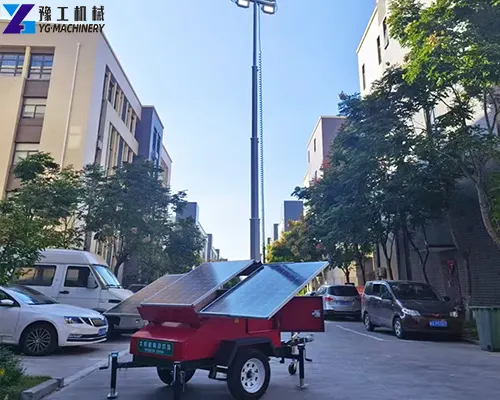

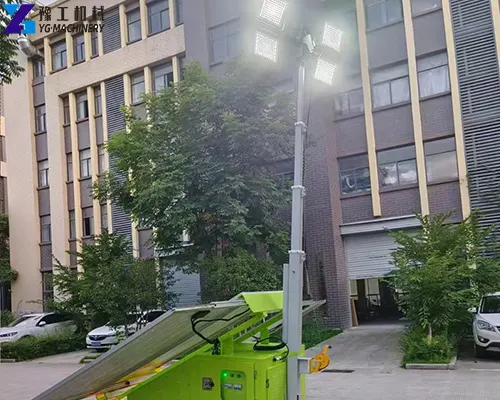

YG, as a professional mobile light tower manufacturer, primarily offers diesel-powered lifting lighting towers, while also offering solar-powered and lithium-ion battery models to suit different scenario needs. Our products are currently exported in bulk to Saudi Arabia, Dubai, the UAE, Nigeria, Kenya, the Philippines, Peru, Australia, Mexico, and other countries. They are widely applicable to infrastructure construction, mining operations, emergency rescue, outdoor events, and other scenarios, and are especially suitable for areas with underdeveloped power infrastructure and high demand for outdoor work. If your projects frequently involve outdoor or nighttime construction, then this is your best choice. Contact us now for more information.
Hot-sale YG Portable Light Tower Generator Technical Parameter
| Model | YG6000 | YG9000 |
| Maximum height of mast | 6m (Other Height is optional) | 9m (Other Height is optional) |
| Elevation | Mechanical / Electric | Mechanical / Electric |
| Raising/lowering mast | Winch / Button | Winch / Button |
| Turning angle | 358 degrees | 358 degrees |
| Stage | 3 ( 2-3 is optional) | 3 ( 2-3 is optional) |
| Lighting | ||
| Total power of lamps | 4×1,000Watts | 4×1,000Watts |
| Type of lamp | Metal halide | Metal halide |
| Light capacity | 4×88,000lumen | 4×88,000lumen |
| Voltages | 120, 220, 230, 240Volts | 120, 220, 230, 240Volts |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Lifetime of lamp | 5,000hours | 5,000hours |
| Working temperature | ≤85°C | ≤85°C |
| Protection grade | IP54 | IP54 |
| Characteristics of generator set | ||
| Engine brand | Jet Power | YANMAR |
| Rated power | 5.0kw/50Hz 5.5kw/60Hz | 7.2KW 50Hz / 8KW 60Hz |
| Engine model | 188FA – Air-cooled Diesel | 403D-11G / 3TNV82A-GGE |
| Intake system | Natural Aspiration | Natural Aspiration |
| Engine speed | 50Hz 3000rpm, 60Hz 3600rpm | 50Hz 1500rpm, 60Hz 1800rpm |
| Type | Single cylinder, air-cooled | Vertical 3-cylinder, water-cooled diesel |
| Starting system | Electric | Electric |
| Alternator | 2-pole, brushless | STAMFORD / Jet Power |
| Fuel tank capacity | 100L | 100L |
| Fuel consumption at 100% load | 1.85L/H | 2.0L/H |
| Max continuous running time | 60Hours | 50 Hours |
| Control system | Key control panel | Digital control panel (DEEP SEA) |
| Power Outlets | 2 | 2 |
| Trailer | ||
| Tow hitch | Ring / Ball hitch | Ring / Ball hitch |
| Stabilizer Supports | 5 pcs * Manual | 5 pcs * Manual |
| Wheel Size | 16′ | 16′ |
| wheel Qty | 2 pcs | 2 pcs |
| Brakes System | Manual | Manual |
| Canopy | With two doors for access for easy maintenance, Detachable Roof | |
| Dimensions (L*W*H) & Weight | ||
| Storage | 2650*1300*2450mm | 2650*1300*2450mm |
| Working | 2650*2400*8000mm | 2650*2400*8000mm |
| Weight | 680kg | 980 |
Structural Composition and Key Components of a Mobile Lighting Beacon
1. Lighting System (Lamp Fixtures)
The top of the beacon is typically equipped with 4 or 6 high-power LED floodlights. LED lights have significant advantages over traditional metal halide lamps:
- High Luminous Efficacy: Single-lamp luminous flux can reach 30,000-50,000 lumens (LM), and the total luminous flux of the entire system can reach 120,000-300,000 LM
- Long Lifespan: LED lamp chips have a lifespan exceeding 50,000 hours, far exceeding the 6,000-10,000 hours of metal halide lamps.
- Low Energy Consumption: At the same brightness, LEDs save approximately 60%-70% more energy than metal halide lamps.
- Instant On: No preheating time required; maximum brightness is reached instantly.
- The lamps support 360° horizontal rotation and pitch angle adjustment, achieving illumination without blind spots.
2. Telescopic Mast System
The mast determines the lighting height and coverage area. Mainstream configurations include:
- Material: High-strength aluminium alloy or galvanised steel, balancing lightweight and wind resistance.
- Number of sections: Typically 3-4 sections of a sleeve-type structure.
- Raising height: Commonly available in 7m, 8m, and 9m heights.
- Lifting method: Manual winch, electric winch, or hydraulic lifting.
- Wind resistance: Can withstand wind speeds of 50-80 km/h when raised.
3. Power System (Generator Set)
The power system is the “heart” of the lighthouse, directly determining its range and applicable scenarios. Three common power options:
| Power Type | Features | Battery life | Applicable Scenarios |
| Diesel Generator | Powerful, long-range, and highly reliable | 60-100 hours (dependent on sunlight; | Heavy construction, mining, long-term continuous operation |
| Solar + Battery | Zero emissions, zero noise, and fuel-free | With battery, it can last 3-7 nights) | High environmental protection requirements, noise-sensitive areas |
| Hybrid Electricity | Solar power priority, supplemented by generator | 80-150 hours | Long-term deployment, remote areas |
4. Mobile Chassis and Trailer System
- Chassis Type: Single-axle or dual-axle trailer chassis, equipped with a towing device.
- Tires: Pneumatic rubber tyres or solid tyres, suitable for highway towing and bumpy construction site surfaces.
- Braking System: Equipped with inertia braking or handbrake to ensure road transport safety.
- Outrigger System: Four hydraulic or manual outriggers to ensure overall stability when the mast is raised.
5. Control System
- Centralised Control Panel: Integrates generator start/stop, light switch, lifting control, and voltage/frequency display.
- Safety Protection: Overload protection, leakage protection, oil alarm, high temperature alarm, lifting limit switch.
- Optional Remote Control Operation: Wireless remote control controls lifting and light angle, eliminating the need for operators to climb.
What Is the Working Principle of a Mobile Lighting Tower?
- Step 1: Towing and Positioning. The tower trailer is moved to the work location requiring illumination using a towing device, and the support legs are lowered to secure the entire unit.
- Step 2: Starting the Generator. The control panel is opened, and the diesel generator set is started. The generator produces mechanical energy by burning diesel fuel, driving an AC generator to output stable power. An AVR automatic voltage regulator ensures stable output voltage.
- Step 3: Raising the Mast. The folding telescopic mast is raised section by section to the working height (7-9 meters) using an electric or hydraulic lifting system. During raising, a locking device ensures each mast section is securely locked.
- Step 4: Adjusting the Illumination Angle. The lamp head supports 360° horizontal rotation and pitch angle adjustment. Operators can manually adjust or control it via remote control as needed to ensure the beam covers the target work area.
- Step 5: Continuous Operation and Monitoring. The generator set continuously supplies power, and the control panel displays parameters such as voltage, frequency, and oil level in real time. The system automatically alarms and protects against low oil levels or high temperatures. After the operation is completed, the mast is retracted, and the generator is turned off in reverse order before relocation.
Which Industries and Scenarios Are Suitable for Portable Lighting Towers?
- Construction Site Nighttime Construction: Nighttime lighting for residential buildings, municipal roads, bridges, tunnels, etc.
- Mining and Quarrying Operations: Nighttime lighting for blasting, mining, and transportation areas in open-pit mines.
- Emergency Rescue and Disaster Relief: Nighttime search and rescue and command lighting at disaster sites such as earthquakes, floods, and typhoons.
- Large Outdoor Events: Site lighting for sporting events, open-air concerts, exhibitions, and temporary parking lots.
- Railway and Highway Maintenance: Nighttime road repair and railway maintenance construction lighting during low-traffic periods.
- Oil and Gas Operations: Nighttime operation lighting for drilling platforms and field pipeline construction.
- Ports and Logistics Parks: Nighttime loading and unloading lighting at docks and nighttime patrol lighting for large warehousing parks.
- Agriculture and Landscape Engineering: Nighttime operation lighting for large farms and nighttime construction lighting for landscaping projects.
FAQ: Frequently Asked Questions about the YG Mobile Lighting Towers
Q1: As a mobile light tower manufacturer, what energy types do you offer?
A1: We offer three types: diesel, solar-powered lithium-ion, and hybrid. Choose according to your needs. For long-range operation in remote areas, choose the diesel model; for environmentally friendly zero-emission models, choose the solar model. Custom configurations are available for all.
Q2: What factors affect the price of a mobile lighting tower?
A2: It is mainly affected by the power of the light units, lifting height, generator configuration, noise level, and energy type. The basic model offers the best value for money. Upgrades can be made for special scenarios.
Q3: Can the lighting tower be used outdoors in rainy weather?
A3: Yes, the entire unit has an IP65 protection rating. Both the light units and the generator are waterproof, allowing normal operation in light to moderate rain. It is recommended to suspend operation during extreme heavy rain to protect the equipment and extend its lifespan.
Q4: Is the equipment easy to transport and relocate?
A4: It uses a high-speed towing chassis and can be towed by ordinary pickup trucks and off-road vehicles. Highway speeds can reach 80 km/h, making relocation for multi-location projects very flexible and requiring no additional hoisting.
Q5: Is daily maintenance complex?
A5: It’s not complicated. Routine maintenance only requires periodic checks of the engine oil, filter, and battery. We provide a complete maintenance manual, and ordinary workers can complete all maintenance tasks after simple training.
Q6: Can you customise special heights and power ratings?
A6: Yes, we support customisation of lifting height, light unit power, unit brand, special protection configurations, etc. We can create a customised solution based on the customer’s specific usage scenario.
