Hydraulic Static Pile Driver

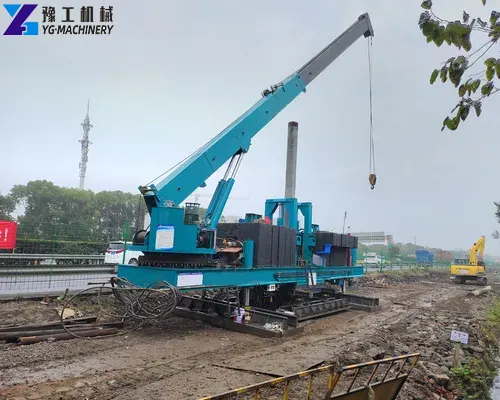

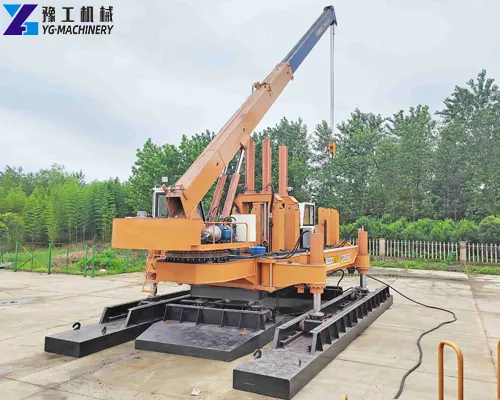

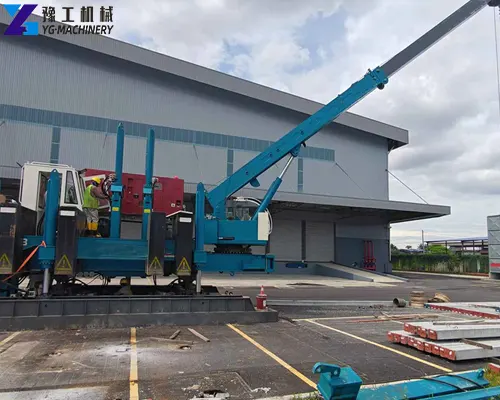

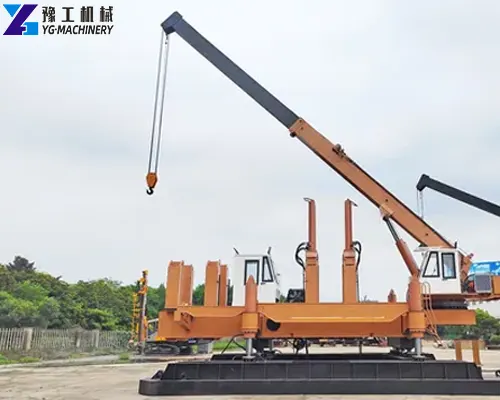

Are you troubled by the deafening noise and vibrations caused by diesel impact hammers when working in residential areas or city centers? The YG hydraulic static pile driver replaces impact hammering with “static pressure,” allowing piles to be driven as smoothly as pressing in a thumbtack. Also known simply as a static pile driver or hydraulic pile press, this equipment utilizes hydraulic static force to press prefabricated piles—such as concrete piles, steel pipe piles, or H-beams—into the ground.

Unlike traditional impact hammers and vibratory pile drivers, the hydraulic static pile driver generates neither impact forces nor vibrations during operation, earning it the reputation of “green” or non-vibratory pile driving equipment. Contact YG today for more product information.

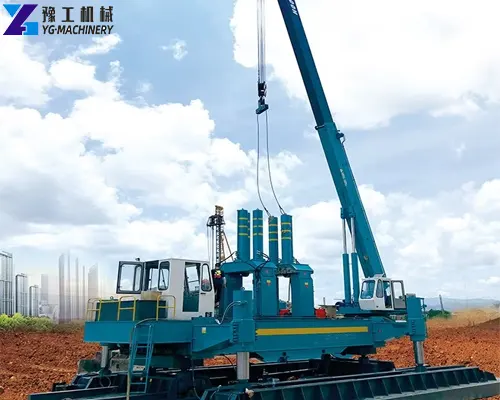

Perfect for Urban Construction Sites – Low-Noise & Vibration-Free

YG Hydraulic Static Pile Driver Technical Parameters

Contact Engineer for Site-Specific Configuration

Core Functions and Technical Features of Hydraulic Static Pile Drivers

1. Fully Hydraulic Static Pile Driving System

This is the hallmark of a hydraulic static pile driver. It uses a hydraulic cylinder to continuously apply pressure, smoothly pressing the pile into the ground.

• Pile driving force: Adjustable from 80 to 1200 tons.
• Pile driving speed: Steplessly adjustable from 0 to 8 m/min.
• Maximum pile driving depth: 30- 50 meters.

2. Intelligent Pressure Control System

Utilizes PLC + sensor closed-loop control:

• Real-time display of pile driving force and depth.
• Automatic recording of construction data.
• Automatic overpressure protection to prevent pile damage.

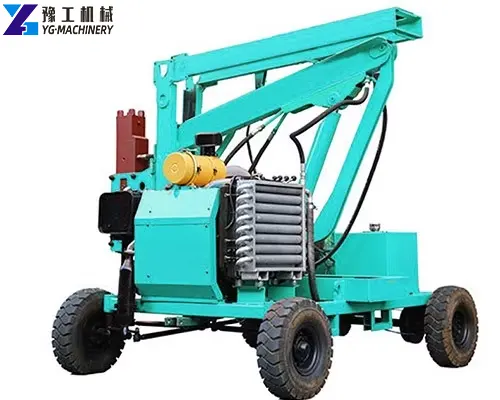

3. Multi-Pile Type Adaptability

Hydraulic pile clamps can be quickly replaced:

• Suitable for square piles (200- 600 mm).
• Round piles (PHC pipe piles, diameter 300- 800 mm).
• H-beam steel piles (200- 500 mm).
• Irregularly shaped piles (customized clamps).

4. Walking System

Some high-end models are equipped with a walking chassis:

• Low ground pressure, suitable for soft soil foundations.
• On-the-spot turning, highly maneuverable.
• No auxiliary crane required, self-transferring.

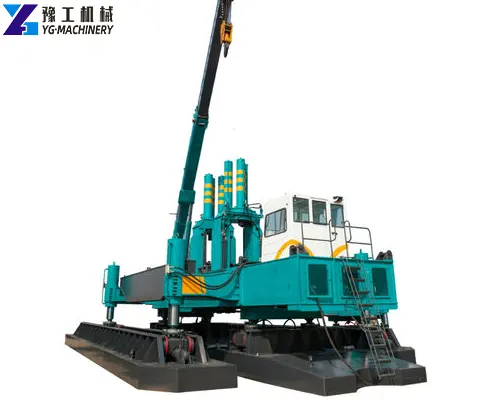

5. Environmentally Friendly and Energy-Saving Design

• Low-noise diesel engine (<85 dB).
• Hydraulic system energy recovery.
• Optional electric drive (zero emissions).

Check In-Stock Availability & Lead Time

Application Areas: Which Projects Are Suitable for Static Pile Drivers?

1. High-rise residential and commercial buildings

• Apartment building and office building foundation construction
• Large shopping mall and hotel pile foundation projects
• Urban complex projects

2. Industrial plants and warehouses

• Factory workshop pile foundations
• Logistics and warehousing centers
• Heavy equipment foundations

3. Municipal infrastructure

• Bridge pier foundations
• Subway station pile foundations
• Underground utility tunnel projects

4. Urban renewal and reinforcement

• Old residential area renovation
• Existing building foundation reinforcement
• Protective construction of historical buildings

5. New energy projects

• Photovoltaic power station pile foundations
• Wind power generation foundations
• Charging pile foundation construction

6. Port and wharf projects

• Wharf pile foundations
• Breakwater foundations
• Riverbank reinforcement

7. Railway and highway construction

• Railway bridge foundations
• Highway interchanges
• Roadbed reinforcement piles

8. Water conservancy and river management

• Elevator reinforcement
• Riverbank protection piles
• Water conservancy facility foundations

Find Your Application – Bridge, Building, Airport Foundations

Frequently Asked Questions About YG Hydraulic Static Pile Drivers

Q1: For what geological conditions is the hydraulic static pile driver suitable?

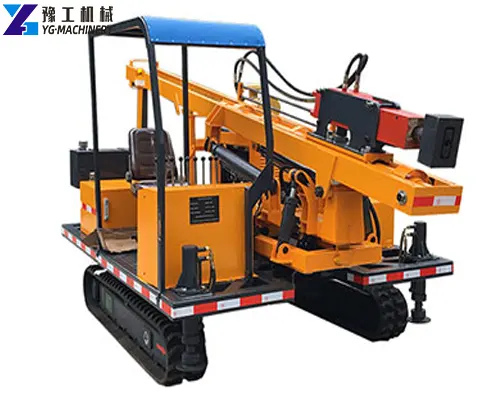

A1: The hydraulic static pile driver is best suited for soft soil, clay, silt, and medium-dense sand layers. For hard soil layers and strata containing gravel, it can be used in conjunction with water jetting or pre-augering methods. It is not suitable for direct pressing into rock formations.

Q2: What types of piles can the hydraulic static pile driver install?

A2: It can install precast concrete square piles, prestressed concrete pipe piles (PHC piles), steel pipe piles, H-beam piles, and steel sheet piles. By changing the pile clamping box, the same machine can accommodate piles of various cross-sectional sizes and shapes.

Q3: How much site space does the equipment require?

A3: The machine’s own operating footprint is generally 10–15 meters long and 6–9 meters wide. However, considering pile storage areas, maneuvering space for lifting piles, and access paths, it is recommended to reserve a working area of ​​at least 30 meters by 20 meters. For confined sites, smaller tonnage models can be selected.

Q4: How many piles can a hydraulic static pile driver install in a day?

A4: Taking a 400-ton class machine as an example, under standard geological conditions, a single unit can complete the installation of 30–50 piles in one shift (8 hours), depending on pile length, soil conditions, and the time required for auxiliary processes. Operating multiple units simultaneously can further shorten the construction schedule.

Q5: What is the service life of the hydraulic static pile driver?

A5: With proper use and regular maintenance, the main structure of the hydraulic static pile driver can last 10–15 years. Core hydraulic components (pumps, valves, cylinders) can last 5–8 years if well-maintained, while seals and wear parts require periodic replacement.

Q6: What certifications are required for overseas export?

A6: YG hydraulic static pile drivers have obtained ISO 9001 quality management system certification; CE certification (for export to the EU) and SGS inspection reports are available. Specific certification requirements for the destination country can be confirmed with YG Machinery prior to placing an order.
