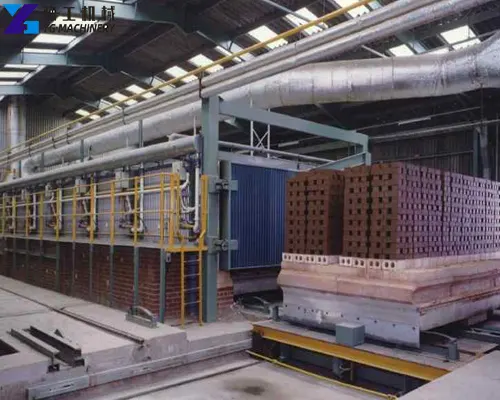

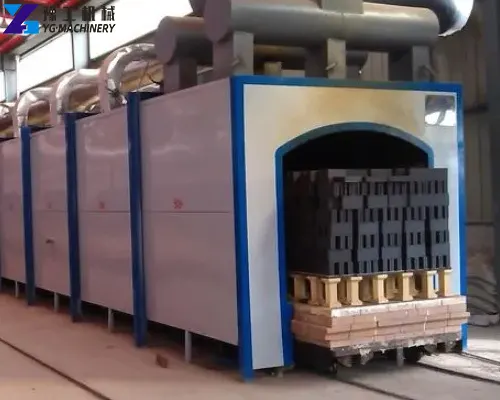

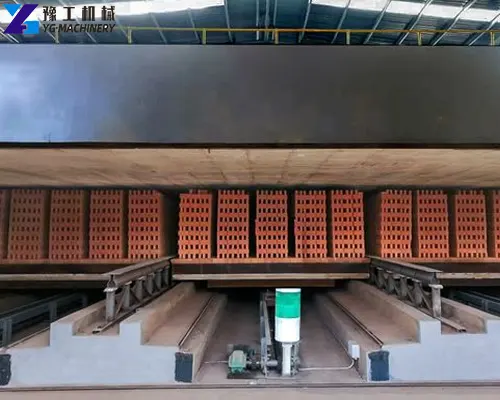

Automatic Tunnel Kiln

An automatic tunnel kiln for industrial firing is a continuous furnace that transports products on kiln cars through preheating, firing, and cooling zones in a single uninterrupted process. Unlike batch kilns that must be loaded, fired, cooled, and unloaded in separate cycles, the tunnel kiln operates continuously—reducing downtime and increasing production capacity.

The term “tunnel kiln” refers to a continuous firing furnace constructed on-site, where kiln cars carry products through the kiln chamber. These kilns are widely used in heavy clay industries, including brick manufacturing, ceramic tile production, sanitary ware, and refractory processing.

YG Machinery supplies automatic tunnel kilns for building materials such as hollow bricks, solid bricks, perforated bricks, and facing bricks, as well as for tiles, sanitary ware, and refractories. The system supports multiple fuel types—natural gas, coal, oil, and biomass—with fully automatic combustion control and PLC/HMI operation.

The Problems Brick Plants Face Before Upgrading

• Manual operation is complex and people-dependent. Batch firing relies on experienced firemen reading the kiln by eye. When skilled staff retire or leave, firing quality drops, and labor costs keep rising every year.
• Batch kilns cap your capacity. Each cycle means loading, firing, cooling, unloading, and reheating — the kiln sits idle for large parts of every day, and output cannot keep up with steady order books.
• Fuel is wasted on every cycle. Reheating a cold kiln structure and cooling it back down sends heat up the chimney instead of into the product. Poor insulation and uncontrolled combustion air make the waste worse.
• Temperature is uneven. Hot spots over-fire bricks while cold spots leave them under-fired, so strength, color, and dimensional consistency vary across the same kiln load.
• Bricks crack. Fast, uncontrolled heating and cooling — especially in the critical preheating and cooling stages — cause thermal shock, internal stress, and visible cracking in green bricks.
• Yield is unpredictable. Rejection rates swing from shift to shift, making planning, pricing, and customer promises difficult.

Request Turnkey Project Solutions – Design, Build, Train

 Technical Specifications of  YG Automatic Tunnel Kiln

The following values are typical for industrial tunnel kilns. Final specifications depend on product type, capacity requirements, and plant layout.

Typical values; final specifications depend on product, capacity, and plant layout.

Find Your Application – Ceramics, Refractories, Sanitaryware, Solid Waste

How the Automatic Tunnel Kiln Solves These Problems

1. Continuous operation. Once started, the kiln runs without interruption. This eliminates the downtime associated with batch kiln loading and unloading, enabling consistent production around the clock.
2. Precise temperature control. PLC and PID control systems automatically regulate each zone, minimizing temperature differences across the kiln and ensuring uniform firing conditions for every brick. Combined with an m-value control system to manage excess air, this approach can further improve temperature stability and fuel efficiency.
3. Automatic kiln car handling. Hydraulic pushers move the train of cars through the kiln at a programmed speed, allowing production adjustments for different product sizes without stopping the kiln.
4. Fuel flexibility. The kiln can be configured to operate on natural gas, coal, furnace oil, or biomass gas, depending on local availability and cost.
5. Energy recovery. Heat from the cooling zone can be recovered and redirected to the preheating zone, reducing fuel consumption.
6. Reduced labor requirements. Automation reduces the need for manual intervention in temperature control, car movement, and fuel feeding—lowering labor costs and minimizing human error.

Workflow: From Green Brick to Finished Product

The tunnel kiln process follows a continuous flow:

1. Green brick loading. Green bricks (formed and air-dried) are loaded onto kiln cars. The stacking pattern must ensure adequate channels for hot air circulation; research indicates that the arrangement of bricks and the gaps between them directly affect heat distribution.
2. Drying. The kiln cars enter the drying zone, where waste heat from the cooling zone is used to remove residual moisture from the bricks.
3. Preheating. As the cars move forward, they pass through the preheating zone, where temperature is gradually increased to prepare the bricks for firing without causing thermal shock or cracking.

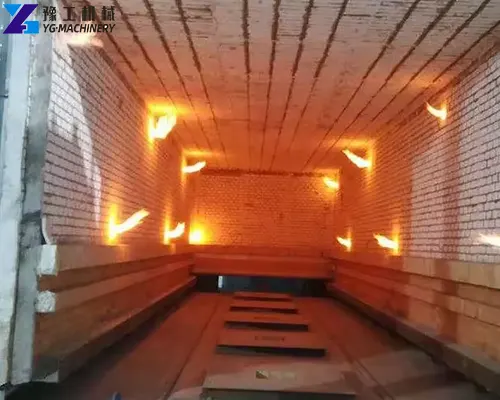

4. Firing. The bricks reach the firing zone, where the temperature is held at the required level for the specified duration. For clay bricks, this typically ranges from 800°C to 1,200°C; for advanced ceramics and refractories, up to 1,850°C. Gas flow direction can be adjusted to ensure even heat distribution—a design feature employed in certain continuous kiln configurations.
5. Cooling. After firing, the bricks pass through a controlled cooling zone. Heat from this zone can be recovered and redirected to the drying or preheating zones to reduce overall fuel consumption.
6. Unloading. The cooled bricks are unloaded from the kiln cars at the exit end, ready for sorting, packaging, or further processing.

Applications of Tunnel Kilns (Suitable for Different Finished Products)

Get 12-Month Warranty & Lifetime Support – Learn More

Frequently Asked Questions About YG Automatic Tunnel Kiln for Industrial

Get a Custom Tunnel Kiln Proposal and Quote

Send us the details below, and our engineering team will size the kiln, dryer, and car system for your plant:

• Brick type (hollow/solid/perforated/facing/ceramic/refractory)
• Brick size (mm)
• Target daily output (pieces/day or tons/day)
• Raw material (clay, shale, coal gangue, fly ash, etc.)
• Planned fuel (natural gas/coal / dual fuel)
• Workshop dimensions (length × width × height, available site plan if possible)
• Name/company/email/phone/country
