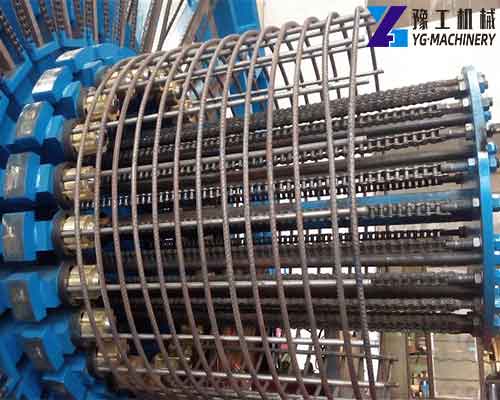

Automatic Reinforcing Wire Mesh Welding Machine
Automatic Reinforcing Wire Mesh Welding Machine

The reinforced cage winding machine is the latest practical type of steel cage external stirrup winding machine. Compared with the CNC steel cage roll welding machine, its advantages are low price, simplicity, practicality, quick use, and high efficiency. This model of external stirrup steel cage external hoop. The bar winding machine has been adopted and used by many domestic and foreign projects. The simplified steel bar cage winding machine has a base on which an electric motor and a transmission are arranged, and the electric motor and the transmission are connected by a belt drive; one side of the base is arranged with there is a plurality of equally spaced channels, two parallel steel pipes are arranged on the channel steel, and the end of the steel pipe close to the transmission is movably connected with the transmission through a gear and a chain; the steel pipe and the channel are movably supported by a U-shaped steel wedge. The steel cage stirrup-making device can effectively accelerate the processing speed of the steel cage stirrup.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Parameter of Hot-sale Steel Cage Winding Machine:

Model YG3000 single bar YG3000 double bar
Motor Power 3kw 3kw
Cart Motor 5.5kw 5.5kw
Wire feeding motor 5.5kw 5.5kw
Welding cage diameter range 60-3000mm 60-3000mm
Welding cage length 9-30 meters 9-30 meters
Reinforcement diameter 6-12mm rebar /6-14mm round steel 6-12mm rebar /6-14mm round steel
Control system PLC PLC
Welding speed 15 min/pc (12-15 meters) 15 min/pc (12-15 meters)
Machine weight 3.5t 4.2t
Machine size 15*5.5*2.7m 15*7.5*2.7m

Get a Free Quote

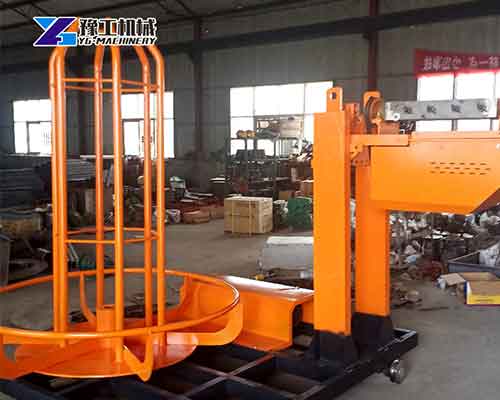

Reinforcement Cage Winding Machine
Reinforcement Cage Winding Machine

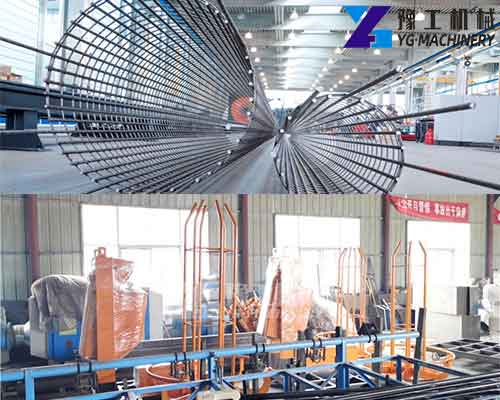

Hot-Sale CNC Steel Cage Seam Welder
Hot-Sale CNC Steel Cage Seam Welder

Application of Reinforced Cage Winding Machine:

The steel cage winding machine is suitable for the processing of various specifications of steel cages such as highways, high-speed railways, subways, hydropower stations, and building protection.

Working Principle of Steel Cage Winding Machine:

According to the construction requirements, first, adjust the distance between the two rollers of the steel cage winding machine, prefabricate the main reinforcement frame of the steel cage and hoist it between the two rollers of the steel cage winding machine, and penetrate the coil into the steel cage by passing through the straightener. The end of the coil (winding rib) is welded to the main rib first, and then the winding rib is wound on the main rib through the fixed rotation and the moving rotating disk rotation, and the welding is carried out at the same time to form the product reinforcement cage.

Get a Free Quote

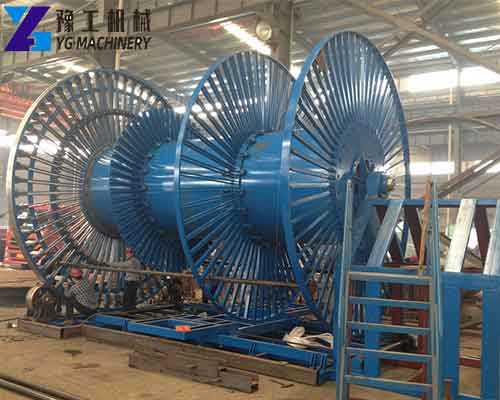

Steel Cage Winding Machine
Steel Cage Winding Machine

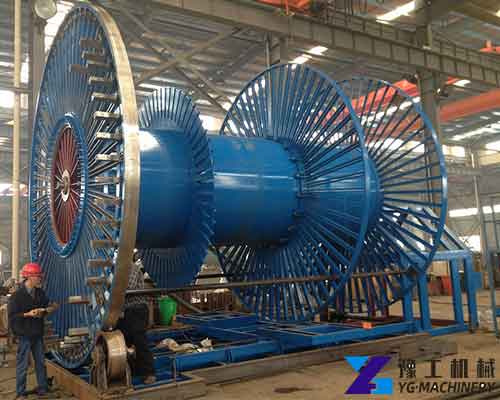

CNC Cage Welding Machine
CNC Cage Welding Machine

Outstanding Advantages of CNC Cage Welding Machine:

  1. Fast speed and labor-saving: 2 people in the standby state can produce the whole process, and 3-6 people in normal working conditions can produce 10-20 multi-section steel cages daily. The product meets the standard, the spacing is even, and it can fully meet the specification requirements.
  2. Stable operation: new chain design, no need to add auxiliary ring, save time, fast winding speed, stable operation, and low noise. Human factors do not affect mechanized operation, and long-term work can stabilize the quality.
  3. Suitable for different steel bars: According to the design requirements of different stirrup quantities, forms, models, sizes, and lengths, the design of the steel cage will not be affected or cannot be produced on the machine due to the function of the equipment.
  4. Convenient transfer: The combined design makes the process of handling, installation, production, etc. independent of lifting equipment, and adapts to factory-based mass fixed production and scattered mobile operations on the construction site.
  5. Form of an assembly line: independent construction is not affected by each process, and the whole process of welding and forming of main reinforcement stirrups and welding around the reinforcement is completed without interruption.
  6. Accurate positioning and faster installation: the use of threaded connection technology can be used for precise positioning, helping to increase the speed of decomposition and installation of the steel cage.

Get a Free Quote

Reinforced Cage Winding Machine Price – YG Machinery Manufacturer

At present, our steel cage winding machine has become popular in domestic sales, and many projects are using this machine. According to customer feedback, this machine can greatly improve work efficiency and save costs. And our machine can be customized, with a free design plan according to your project volume. We also have a professional sales manager and after-sales team, so you can use it without any worries. In addition, we also have rebar straightening and cutting machines, thread rolling machines, beam bending machines, pipe bending machines, rebar bending machines, steel hoop bending machines, rebar upsetting machines, pipe shrinking machines, rebar de-rusting machines, punching and shearing machines, auto tapping machines, stirrup bending machines, chain link fence machines, etc. Contact us to know more machine details. 【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
