Cold Extrusion Press Rebar Couplers

Cold Extrusion Press Rebar Couplers
Cold Extrusion Press Rebar Couplers
Cold Extrusion Steel Bar Couplers
Cold Extrusion Steel Bar Couplers
The Application of Cold Extrusion Press Steel Bar Couplers
The Application of Cold Extrusion Press Steel Bar Couplers

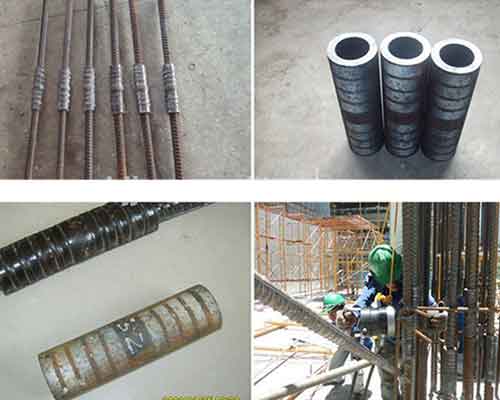

The cold extrusion press rebar coupler connection is to squeeze the casing through the extrusion machine to connect two reinforcement bars. Meanwhile, the threaded rebar couplers are connected to the two steel bars by tightening the steel bars with the sleeve with two pipe tongs. Cold extrusion connection is to insert the end of the steel bar that needs to be connected into the special steel sleeve, which should be ribbed steel bars. Then the steel sleeves are compressed by a rebar cold extrusion machine to produce plastic deformation, which can realize the connection between the deformation steel sleeve and the mechanical clamping force of ribbed steel reinforcement. This steel bar connection method is generally used in Ⅱlevel and Ⅲ level rebar with a diameter of 16mm to 40mm, as well as heat treatment steel bars. It can be divided into radial extrusion and axial extrusion. If you have any need for cold extrusion press rebar couplers, please kindly tell us more about your requirements, such as the diameter and the length of the steel bars, and the quantity you need, we will reply to you soon.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Technical Parameter of Cold Extrusion Rebar Couplers:

Sleeve
Rebar diameter OD*length Weight
16mm Φ30*110mm 0.28kg/pc
18mm Φ34*118mm 0.38kg/pc
20mm Φ35*120mm 0.48kg/pc
22mm Φ40*132mm 0.68kg/pc
25mm Φ45*150mm 1kg/pc
28mm Φ50*168mm 1.47kg/pc
32mm Φ55.5*192mm 2.03kg/pc

Get a Free Quote

Rebar Cold Extrusion Press Machine
Rebar Cold Extrusion Press Machine
