The polyurethane foaming machine is a special equipment for pouring and foaming polyurethane foam as long as the performance indicators of the polyurethane component raw materials (isocyanate component and polyether polyol component) meet the formulation requirements. This equipment can produce uniform and qualified foam products. It is made of polyether polyol and polyisocyanate in the presence of various chemical additives such as foaming agents, catalyst, emulsifier, etc., and foams through a chemical reaction to obtain foamed plastics. The polyurethane foaming machine can be used for automotive interior decoration, thermal insulation wall spraying, thermal insulation pipe manufacturing, and bicycle and motorcycle seat sponge processing. Want to know more machine details? Contact us now!【Whatsapp/Wechat/Skype/Phone】+86 136 1385 6800

Get a Free Quote

Polyurethane Foaming Machine Parameter:

Item/Model YG-12 YG-28 YG-55 YG-107
Pouring flow(g/s) 150-400 200-750 500-1500 1500-3200g
Mixing head model FLT10-14 FLT10-14 FLT12-18 FLT12-18 FLT16-25 FLT16-25
Metering pump model(A2FK, A2VK, A7VK) 12 12-28 28-55 55-107
Equipment power(380V, 50HZ)(KW) 21 28 45 78
Flowmeter(optional) VCG2FCP2 VCG2FCP2 VCG2FCP2 VCG2FCP2
Gas source

0.6mpa(Nitrogen best)

Injection time accuracy 0.1s-99.99s A: B injection ratio 1.3-3.1
Raw material injection pressure 8-15mps Injection repeat accuracy ≤1%
Temperature control accuracy ±2° Working pressure of hydraulic station 12-20mpa

Get a Free Quote

PU Foam Machine Application
PU Foam Machine Application

Application of YG PU Foaming Machine:

It is suitable for soft foam self-skinned polyurethane foam, mainly used in high-rebound/slow-rebound industries such as automobile/motorcycle/bicycle seat cushions, self-skins, automobile steering wheels, pillows, mattresses, insoles, etc. Polyurethane is an indispensable thing for the comfort, safety, and energy-saving of future cars. The products produced by the foaming machine can be used for heat and sound insulation roof materials or car seat cushions that require comfort, etc., with a wide range of applications.

PU Foam Machine Features:

  1. Movable walking: self-installing motor, providing power to drive casters, and matching the track to walk back and forth, occupying a small area. Multiple molds can be placed to improve production efficiency, and intelligent engineering costs are low.
  2. Flowmeter monitoring: The high-precision pulse metering device is adopted to make the flowmeter, frequency converter, and PLC control system monitor each other, realize closed-loop control, and ensure that the measurement accuracy is ≤1%.
  3. Electrical control: PLC+ dual frequency conversion multifunctional safety device, 38 intelligent self-check protection points, 99 recipes stored, high degree of automation.
  4. Safety system: Independent anti-static room,  gas automatic detection, and identification system, automatic 2-3 level ventilation system, explosion-proof motor, independent grounding device, gun head lead electrostatic discharge device, etc., external 2 sets of independent contrast constant temperature, 12~100 Kind of spray irrigation timing and quantitative control, gun firing temperature lock, fault self-checking alarm, etc.
  5. Dual touch screen visualization: The main electric box adopts a 10-inch color touch screen, and the mixing head is equipped with a 7-inch color touch screen for visual monitoring throughout the whole process, monitoring main parameters such as flow, pressure, and ratio.

Get a Free Quote

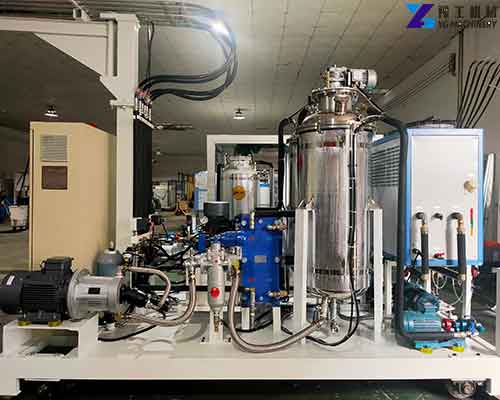

Polyurethane Foaming Machine Manufacturer
Polyurethane Foaming Machine Manufacturer

PU Injection Machine Manufacturer
PU Injection Machine Manufacturer

Polyurethane Foaming Machine Price – YG Machinery Manufacturer

YG Machinery is a company specializing in the production of various large-scale machinery and equipment. We have the most advanced technology and many years of industry experience. The equipment is easy to operate and fully automated to reduce labor costs. In addition, we have a professional sales team and after-sales team, so that you can easily buy machines and make money easily, without worrying about all follow-up problems because we will help you solve them.

In YG Machinery, we also have other series machinery, balloon making machines, condom making machines, wet wipe machines, tissue making machines, A4 paper making machines, sanitary napkin making machines, diaper making machines, paper bag making machines, lunch box making machines, disposable cup making machines, paper straw making machines, paper bowl making machines, paper dish making machines, egg tray making machines, nonwoven bag making machines, woven bag making machines, etc. If you want to know more details, pls contact us now.【Whatsapp/Wechat/Skype/Phone】+86 136 1385 6800
