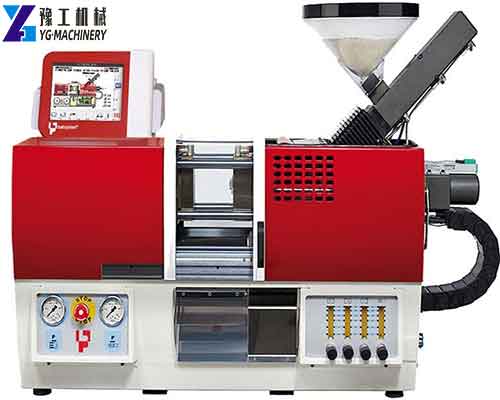

Small Plastic Injection Molding Machine

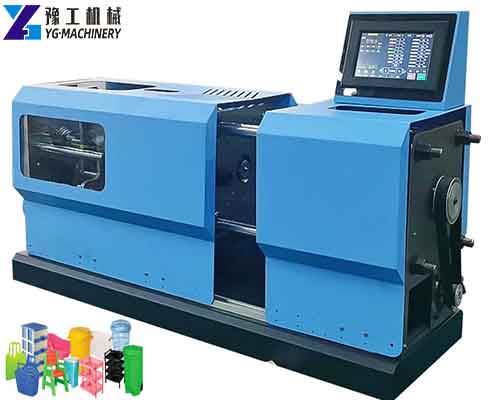

Desktop Injection Machine
Desktop Injection Machine

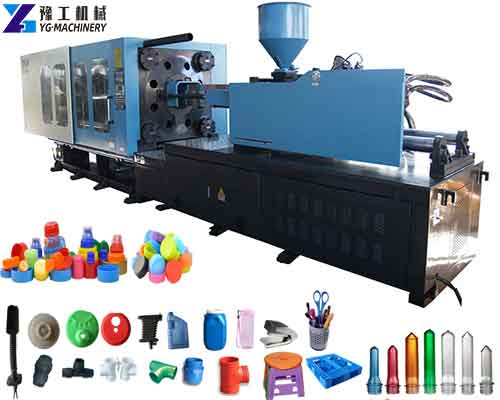

Mini Plastic Injection Machine
Mini Plastic Injection Machine

A small plastic injection molding machine is the most cost-effective way to produce small plastic components in the market. As are designed and optimized models of the traditional injection machine. Easy to apply for prototyping, testing, new product development, and small part production(small caps, wall anchors, small buttons, small toy accessories). The range of applications is very wide. If you want to know more, please contact us.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Technical Parameter of Small Plastic Injection Molding Machine:

Model Clamping  Force Shot weight  A/B Heat power Pump power Oil tank capacity Dimension Weight
YG-1000A 1000KN 128g 162g 7.6KW 11KW 180L 4.3*1.5*1.6M 3.4t
YG-1320A 1320KN 188g 205g 8.2KW 13KW 200L 4.5*1.6*1.7M 3.9t
YG-1400A 1400KN 230g 252g 8.2KW 13KW 220L 4.8*1.6*1.7M 4.2t
YG-1650A 1650KN 286g 326g 8.2KW 15KW 250L 5.0*1.6*1.7M 5t
YG-1800A 1800KN 335g 378g 11KW 15KW 250L 5.3*1.6*1.8M 5.5t
YG-2050A 2050KN 415g 472g 11.6KW 17KW 270L 5.4*1.6*1.8M 6t
YG-2300A 2300KN 546g 592g 11.6KW 18.5KW 300L 5.7*1.8*2.0 6.5t
YG-2600A 2600KN 650g 690g 15.5KW 25KW 350L 6.1*1.7*1.8 8t
YG-3000A 3000KN 709g 760g 15.5KW 25KW 370L 6.5*1.8*1.8 9t
YG-3400A 3400KN 772g 826g 17.5KW 30KW 400L 6.7*2.0*1.9 10.8t
YG-3850A 3850KN 1008g 1072g 17.5KW 30KW 400L 7.0*2.2*2.0 11.8t
YG-4500A 4500KN 1430g 1512g 20.5KW 37KW 450L 7.3*2.3*2.4 13.8t
YG-4800A 4800KN 1590g 1670g 23.4KW 40KW 600L 8.3*2.2*2.2 16.2t
YG-5200A 5200KN 1980g 2130g 28.1KW 43.5KW 750L 8.6*2.2*2.3 20t
YG-5800A 5800KN 2230g 2430g 28.1KW 48.5KW 850L 8.75*2.2*2.3 21.8t
YG-6500A 6500KN 2745g 2870g 37.1KW 55KW 1000L 9.2*2.2*2.4 26t
YG-7500A 7500KN 3810g 3960g 40.9KW 67KW 1200L 10.7*2.3*2.7 38t
YG-8500A 8500KN 4200g 4350g 42.5KW 74KW 1300L 11*2.4*2.8 45t

Get a Free Quote

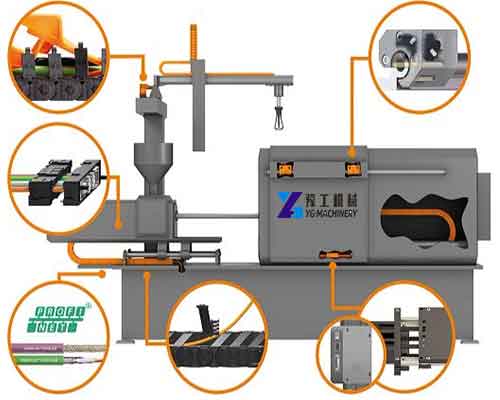

Desktop Injection Molding Machine
Desktop Injection Molding Machine

Small Plastic Injection Molding Machine
Small Plastic Injection Molding Machine

Application of Injection Molding Machine:

Injection molding machines can have a molding complex, the size is accurate or plastic with metal insert of fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, medical, household, appliance sectors, and people’s daily life. Today with the rapid development of the plastic industry, injection molding machines no matter in quantity or variety occupy an important position.

Servo Controller Part Features:

  1. High precise control. The servo system can control the machine’s pressure, speed & location precisely, making sure that the error of accurate repeatability precision for the shot measurement is <0.3%.
  2. High sensitive response. Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputting the number from 0 to max. Compared with other traditional hydraulic injection molding machines, the YG series is faster with a shorter cycle time and is highly efficient in production.
  3. Low noise. Compared with traditional fixed pump & variable pump systems, the noise is 1/10 lower under normal circumstances, more suitable for a sealed dustless workshop.
  4. Energy saving. Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% of energy, and achieve first-class energy efficiency.
  5. Water cooling save. The system conditions and prevents high-pressure uploading without any power output, which leads to water cooling savings.

Get a Free Quote

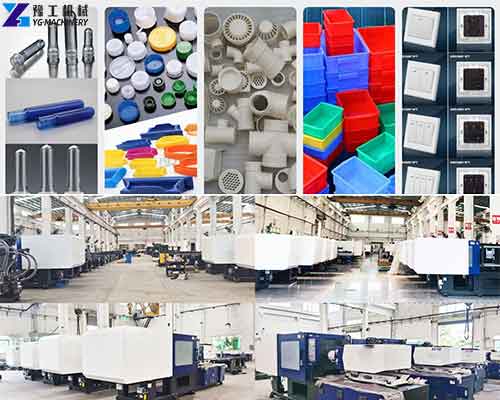

Application of Plastic Injection Machine
Application of Plastic Injection Machine

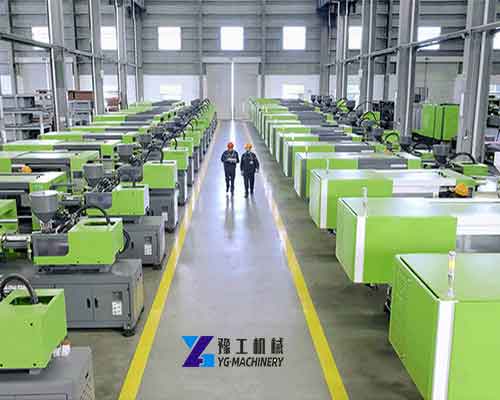

Plastic Injection Molding Machine Manufacturer
Plastic Injection Molding Machine Manufacturer

Small Plastic Injection Molding Machine Price – YG Machinery

We supplied clamping force ranges from 3.4ton to 3400ton injection molding machines. Besides, we also have special machines for PVC, PET, variable pumps, clear double color, servo-motor machines, and high-speed injection machines. We have a full range of production equipment and are very customer-friendly without having to look for a lot of suppliers. And our person is of high quality, and very professional, the price will satisfy you. In addition, we also have PVC shoe injection machines, plastic thermoforming machines, bottle-blowing machines, water bottle filling machines, plastic bag-making machines, disposable cup-making machines, paper bowl-making machines, paper dish-making machines, paper carton erecting machines, paper straw-making machines, etc. Contact us if you want to know more details.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
