Water Bottle Blowing Machine

PET Bottle Blowing Machine
PET Bottle Blowing Machine

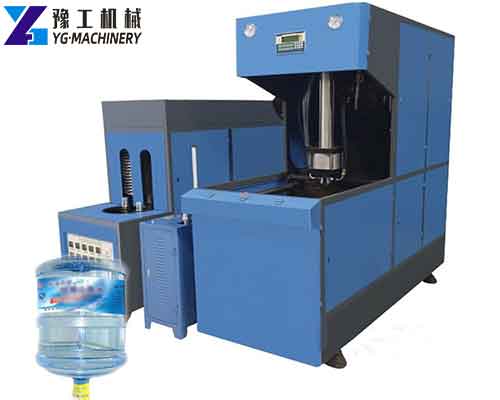

Water Bottle Blowing Machine
Water Bottle Blowing Machine

The water bottle-blowing machine is widely used for blowing plastic containers (including hot filling bottles), suitable for the production of water, carbonated beverages, or cold bottles. We have semi-auto and full-auto two kinds of PET bottle blow molding machines. Customers can choose the machinery according to their requirements. Our full-auto PET blow molding machine can produce 100ml-2500ml bottles, and semi-auto ones can produce 5L-25L bottles. In addition, we also have plastic bottle-blowing machines, water bottle-filling machines, small plastic injection molding machines, plastic thermoforming machines, etc. Contact us now!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Technical Parameter of YG Blow Molding Water Bottles Machine:

Water Bottle Blowing Machine YG-2L-2 YG-2L-4 YG-2L-6 YG-2L-8
Cavity 2 4 6 8
Theory output 2000-2700 4000-5000 6000-7200 8500-9000
Max. volume 2L 2L 2L 2L
Bottle mouth maximum overall diameter 80mm 28-38mm 28-38mm 28-38mm
Bottle biggest diameter 100mm 100mm 100mm 100mm
Bottle maximum height 330mm 330mm 330mm 330mm
Light tube quantity 16pcs 40pcs 64pcs 32pcs
Light tube power 1.5KW 1.5KW 1.5KW 1.5KW
Maximum heating power 24KW 40KW 80KW 80KW
All-electric machine installation 26KW 60KW 85KW 85KW
Actual consumption 19KW 30KW 40KW 40KW
Work pressure 7-9kg/c㎡ 7-9kg/c㎡ 7-9kg/c㎡ 7-9kg/c㎡
Low-pressure gas consumption 1000L/min 1600L/min 1600L/min 1600L/min
Blow bottle pressure 25-35kg/c㎡ 25-35kg/c㎡ 25-35kg/c㎡ 25-35kg/c㎡
Higher-pressure gas consumption 1500Ltr/min 3000Ltr/min 4000Ltr/min 4800Ltr/min
Work pressure 5-6 kg/c㎡ 5-6 kg/c㎡ 5-6 kg/c㎡ 5-6 kg/c㎡
Temperature range 10℃ 10℃ 10℃ 10℃
Consumption 5000kcal/hr 8000kcal/hr 8000kcal/hr 12000kcal/hr
Frozen water flow 30L/min 88L/min 88L/min 88L/min
Size of the machine 2.5*1.6*1.7 m 4.5*2.0*2.3 m 6.5*2.0*1.9 m 6.7×2.0×2.3m
Weight of the machine 2.0ton 4.0ton 5.5ton 6.0ton

Get a Free Quote

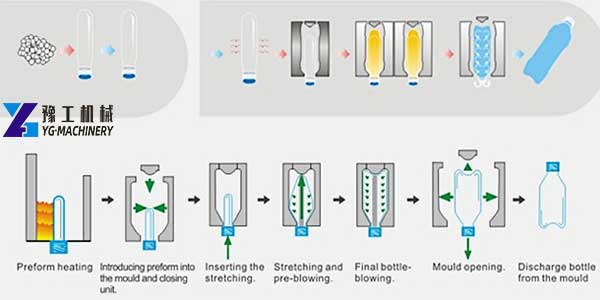

Blow Molding Machine Workflow
Blow Molding Machine Workflow

Blow Molding Machine Workflow:

Preform heating – introducing preform into the mold and closing unit – inserting the stretching – stretching, and pre-blowing – final bottle blowing – mold opening discharge bottle from the mold.

7 Characteristics of Water Bottle Blowing Machine:

  1. This water bottle-blowing machine is suitable for making mineral water bottles, daily chemical bottles, oil bottles, etc less than 2000ml.
  2. Use the advanced touch-screen computer control, easy operation, stable quality, and high safety.
  3. Use the electric appliances and pneumatic components of worldwide famous brands, stable and accurate velocity.
  4. The whole production process is finished by the automatic micro-computerized control, auto-faulty detection, and automatic alarm, each action has an interlocking device as a security guarantee.
  5. The gas circuit is designed into low-pressure and high-pressure twice-blowing and action three portions, making sure of an even bottle forming and steady action.
  6. The blower is reasonably designed, and smooth-running, with the production workmanship flow fully automatic, and holds less investment, high efficiency, easy operation, simple repair, and safety.
  7. Advanced match mold structure, stable running, powerful mold locking strength.

Get a Free Quote

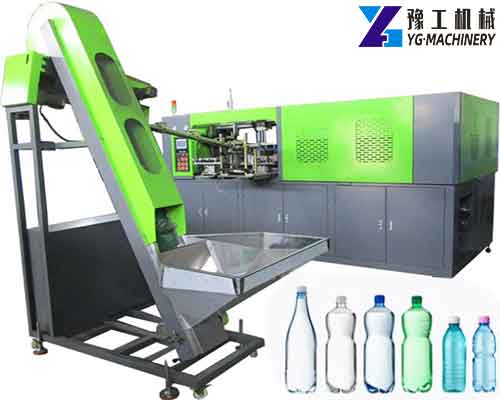

PET Blow Machine
PET Blow Machine

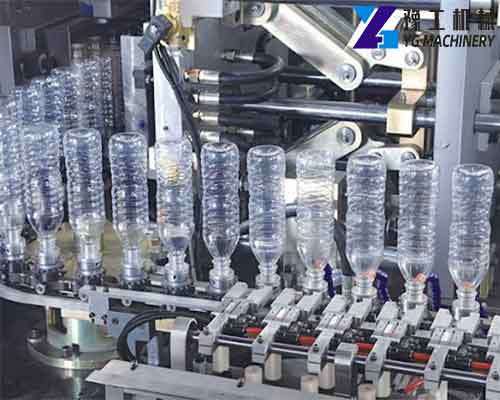

Mineral Water Bottle Blowing Machine
Mineral Water Bottle Blowing Machine

Functions of Auxiliary Types of Equipment:

  1. The air compressor is the air source for the PET stretch blow molding machine, carrying out the process of compressing air from the atmosphere to the required pressure.
  2. An air dryer removes the moisture from the compressed air and lowers the temperature of the compressed air in the heat exchanger.
  3. The air filter is to clear up the impurities of the compressed air, like carbon-hydrogen, tiny dust, and solid particles.
  4. The Air tank is to receive and supply air for the machine as storage.

Service on Bottles Blowing Machine:

  1. Provide the whole drawing for the performed mold and bottle mold. Free charge for word design on the mold.
  2. We can help you install the machine; by setting the machine, testing it, and checking the machine is in good working condition.

Get a Free Quote

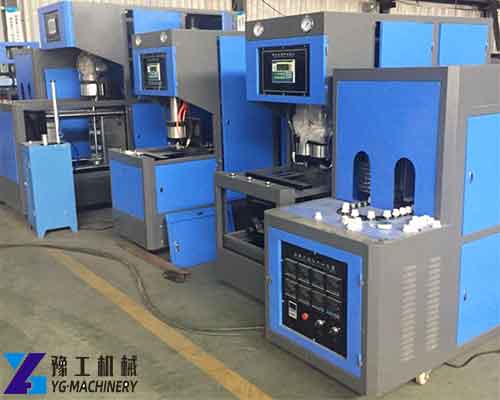

Blow Molding Water Bottles Machine
Blow Molding Water Bottles Machine

Water Bottle Blowing Machine Manufacturer – YG Machinery

As an excellent China semi-automatic plastic water bottle blowing machine manufacturer and plastic water bottle blowing machine factory, We produce the YG series of fully automatic, semi-automatic PET blow molding machines and another semi-automatic plastic water bottle blowing machine with output from 1000 to 8000 bottles per hour, which can satisfy different customers’ requirements. CE certificates our products. To meet customers’ specific requirements, the factory offers production capacity ranging from 50ml to 30L, suitable for all kinds of PET bottles that contain mineral water, carbonated beverages, fruit juice, teas, edible oils cosmetics, detergents, wide-mouth jars, etc. YG Machinery is an ideal choice for large beverage factories, mineral water companies, and PET packaging enterprises. Of course, if you are interested in other machinery, we also have hot-selling wet tissue machines, rewinder machines, paper cup-making machines, paper bowl-making machines, paper dish-making machines, paper straw-making machines, paper carton erecting machines, egg tray machines, napkin making machines, tissue making machines, A4 paper making machines, etc. For other equipment, please contact us.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
