Agricultural Drone Sprayer Price

Agricultural Drone Sprayer Price
Agricultural Drone Sprayer Price

Drone Pesticide Sprayer for Sale
Drone Pesticide Sprayer for Sale

A plant protection UAV, also known as an agricultural drone sprayer, an unmanned aerial vehicle, as the name implies, is an unmanned aircraft used for agricultural and forestry plant protection operations. Composed of three parts, the spraying operation can be realized through ground remote control or navigation flight control, which can spray chemicals, seeds, powder, etc. With the rapid development of drone technology, “agricultural drones” with a broader meaning are gradually replacing “plant protection drones”. Agricultural drones are not only used for spraying pesticides, but also for spreading fertilizers, seeds, feed, and other work to meet the diverse needs of farmers and improve production efficiency. Want to know the agricultural drone sprayer price? Contact us now!【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800

Get a Free Quote

Drone Pesticide Sprayer Parameter:

Pesticide load 10 liters 15 liters 16 liters 20 liters
Self-weight 10.5 kg 13.5 kg 17 kg 18.5 kg
Take-off weight 22 KG 31 KG 40 kg 44 kg
Fly time 10-15 min 10-15 min 10~15 min 10~15 min
Spraying efficiency 5-6 hectares/hour 7-8 hectares/hour 8~10 hectares/hour 9~11 hectares/hour
Spray width 4-6 m 6-7 m 8~10 m 7~8 m
Spray speed 0~8 m/s 0~8 m/s 0~10 m/s 0~10 m/s
Nozzle 2 centrifugal nozzles 2 centrifugal nozzles 4 cone nozzles 4 centrifugal nozzles
Battery 2 pcs 6S 17000 mAh 2 pcs 6S 17000 mAh 1 pc 12S 22000 mAh 2 pcs 6S 23000 mAh
Flying radius 1000 m 1000 m 1000 m 1000 m
Spray flow 1~1.5 L/Min 2~2.5 L/Min 2.5~4 L/min 2.5~ 3 L/min
Flying height 0~30 m 0~30 m 0~30 m 0~30 m
Work temperature –10~70 ℃ –10~70 ℃ –10~70 ℃ –10~70 ℃
Work humidity conditions 0-90% 0-90% 0-90% 0-90%
Wind resistance 10 m/s 10 m/s 10 m/s 10 m/s
Spread size (m) W1.3*L1.3*H0.45 W1.8*L1.8*H0.48 W1.8*L1.8*H0.7 W1.95*L1.95*H0.57
Folded size (m) W0.6*L0.6*H0.51 W0.7*L0.7*H0.63 W1.05*L0.95*H0.7 W0.7*L0.7*H0.8
Aluminum box size/weight 73*67*65 cm/50 kgs 75*75*81 cm/70kgs 115*105*80 cm/80 kgs 75*85*95 cm/80 kgs

Get a Free Quote

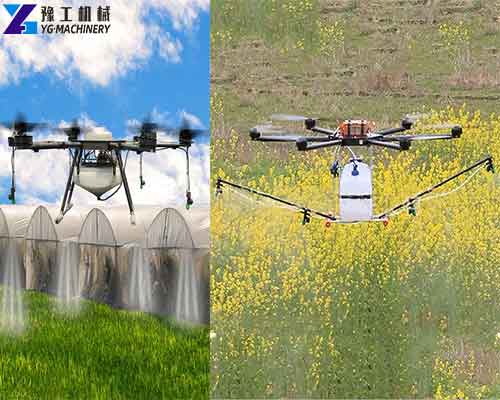

Application of Drone Pesticide Sprayer
Application of Drone Pesticide Sprayer

Pesticide Drone Sprayer
Pesticide Drone Sprayer

Drone Applications:

Drones have been widely used for crop protection, mosquito control, and public disinfection.

  1. Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
  2. Chemical use: liquid pesticides, herbicides, foliar fertilizers, fungicides, insecticides, etc.
  3. Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, saves 90% water, and 20% pesticide use.
  4. High efficiency: One drone can cover 50~70 hectares of field per day.

Compared with a plane, tractor, and hand-held sprayer, a drone sprayer is more efficient, reduces water & pesticide use, has less drift, and keeps people away from heat stroke and chemical poisoning.

Agricultural Drone Sprayer Features:

  1. High-efficiency brushless motor is used as power. The vibration of the body is small, and it can be equipped with precision instruments, and the spraying of pesticides is more accurate.
  2. The terrain requirements are low, and the operation is not restricted by altitude, in high-altitude areas.
  3. Short take-off adjustment, high efficiency, and high attendance rate.
  4. Environmental protection, no waste gas, in line with national requirements for energy conservation, environmental protection, and green organic agriculture development.
  5. Easy maintenance, low cost of use, and maintenance.
  6. The overall size is small, light in weight, and easy to carry.
  7. Provide a power guarantee for agricultural drones.
  8. It has the functions of real-time image transmission and posture real-time monitoring.
  9. The spraying device has a self-stabilizing function to ensure that the spraying is always vertical to the ground.
  10. For Semi-autonomous take-off and landing, switch to attitude mode or GPS attitude mode, just simply manipulate the throttle stick to easily operate the helicopter to take off and land smoothly.
  11. Out-of-control protection, when the helicopter loses the remote control signal, it can automatically hover in place and wait for the signal to recover.
  12. The attitude of the fuselage is automatically balanced, the joystick corresponds to the attitude of the fuselage, and the maximum attitude tilt is 45˚, which is suitable for dexterous and large maneuvering flight movements.
  13. GPS attitude mode (the standard version does not have this function, but can be obtained through an upgrade), precise positioning, and altitude locking, even in windy weather, the hovering accuracy will not be affected.
  14. The power of the tail rotor and the main rotor of the new plant protection UAV is separated so that the power of the main rotor motor is not lost by the tail rotor, which further improves the load capacity, and at the same time enhances the safety and controllability of the aircraft. This is also a direction for the development of unmanned helicopters.
  15. The high-speed centrifugal nozzle design can not only control the spraying speed of the liquid medicine, but also control the droplet size, and the control range is 10-150 microns.

Get a Free Quote

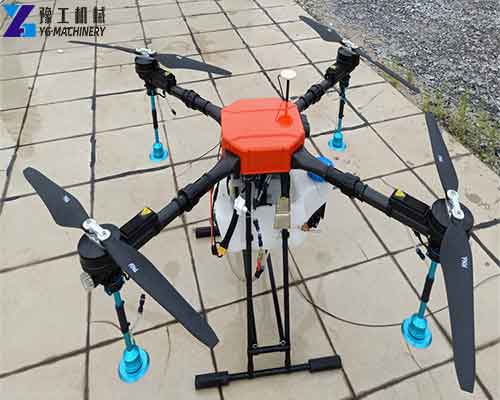

Agricultural Drone Sprayer
Agricultural Drone Sprayer

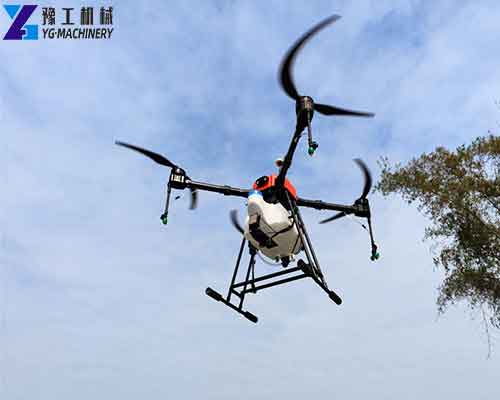

Drone Pesticide Sprayer
Drone Pesticide Sprayer

Agricultural Drone Sprayer Price – YG Machinery Manufacturer

The drone sprayer has a low operating height, less drift, can hover in the air, and does not need a special take-off and landing airport. At present, our drones have been exported to Georgia, the United States, the Philippines, India, Pakistan, Vietnam, and other countries. They can be used for agricultural spraying, seeding, cleaning, and of course painting and other functions. Customers are also unanimously praised, the work efficiency is very high, and it is easy to operate. I believe that our equipment can help your work. In addition, we have fog cannon machines, dust control water trucks, mortar sprayers, sandblasting machines, shotcrete machines, hydroseeding machines, mini concrete pumps, wood shredder machines, automatic brick making machines, micro excavators, GRC machines, etc. Contact us if you are interested.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
