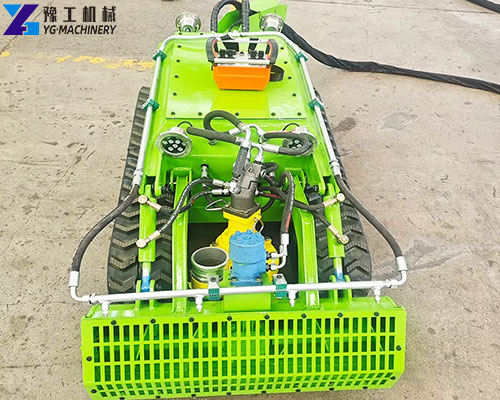

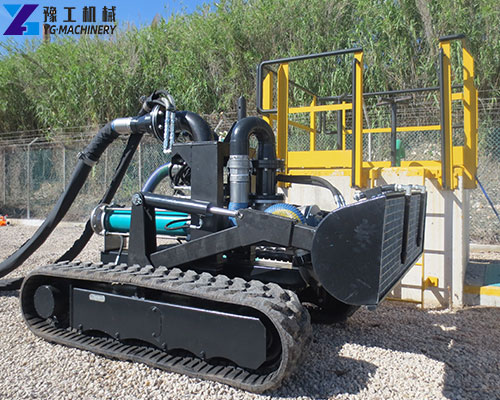

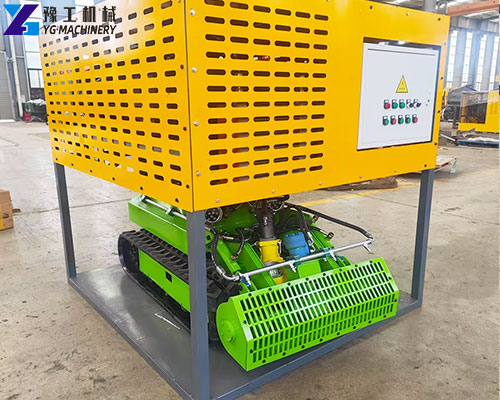

Keeping large tanks (such as oil tanks and water tanks) clean is important in the industrial world, but the job is dangerous and difficult. In the past, people had to climb into these dark and dirty tanks to clean them, which was not only laborious but also risked toxic gases or explosions. But when you know YG’s tank cleaning robot, everything is different. This sludge cleaning robot is like a little expert who can move freely in the tank. It can complete all dangerous cleaning tasks instead of people. It uses a high-pressure water gun to flush away dirt from the walls and bottom of the tank, and it can also suck away the dirt. The whole process is controlled by a remote control outside, and the operator can see it clearly, ensuring safety and cleanliness. YG’s tank cleaning robot has completely changed the way large tanks are cleaned, making this job safer, faster, and cheaper, helping factories run more efficiently. Are you excited and want to change the way you work now? Contact us now to get more information about our products and get a free quote.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
Small Dredging Machine Parameter
| Dimension: | 1220*890*520mm | Speed: | 2.5-4KM/h |
| Self Weight: | 120kg | Designed Load: | 100-300kg |
| Waterproof: | IP68 | Rated Torque: | 100-500 NM |
| Track Width: | 130mm | Reducer Efficiency: | 65-85% |
| Gear Ratio: | 1:10-1:40 | Motor Voltage: | 380ACV (customized as local voltage) |
| Motor: | 0.75-1.5KW*2 | Climbing Ability: | ≤30°(can climb stairs) |
| Motor Rated Speed: | 1500r/min | Maximum Span: | 620mm |
| Cable Control Distance: | Standard 50m, maximum 150m | Over-Obstacle Capacity: | 130mm |
| Maximum Underwater Depth: | 30m | Power Supply: | Generator or 380V power supply |
YG Intelligent Tank Cleaning Robot Features
- Remote wireless control and visual operation: The operator can remotely control the robot through a wireless remote control or an integrated console in a safe area, view the high-definition video in the tank in real time, and achieve precise operation.
- Powerful cleaning with high-pressure water jets: Equipped with a professional-grade high-pressure pump and a special nozzle, it provides ultra-high-pressure water jets (for example, the pressure can reach 100-280MPa), which can effectively remove all kinds of stubborn dirt such as sludge, scaling, and sediment.
- Efficient sludge suction and discharge: Equipped with a powerful suction system, it can quickly suck away and discharge the washed dirt while cleaning, so as to achieve simultaneous cleaning and sewage discharge and improve efficiency.
- Explosion-proof safety design: All components meet strict explosion-proof standards, can operate safely in flammable and explosive environments, and maximize the safety of personnel and equipment.

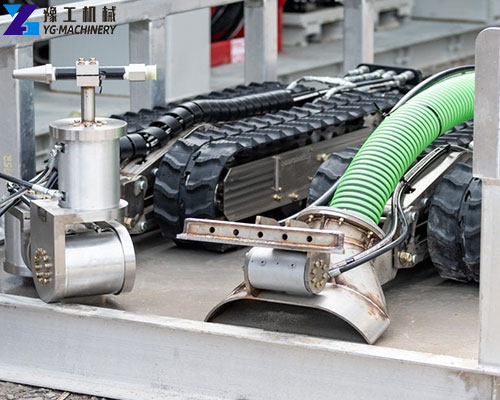

- Modular design and multi-functional expansion: Different cleaning heads, suction cups, or sensors can be flexibly configured according to different application scenarios and needs to achieve multi-functional applications. For example, it can be expanded into a dredging robot for underwater dredging.
- Intelligent obstacle avoidance and path planning: Some advanced models have environmental perception capabilities and intelligent algorithms, which can automatically identify obstacles and plan the best cleaning path to improve work efficiency and coverage.
- Corrosion-resistant and wear-resistant materials: The core components are made of special stainless steel, engineering plastics, and other corrosion-resistant and wear-resistant materials to ensure long-term stable operation of the equipment in harsh working environments.
Working Principle of YG Tank Cleaning Robot

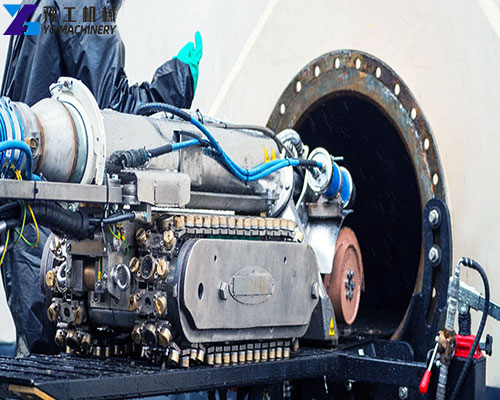

First, the operator issues instructions through the remote control or console in a safe area outside the tank. The robot enters the tank through a narrow manhole on the tank body (no large opening is required). The drive system inside the robot (such as tracks) enables it to move freely on the bottom of the tank.

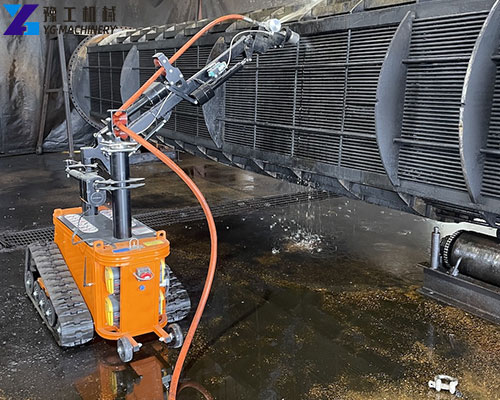

Once it reaches the target area, the built-in high-pressure water pump (or external high-pressure pump) will spray high-pressure water through a special high-pressure rotating nozzle. These high-pressure water jets have a huge impact force and can effectively peel off stubborn dirt such as sludge, scale, and sediment attached to the tank wall, tank bottom, and internal structure.
At the same time, the powerful suction system on the robot will start synchronously. It will quickly suck in the sludge and water mixture that has been washed down, and through a special hose connected to the robot, it will continuously pump these dirt to the waste liquid treatment system outside the tank body, to achieve cleaning and sewage discharge at the same time, avoid secondary pollution, and maintain the clarity of the tank for camera monitoring. The entire process is transmitted back to the operation interface in real time through a high-definition camera. The operator can accurately control the movement, spray angle, and suction of the robot to ensure that there are no dead angles in the cleaning. All electrical and sensor components are explosion-proof to ensure absolute safety in flammable and explosive environments.
Use Cases of Dredging Robots—A Petrochemical Company in Texas, USA
- Customer background: The company is a large crude oil storage and distribution center in the southern United States, with dozens of giant crude oil tanks. Regular tank cleaning is a huge challenge for its operation. The traditional method requires a lot of manpower and time, and there are huge safety hazards.
- Problems solved by the product: They face high labor costs, long downtime, and safety risks for operators entering the tank.
- Effect: The customer introduced YG’s heavy tank cleaning robot. The robot can quickly and efficiently remove the heavy sludge accumulated at the bottom of the tank, shortening the cleaning cycle of a single tank from the original 25 days to 10 days. Most importantly, the entire cleaning process is unmanned, completely eliminating the safety risks of personnel.
- Customer evaluation: The company’s operations manager said, “YG’s tank cleaning robot is one of our wisest investments in recent years. It not only greatly improves our tank cleaning efficiency and reduces operating costs, but more importantly, it protects the lives of our employees. We can now handle tank maintenance with more confidence. It is really the solution we dream of!”
Tank Cleaning Robot Price & Purchase Information
The price of the YG intelligent tank cleaning robot varies according to the model, configuration (such as whether it includes additional dredging robot functions), cleaning capacity, and customization requirements. Generally speaking, its price fluctuates according to the complexity and performance indicators of the equipment, but we are committed to providing highly competitive and cost-effective products. For specific prices and detailed parameters, please contact us directly to obtain the latest quotation and product manual.
As a factory-direct sales, we are able to provide you with the best price and promise to provide comprehensive after-sales service guarantees, including equipment installation guidance, operation training, technical support, and spare parts supply. We are well aware that the investment in purchasing industrial equipment is crucial, so we provide flexible procurement solutions to ensure that your investment is worthwhile. Contact us now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
