Rotary Tablet Press Machine

Tablet Press Machine for Sale
Tablet Press Machine for Sale

High-quality Tablet Press Machine
High-quality Tablet Press Machine

Tablets are a widely used dosage form in solid preparations. Oral tablets are popular and widely used due to their advantages in taking, storing, and carrying. Now they have been extended to the food, chemical, electronics, and automotive airbags field. With the continuous improvement and perfection of tablet press machines, tablets have been developed rapidly. It is mainly used in the production of the pharmaceutical industry and is also used in chemical, food, electronics, and other industrial sectors. It can press special-shaped tablets, double-layer tablets, ring tablets, etc. according to customer requirements. Want to know more rotary tablet press machine details? Contact us now!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Rotary Tablet Press Machine Parameter:

Model YG-35 YG-37 YG-43 YG-45 YG-53 YG-57
Punch station quantity(sets) 35 37 43 45 53 57
Punch form IPT IPT IPT IPT IPT IPT
Max. tablet pressure(kn) 80 80 80 80 80 80
Max. pre- pressure(kn) 18 18 18 18 18 18
Max. tablet diameter(mm) 25 23 18 17 13 11
Production capacity(Pc/h) 18.9 19.98 23.22 24.3 28.62 30.78
Turntable maximum speed(r/min) 45 45 45 45 45 45
Motor power(kw) 7.5 7.5 7.5 7.5 7.5 7.5
Machine height(mm) Without hopper 1750 1750 1750 1750 1750 1750
With hopper 1900 1900 1900 1900 1900 1900
Machine floor space(㎡) 1170*1290 1170*1290 1170*1290 1170*1290 1170*1290 1170*1290
Machine weight(kg) 3500 3500 3500 3500 3500 3500

Get a Free Quote

Rotary Tablet Press Machine
Rotary Tablet Press Machine

Automatic Tablet Press Machine
Automatic Tablet Press Machine

High-Speed Tablet Machine Working Principle & Main Features:

  1. The outer casing is fully enclosed, the material is made of stainless steel, and the inner table is made of stainless steel, which can maintain the surface gloss and prevent cross-contamination, in line with GMP.
  2. The mechanical operation can be seen clearly with the transparent protective cover. And can be fully opened for easy cleaning and maintenance.
  3. The speed is stepless speed regulation, which can be adjusted arbitrarily.
  4. Easy to operate, stable rotation, safe, and accurate. Implement electromechanical integration, and adopt touchscreen PLC control and operation.
  5. The transmission system is sealed in the oil tank under the main body of the machine. It is a separate independent component that is safe and will not pollute each other. The transmission shaft is infiltrated into the oil pool for sufficient lubrication, reducing noise and wear.
  6. The mechanically installed dust collection device can absorb the flying dust in the pressing room.
  7. When pressing double-layer tablets, the output is halved.
  8. The maximum pressure is high, and the pre-compression device is set at the same time, which prolongs the compression time and makes the tablet quality more in line with the requirements.
  9. The rotary table has high speed, double-sided tablet pressing, and high production efficiency.
  10. The control part adopts a programmable controller, and the operation panel uses a color touch display screen, which is intuitive and easy to operate.
  11. The working area adopts a fully enclosed transparent window, with less dust pollution and excellent sealing. The parts are all made of stainless steel or specially treated on the surface, which can prevent cross-contamination and meet the requirements of GMP.

Get a Free Quote

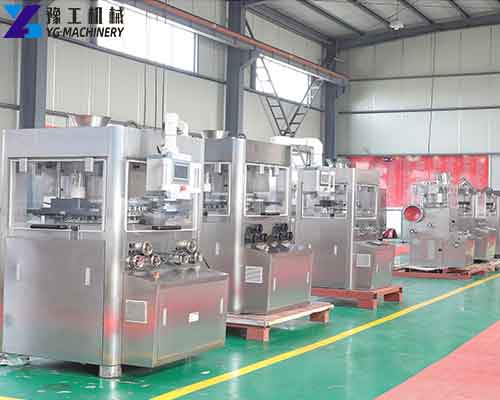

Rotary Tablet Press Machine Manufacturer
Rotary Tablet Press Machine Manufacturer

High-speed Tablet Machine
High-speed Tablet Machine

The Use and Scope of Application of the Tablet Press:

The tablet press is one of the necessary pieces of equipment for processing granular raw materials into tablets or granules in pharmaceutical, chemical, food, electronics, and other industrial sectors. The tablet press machine is suitable for small-batch production, laboratories, hospitals, and other departments to press pharmaceutical tablets, coal, sugar tablets, calcium tablets, coffee tablets, powder metallurgy, electronic components, various agricultural fertilizer tablets, etc. The tablet press machine can press multiple special-shaped and ring-shaped tablets, and can also press tablets with trademarks, words, and simple graphics engraved on both sides.

The shape of the tablet pressed by the tablet press is mostly oblate at first and later developed into a shallow arc shape and a deep arc shape on the upper and lower sides, which is for the needs of coating. With the development of special-shaped tablet presses, oval, triangular, oblong, square, rhombus, circular, and other tablets are produced. In addition, with the continuous development of preparations, due to the requirements of preparations and time-release preparations, special tablets such as double-layer, triple-layer, and core-coated tablets have to be made on special tablet presses.

With the development of market demand, the scope of application of the tablet press is becoming wider and wider. It is no longer limited to pressing Chinese and Western medicine tablets. The tablet press can also widely press health food, veterinary medicine tablets, and chemical tablets. : Such as mothball health balls, washing blocks, Smurf blocks, art powder cakes, pesticide tablets, etc. Food tablets: Chicken essence blocks, Banlan root blocks, Divine Comedy tea blocks, compressed biscuits, etc.

Get a Free Quote

Rotary Tablet Press Machine Price – YG Machinery Manufacturer

The pros and cons of a tablet press not only depend on how powerful its function is but also on how high its safety performance is. Improving the safety performance of the tablet press can not only reduce production accidents, and protect personnel and machine safety, but also increase the added value of its own products. At present, YG Machinery’s tablet presses have been sold to South Korea, the United States, the Philippines, Malaysia, Pakistan, the United States, Qatar, Germany, Senegal, Iran, Russia, and many other countries. Our machines are not only good-looking, and high-efficiency, but also reasonably priced, receiving good feedback from customers. The equipment sold directly by the factory has guaranteed quality and after-sales guarantee, and there is never any need to worry about problems such as the machine not being used. Make money on your investments effortlessly. In addition, we also have other machines, face mask-making machines, shoe cover-making machines, surgical cap-making machines, disposable slipper machines, small soap-making machines, wet wipe machines, disposable cup-making machinessanitary napkin-making machines, diaper-making machines, etc. Contact us now!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
