The aluminium foil lunch box is widely used tableware. The aluminum foil lunch box is a lunch box produced by pressing, coating, and other processes using aluminum foil as raw material. Widely used in aviation tableware, home cake making, barbecue, and quick-frozen dishes. Lightweight, recyclable, and increasingly popular in the market. So the demand has been increasing, and now investing aluminium container making machine is a very good choice.

The Pakistani customer I am talking about today is in the aluminum foil business and often imports it from China. Now, because he sees the good prospects of the aluminum foil lunch box market, he wants to start his own business and make more money, so he chose YG’s Aluminum foil lunch box production line. We are still in continuous communication, and customers expressed their hope to maintain cooperation for a long time and purchase more production lines to ensure their own output. Congrats to him, he found his way to make money.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Aluminium Container Making Machine Parameter:

Model YG21-45 YG21-63
Nominal Pressure(KN) 450 630
Slide Block Stroke(mm) 100-260mm(5.91”-10.24”) 120-260mm(4.72”-10.24”)
Slide Stroke Per Minutes 70-50 70-50
Max. Die Set Height(mm) 270-400(10.63”-15.74”) 310-450(12.20”-17.71”)
Die Set Height Adjustment(mm) 60mm(2.36”) 70mm(2.76”)
Slide Bottom Size(mm) 410*340mm(13.58”*19.68”) 480*400mm(18.90”*15.75”)
Stemhole Size(mm) Φ60*60mm(2.36”*2.36”) Φ60*65mm(2.36”*2.56”)
Bolster Surface Size(mm) 810*440/990*750(31.89”*17.32”/38.98”*29.53”) 870*520/1000*800(34.25”*20.47”/39.37”*31.5”)
Total Power(KW) 5.5 5.5-7.5
Weight(kg) 3800-4500 5500-6300
Overall Dimension Before Changed(mm) 1440*1080*2300(56.69”*42.52”*90.55”) 1610*1200*2500(63.39”*47.24”*98.43”)
Overall Dimension After Changed(mm) 1550*1150*2500(61.02”*45.28”*98.43”) 1800*1300*2700(70.87”*51.18”*106.3”)
Model YG21-80 YG21-110
Nominal Pressure(KN) 800 1100
Slide Block Stroke(mm) 140-260mm(5.51”-10.24”) 150-260mm(5.91”-10.24”)
Slide Stroke Per Minutes 60-45 50-40
Max. Die Set Height(mm) 350-450(12.79”-17.71”) 345-500(13.58”-19.68”)
Die Set Height Adjustment(mm) 80mm(3.15”) 90mm(3.54”)
Slide Bottom Size(mm) 560*460mm(22.05”*18.11”) 630*520mm(24.80”*20.47”)
Stemhole Size(mm) Φ60*75mm(2.36”*2.95”) Φ60*85mm(2.36”*3.35”)
Bolster Surface Size(mm) 1000*600/1200*800(34.25”*20.47”/39.37”*34.5”) 1100*680/1300*800mm(43.3”*23.77”/51.18”*31.5”)
Total Power(KW) 7.5-11 11-15
Weight(kg) 8000-9000 11000-12000
Overall Dimension Before Changed(mm) 2000*1300*2900(78.74”*51.18”*114.17”) 2030*1500*3130(79.92”*59.06”*123.23”)
Overall Dimension After Changed(mm) 2200*1450*3100(86.61”*57.09”*122.05”) 2300*1600*3300(90.55”*62.99”*129”)

Get a Free Quote

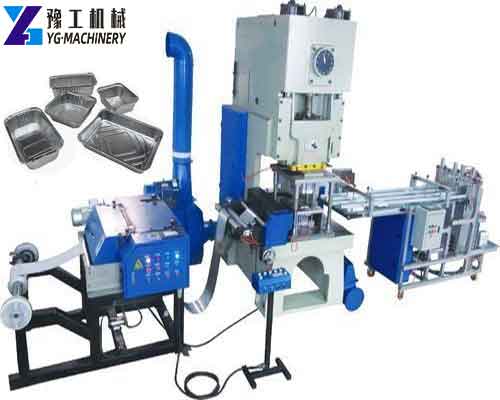

Aluminium Foil Container Making Machine Price
Aluminium Foil Container Making Machine Price

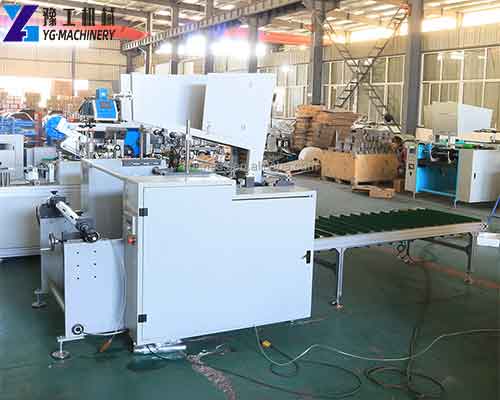

Aluminium Food Container Machine
Aluminium Food Container Machine

Features of YG Aluminium Foil Making Machine:

  1. The whole machine adopts Siemens CPU216 programmable controller as the control system, which is safe and reliable. The feeding length, production speed, and other parameters are simply set, gas/electrical integration, and centralized control. Fully automatic production, personnel only need to collect the product.
  2. Feeding, stamping, waste collection, and product ejection during operation are all automated.
  3. The precision press adopts a steel welded body, frequency conversion speed regulation, dry friction clutch, and rigid overload fuse, and has the characteristics of high precision and good reliability.
  4. The feeding system adopts step control, and the feeding length is accurate and error-free and can be set arbitrarily from the length of 30mm to 999mm.

Advantages of Aluminum Foil Lunch Boxes:

  1. The raw materials are non-toxic and of safe quality. Aluminum foil is made of the primary aluminum alloy after melting and rolling through multiple processes, and it does not contain harmful substances such as heavy metals. In the production process of aluminum foil, a high-temperature annealing and sterilization process is used. Therefore, the aluminum foil can safely come into contact with food and will not contain or facilitate the growth of bacteria.
  2. It is convenient to heat, and no harmful substances will be produced after heating. The high conductivity of aluminum foil minimizes the time and energy associated with food processing, refrigeration, and secondary heating. The aluminum foil lunch box container can be heated in a variety of ways, including the use of various ovens, ovens, steamers, steamers, and microwave ovens (must be used in the light wave and grill), and pressure cookers to heat food wrapped in aluminum foil.
  3. Easy to form, convenient to seal, and ensure food hygiene. The aluminum foil has good formability, and during the process of punching tableware, even in the folds and curling parts, cracks and breaks will not occur.
  4. With strong barrier properties, it can protect the original taste of food after sealing and prolong the shelf life of food. Although aluminum foil is thin, it has strong barrier properties, which can completely block light, gas, and other substances, improve freshness and protect moisture, and prevent the leakage or mixing of flavors, which can effectively maintain the original flavor and characteristics of the product.
  5. It can be recycled and reused efficiently, protect the environment and save resources. Aluminum has extremely high recyclability and recyclability, can be recycled and reused indefinitely, has a limited quality loss, and can maintain its original characteristics.
  6. Good decorative characteristics, highlighting product differences and grades. Aluminum foil has a bright metallic luster and is compatible with all printing technologies, thus allowing designers to use their imaginations to design unique patterns and brand logos.
  7. The production and supply capacity of aluminum foil has been improved, providing strong support for the expansion of applications. China is already a big country in the production of aluminum and aluminum foil. After large-scale investment in recent years, the production and processing technology and equipment of aluminum foil have reached a world-class level, and the product quality has also reached an international advanced level.

Get a Free Quote

Aluminium Container Making Machine Price – YG Machinery Manufacturer

YG aluminium container making machine has been sold to the United States, Pakistan, India, Algeria, Russia, Egypt, and other countries. At present, we have received many praises. Our aluminum foil lunch box production line is very efficient, the machine is stable, and the loss rate is very low. It has been put into production, if you also want to know about the machine, please contact us. In addition, we also have lunch boxes making machines, disposable cup making machines, garbage making machines, paper bag making machines, tissue making machines, corrugated paper machines, wet wipes machines, balloon making machines, condom making machines, shoe cover making machines, surgical cap making machines, disposable slipper machines, glove making machines, face mask making machines, etc. Contact us now!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
